Introduction

1.1

Epsilon EP Drive

The Epsilon EP drive is a stand-alone, fully digital brushless servo drive designed and built to reliably provide high
performance and flexibility without sacrificing ease of use.
The use of State-Space algorithms make tuning very simple and forgiving. The drives are designed to operate with up to a
10:1 inertia mismatch right out of the box. Higher (50:1 and more) inertial mismatches are possible with two simple parameter
settings.
The Epsilon EP drive can be quickly configured to many applications in less than 5 minutes with PowerTools Pro software on
a PC running Windows® 98, 2000, XP (32-bit) or Vista (32-bit).
Complete diagnostics are provided for quick troubleshooting. A diagnostic display on the front of the drive informs the user of
the operational or fault status. The last 10 faults are stored in non-volatile memory along with a time stamp for easy recall.
Serial
Connectors (J2)
Sync Input Connector (J10)
Analog/Sync Output
Connector (J5)

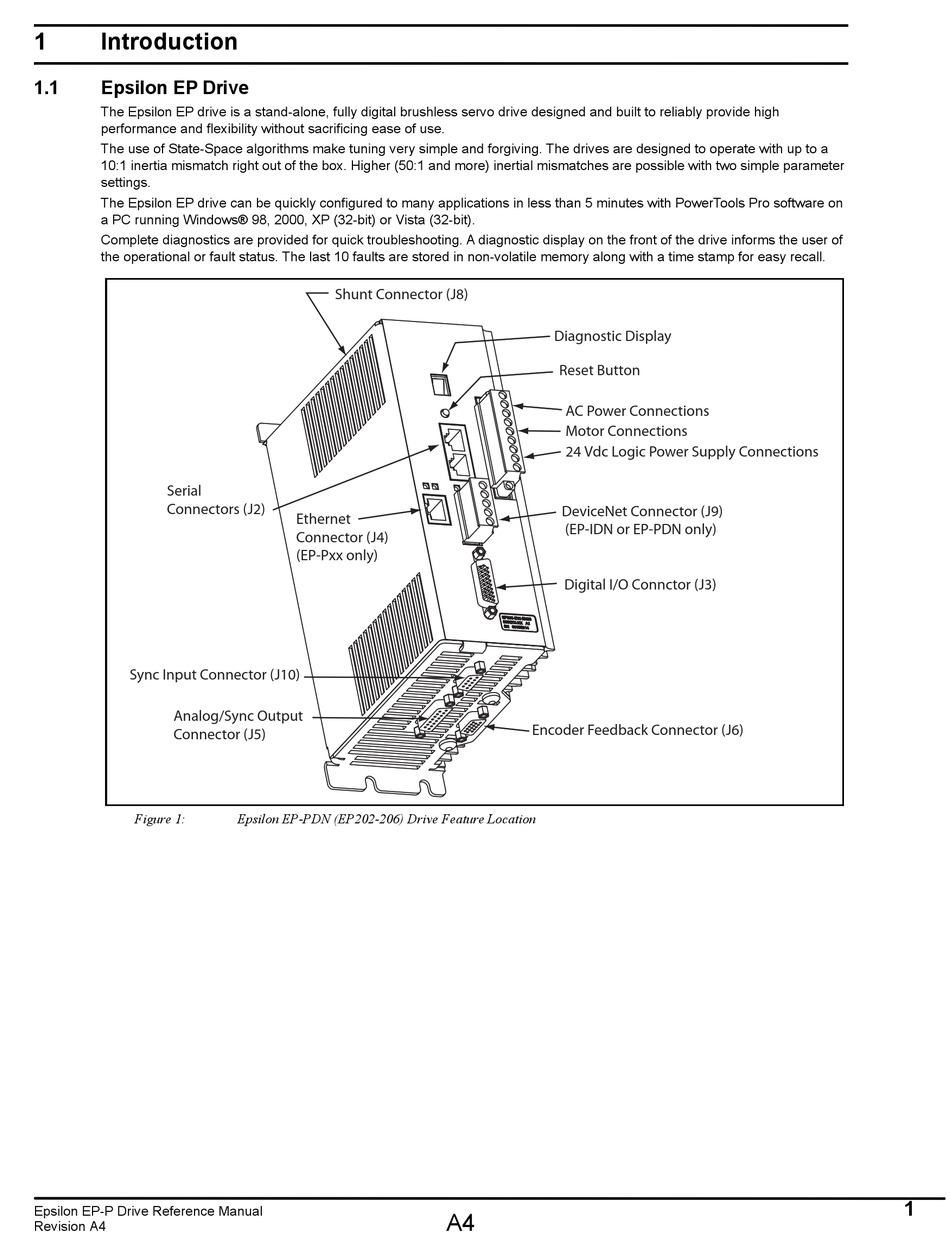

Figure 1:
Epsilon EP-P Drive Reference Manual
Revision A4
Shunt Connector (J8)
Ethernet
Connector (J4)
(EP-Pxx only)
Epsilon EP-PDN (EP202-206) Drive Feature Location
Diagnostic Display
Reset Button
AC Power Connections
Motor Connections
24 Vdc Logic Power Supply Connections
DeviceNet Connector (J9)
(EP-IDN or EP-PDN only)
Digital I/O Connctor (J3)
Encoder Feedback Connector (J6)
