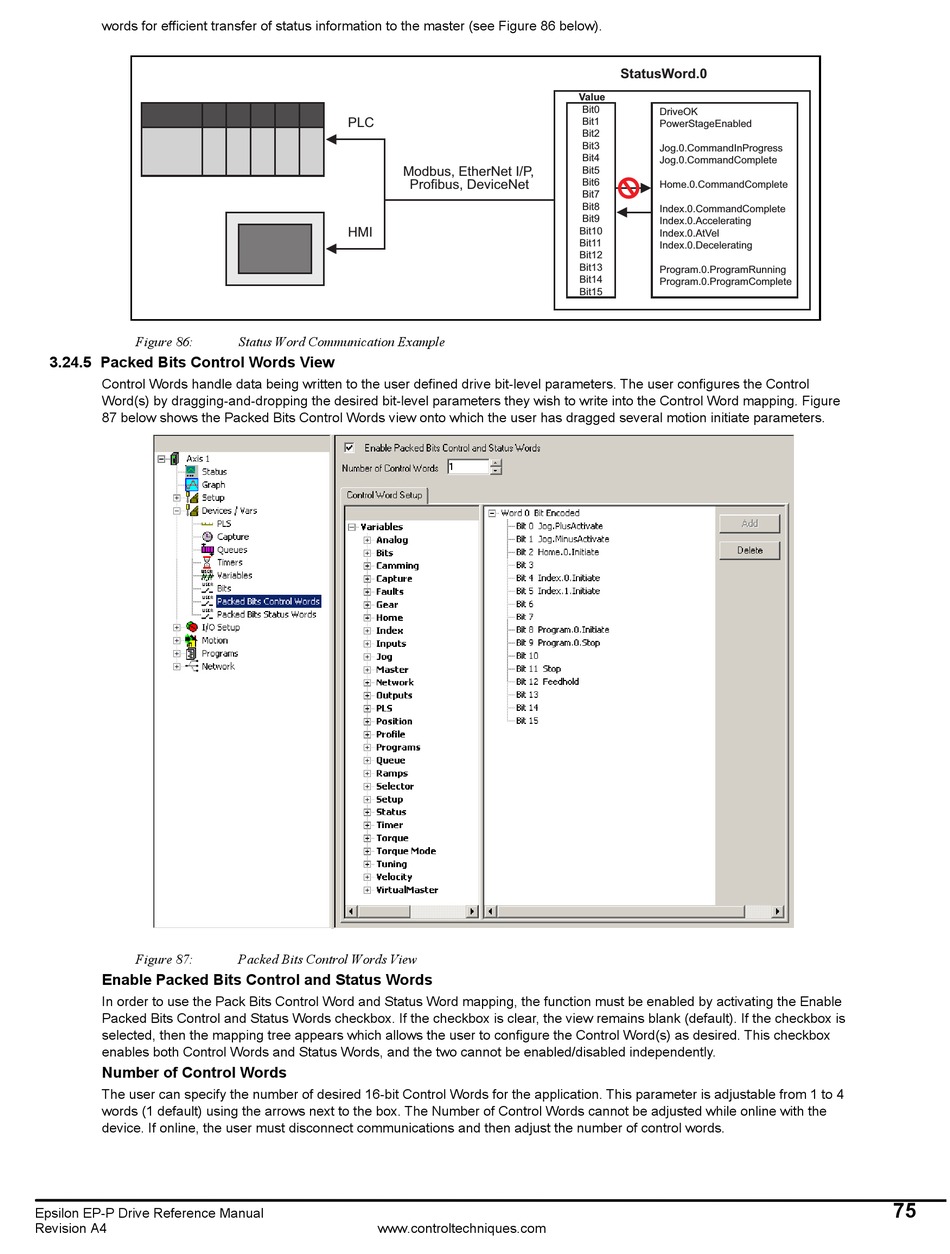

words for efficient transfer of status information to the master (see Figure 86 below).
Figure 86:

3.24.5 Packed Bits Control Words View

Control Words handle data being written to the user defined drive bit-level parameters. The user configures the Control
Word(s) by dragging-and-dropping the desired bit-level parameters they wish to write into the Control Word mapping. Figure
87 below shows the Packed Bits Control Words view onto which the user has dragged several motion initiate parameters.
Figure 87:
Enable Packed Bits Control and Status Words
In order to use the Pack Bits Control Word and Status Word mapping, the function must be enabled by activating the Enable
Packed Bits Control and Status Words checkbox. If the checkbox is clear, the view remains blank (default). If the checkbox is
selected, then the mapping tree appears which allows the user to configure the Control Word(s) as desired. This checkbox
enables both Control Words and Status Words, and the two cannot be enabled/disabled independently.
Number of Control Words
The user can specify the number of desired 16-bit Control Words for the application. This parameter is adjustable from 1 to 4
words (1 default) using the arrows next to the box. The Number of Control Words cannot be adjusted while online with the
device. If online, the user must disconnect communications and then adjust the number of control words.
Epsilon EP-P Drive Reference Manual
Revision A4
PLC
Modbus, EtherNet I/P,
Profibus, DeviceNet
HMI
Status Word Communication Example
Packed Bits Control Words View
www.controltechniques.com
StatusWord.0
Value
Bit0
DriveOK
Bit1
PowerStageEnabled
Bit2
Bit3
Jog.0.CommandInProgress
Bit4
Jog.0.CommandComplete
Bit5
Bit6
Home.0.CommandComplete
Bit7
Bit8
Index.0.CommandComplete
Bit9
Index.0.Accelerating
Bit10
Index.0.AtVel
Bit11
Index.0.Decelerating
Bit12
Bit13
Program.0.ProgramRunning
Bit14
Program.0.ProgramComplete
Bit15
75
