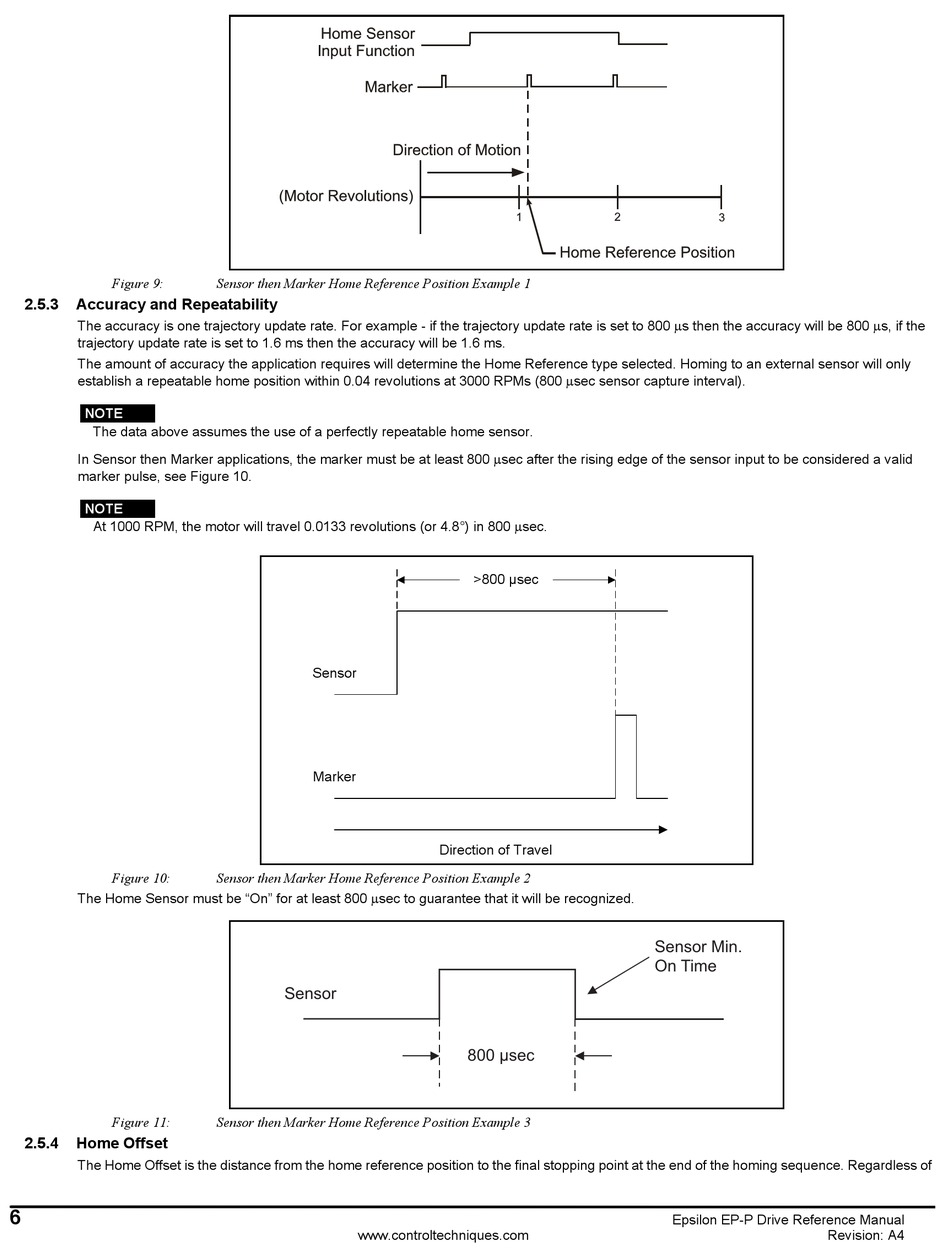

Figure 9:
2.5.3

Accuracy and Repeatability

The accuracy is one trajectory update rate. For example - if the trajectory update rate is set to 800 s then the accuracy will be 800 s, if the
trajectory update rate is set to 1.6 ms then the accuracy will be 1.6 ms.
The amount of accuracy the application requires will determine the Home Reference type selected. Homing to an external sensor will only
establish a repeatable home position within 0.04 revolutions at 3000 RPMs (800 sec sensor capture interval).
NOTE
The data above assumes the use of a perfectly repeatable home sensor.
In Sensor then Marker applications, the marker must be at least 800 sec after the rising edge of the sensor input to be considered a valid
marker pulse, see Figure 10.
NOTE
At 1000 RPM, the motor will travel 0.0133 revolutions (or 4.8°) in 800 sec.
Figure 10:
The Home Sensor must be "On" for at least 800 sec to guarantee that it will be recognized.
Figure 11:
2.5.4

Home Offset

The Home Offset is the distance from the home reference position to the final stopping point at the end of the homing sequence. Regardless of
6
Sensor then Marker Home Reference Position Example 1
Sensor
Marker
Sensor then Marker Home Reference Position Example 2
Sensor
Sensor then Marker Home Reference Position Example 3
www.controltechniques.com
>800 µsec
Direction of Travel
800 μsec
Sensor Min.
On Time
Epsilon EP-P Drive Reference Manual
Revision: A4
