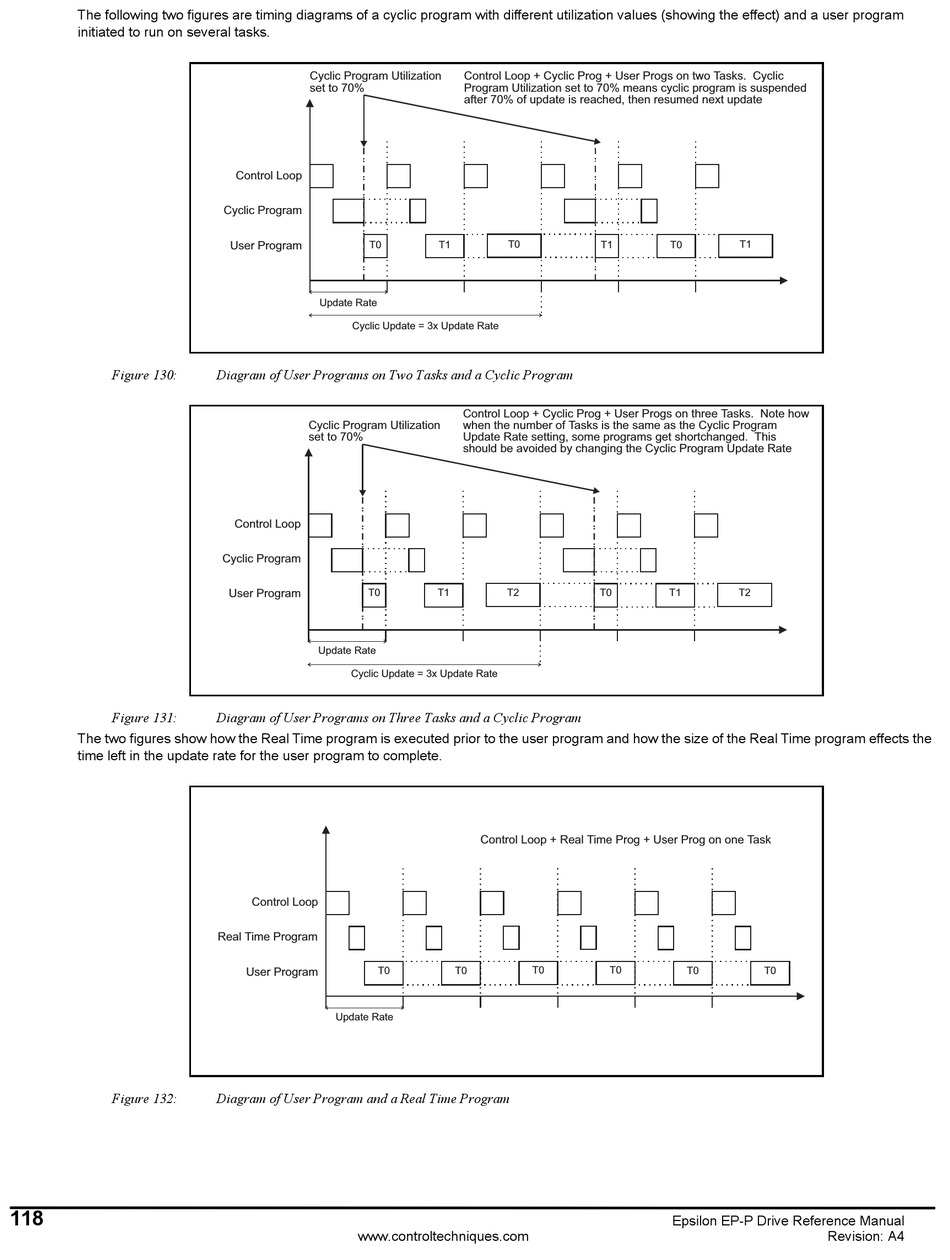

The following two figures are timing diagrams of a cyclic program with different utilization values (showing the effect) and a user program
initiated to run on several tasks.
Figure 130:
Figure 131:
The two figures show how the Real Time program is executed prior to the user program and how the size of the Real Time program effects the
time left in the update rate for the user program to complete.
Figure 132:
118
Cyclic Program Utilization
set to 70%
Control Loop
Cyclic Program
T0
User Program
Update Rate
Cyclic Update = 3x Update Rate
Diagram of User Programs on Two Tasks and a Cyclic Program
Cyclic Program Utilization
set to 70%
Control Loop
Cyclic Program
T0
User Program
Update Rate
Cyclic Update = 3x Update Rate
Diagram of User Programs on Three Tasks and a Cyclic Program
Control Loop
Real Time Program
T0
User Program
Update Rate
Diagram of User Program and a Real Time Program
