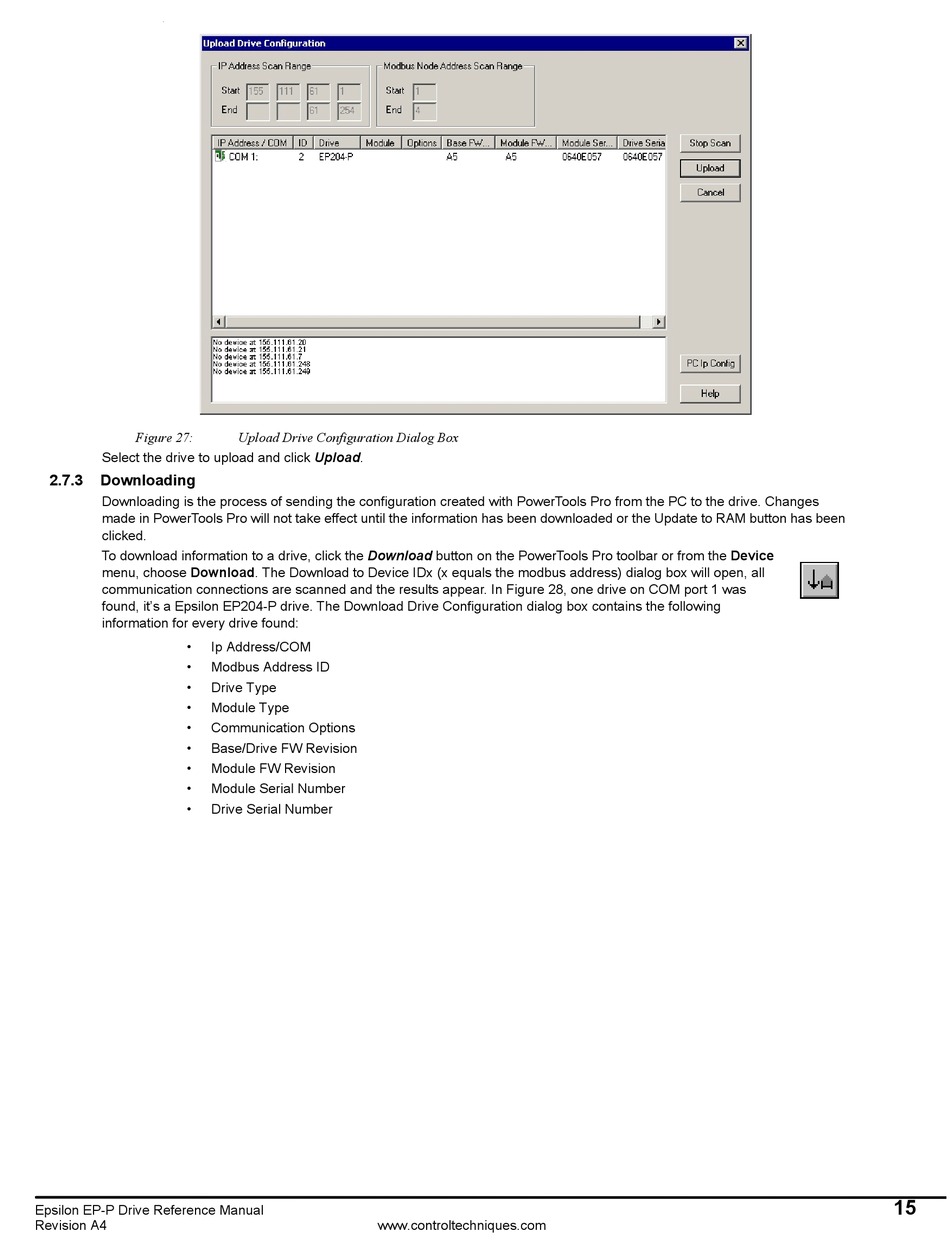

Figure 27:
Select the drive to upload and click Upload.
2.7.3

Downloading

Downloading is the process of sending the configuration created with PowerTools Pro from the PC to the drive. Changes
made in PowerTools Pro will not take effect until the information has been downloaded or the Update to RAM button has been
clicked.
To download information to a drive, click the Download button on the PowerTools Pro toolbar or from the Device
menu, choose Download. The Download to Device IDx (x equals the modbus address) dialog box will open, all
communication connections are scanned and the results appear. In Figure 28, one drive on COM port 1 was
found, it's a Epsilon EP204-P drive. The Download Drive Configuration dialog box contains the following
information for every drive found:
• Ip Address/COM
• Modbus Address ID
• Drive Type
• Module Type
• Communication Options
• Base/Drive FW Revision
• Module FW Revision
• Module Serial Number
• Drive Serial Number
Epsilon EP-P Drive Reference Manual
Revision A4
Upload Drive Configuration Dialog Box
