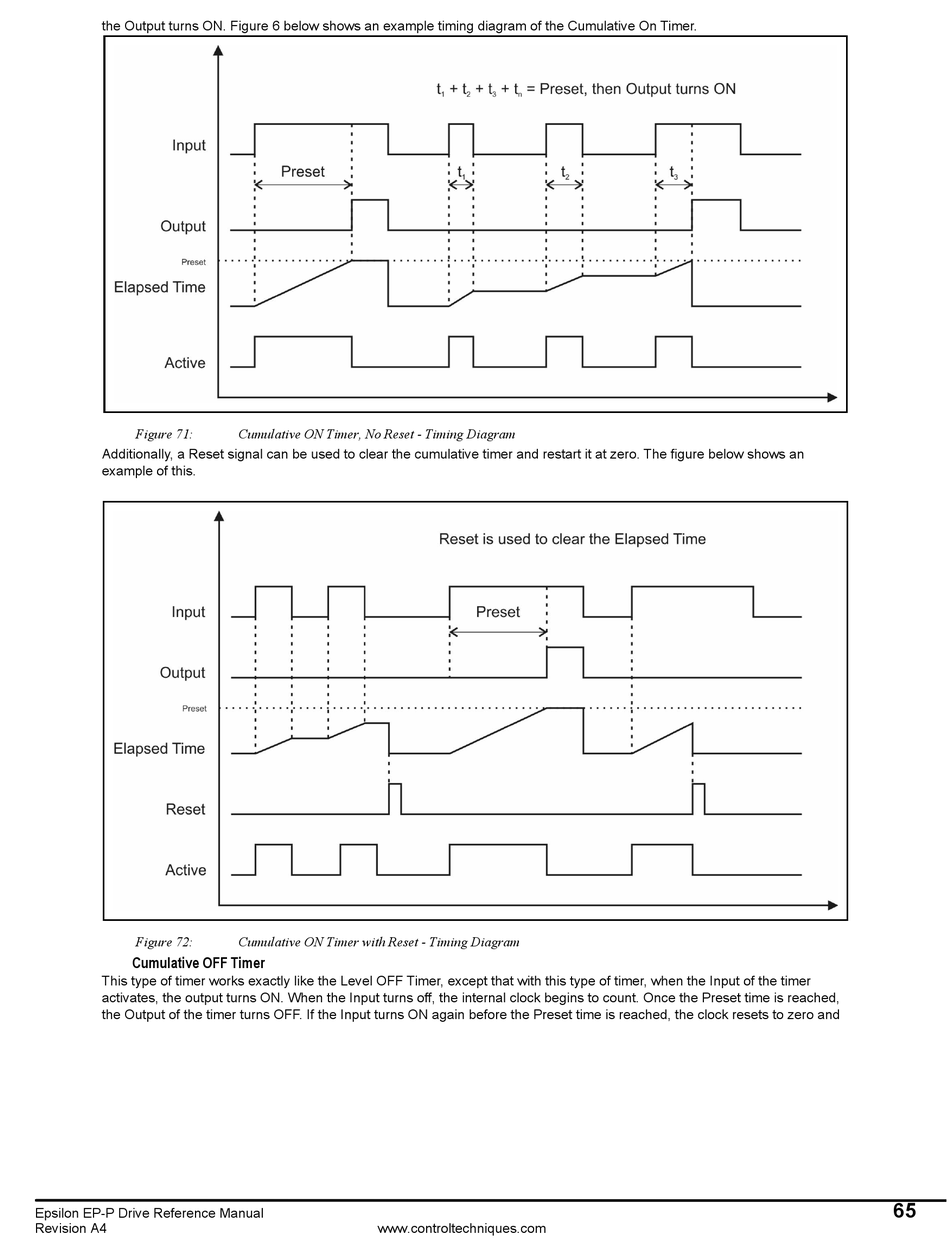

the Output turns ON. Figure 6 below shows an example timing diagram of the Cumulative On Timer.
Figure 71:
Additionally, a Reset signal can be used to clear the cumulative timer and restart it at zero. The figure below shows an
example of this.
Figure 72:
Cumulative OFF Timer
This type of timer works exactly like the Level OFF Timer, except that with this type of timer, when the Input of the timer
activates, the output turns ON. When the Input turns off, the internal clock begins to count. Once the Preset time is reached,
the Output of the timer turns OFF. If the Input turns ON again before the Preset time is reached, the clock resets to zero and
Epsilon EP-P Drive Reference Manual
Revision A4
Cumulative ON Timer, No Reset - Timing Diagram
Cumulative ON Timer with Reset - Timing Diagram
