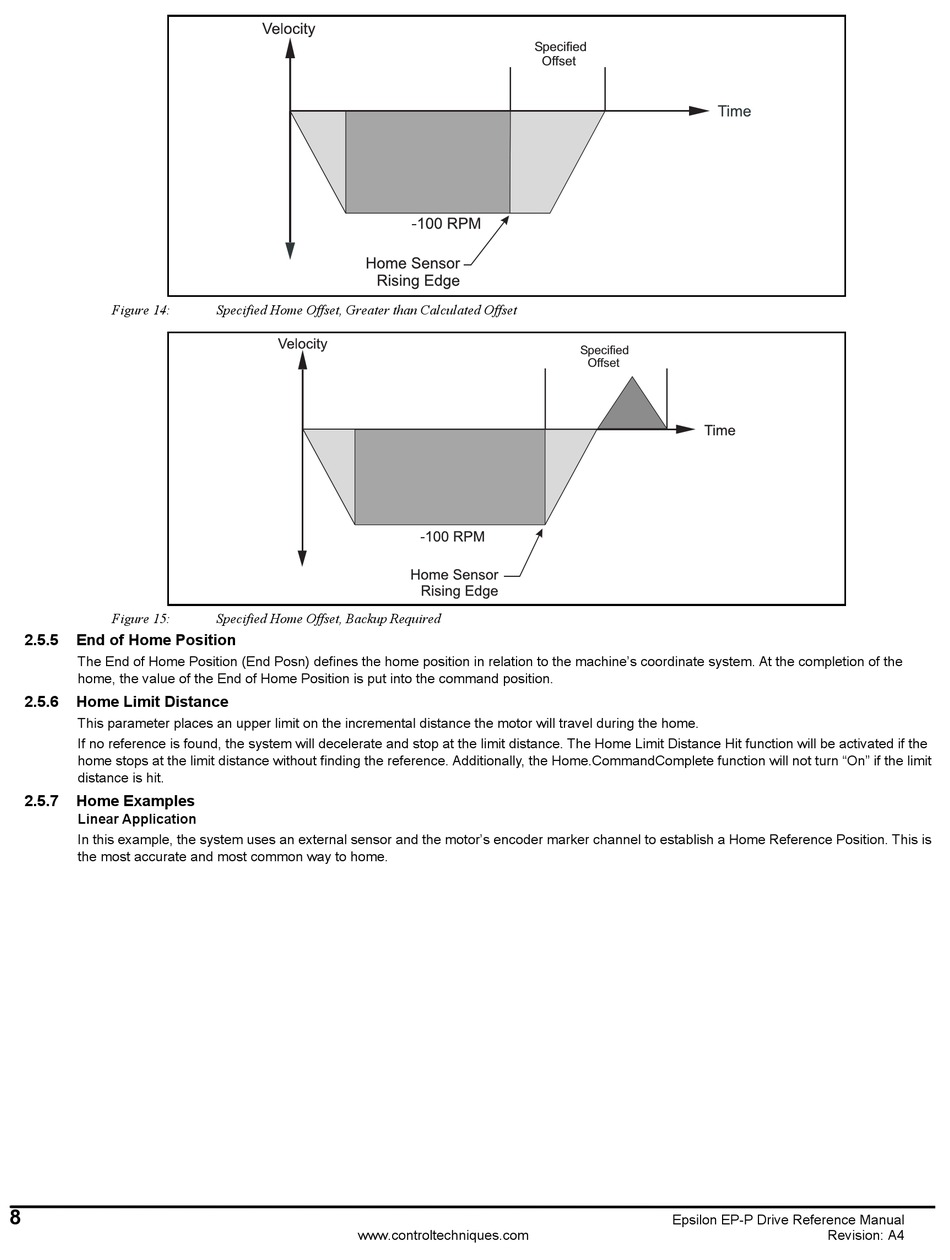

Figure 14:
Figure 15:
2.5.5

End of Home Position

The End of Home Position (End Posn) defines the home position in relation to the machine's coordinate system. At the completion of the
home, the value of the End of Home Position is put into the command position.
2.5.6

Home Limit Distance

This parameter places an upper limit on the incremental distance the motor will travel during the home.
If no reference is found, the system will decelerate and stop at the limit distance. The Home Limit Distance Hit function will be activated if the
home stops at the limit distance without finding the reference. Additionally, the Home.CommandComplete function will not turn "On" if the limit
distance is hit.
2.5.7

Home Examples

Linear Application
In this example, the system uses an external sensor and the motor's encoder marker channel to establish a Home Reference Position. This is
the most accurate and most common way to home.
8
Specified Home Offset, Greater than Calculated Offset
Specified Home Offset, Backup Required
www.controltechniques.com
Specified
Offset
Specified
Offset
Epsilon EP-P Drive Reference Manual
Revision: A4
