Figure 89:

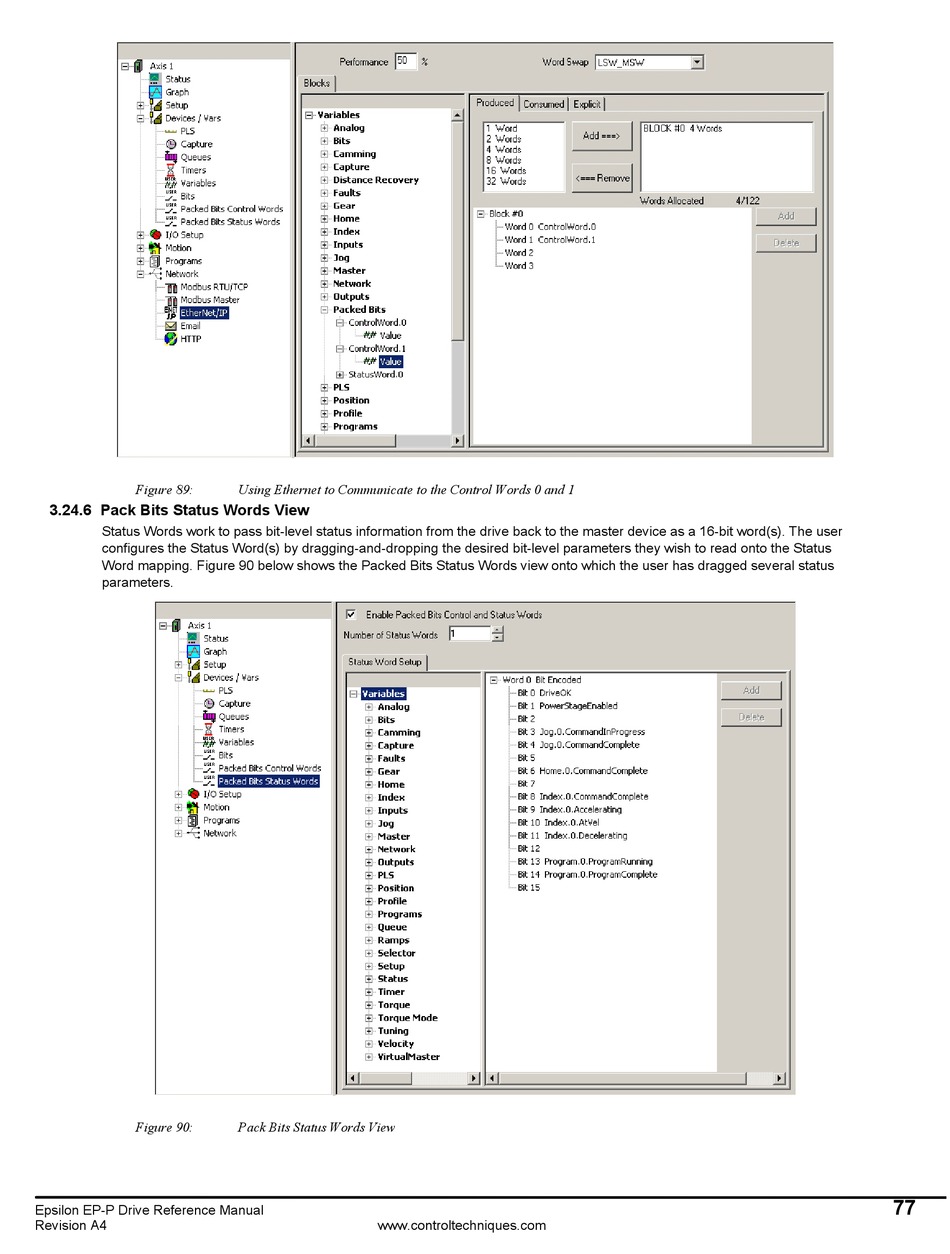

3.24.6 Pack Bits Status Words View

Status Words work to pass bit-level status information from the drive back to the master device as a 16-bit word(s). The user
configures the Status Word(s) by dragging-and-dropping the desired bit-level parameters they wish to read onto the Status
Word mapping. Figure 90 below shows the Packed Bits Status Words view onto which the user has dragged several status
parameters.
Figure 90:
Epsilon EP-P Drive Reference Manual
Revision A4
Using Ethernet to Communicate to the Control Words 0 and 1
Pack Bits Status Words View
