Comnet FVT1D11 Installation And Operation Manual

INSTALLATION AND OPERATION MANUAL
FVT/FVR1D1(M,S)1[/M]
FVR2D2(M,S)2
DIGITALLY ENCODED VIDEO WITH BI-DIRECTIONAL DATA
AND SIMPLEX CONTACT CLOSURE

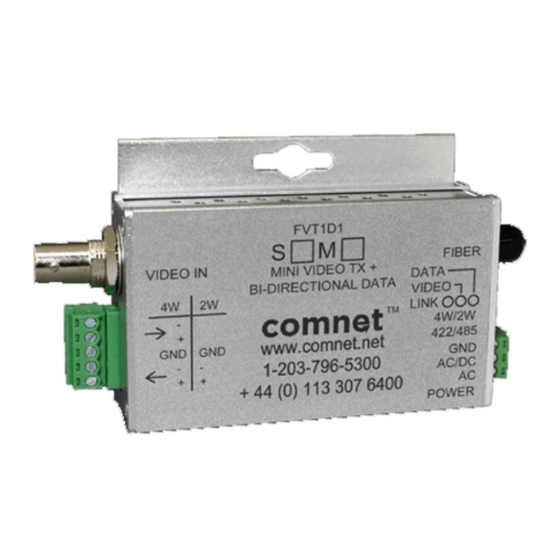

The ComNet™ FVT1D1[/M] video transmitter, along with the FVR1D1 and FVR2D2,
supports the transmission of digital video transmission and bi-directional RS422 or
2- or 4-wire RS485 data channel over multimode or single mode optical fiber(s).
When the unit is operated in the RS422 2-wire data mode, a simplex contact closure
channel is available. This module is universally compatible with major CCTV camera
manufacturers. Plug-and-play design ensures ease of installation and no electrical or
optical adjustments are ever required.
Each unit incorporates a bi-color (Red/Green) indicating LED for monitoring proper
system operation. See Figure 9 on Page 6 for LED Indicator explanations.

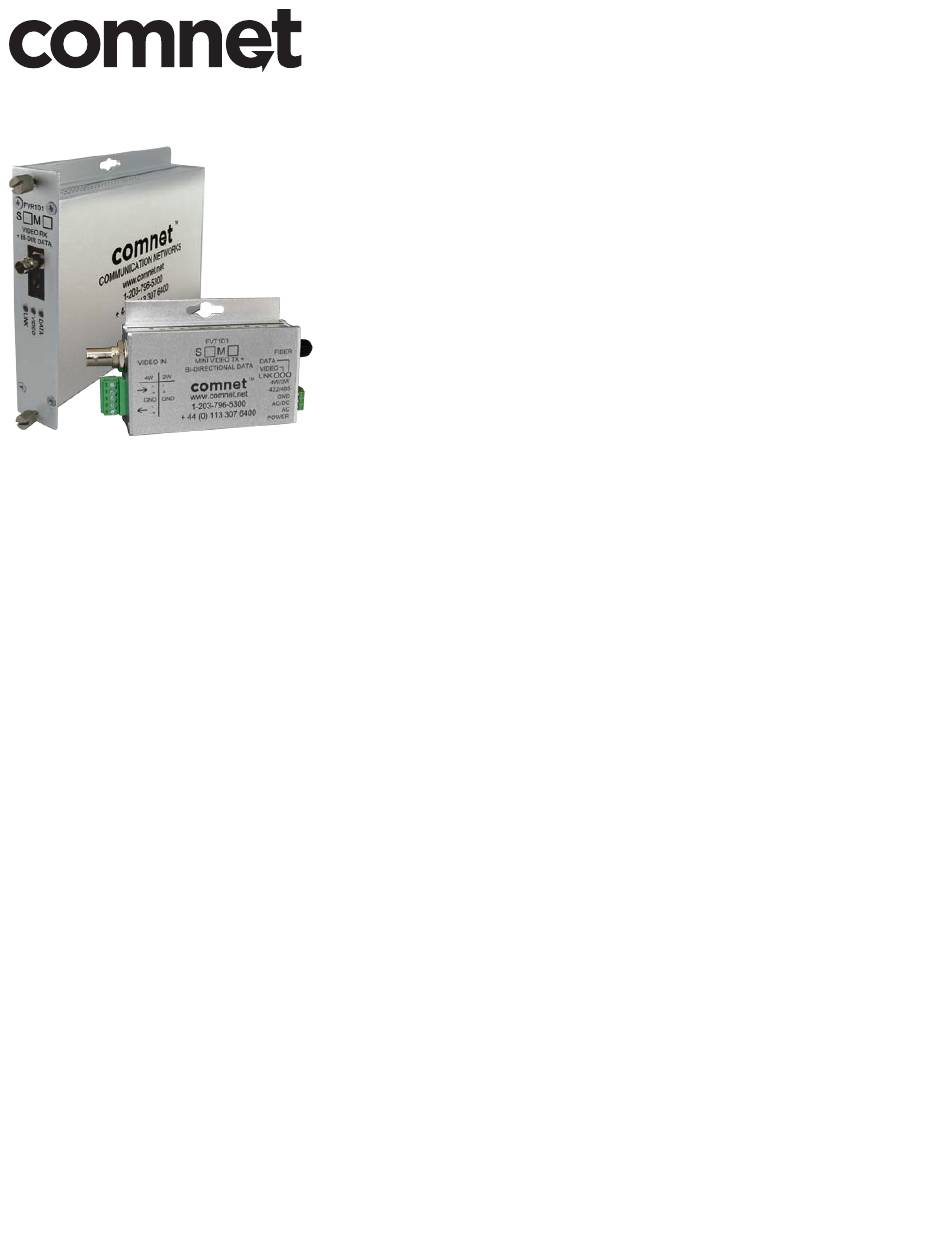

The ComFit units in this series may be directly plugged into the ComNet Rack
(Part C1) or may be either wall-mounted, rack-mounted, or DIN-rail mounted by
the addition of ComNet model DINBKT1 adaptor plate. The small-size FVT1D1/M
transmitters are ideal for locations where space is at a premium and are surface mount
only. See Figure A on Page 8 for mounting instructions.
See Figures 1 – 12 for complete installation details.
