tion is necessary, even though it is a USB port, since
the 928A uses an RS-232-to-USB Bridge technology
to create a virtual COM port. Otherwise, you should
only see the Mlink main window (next page) with a
green connection light. Normally, after you have first
seen the connection window in Figure 6, you will not
see this window again.

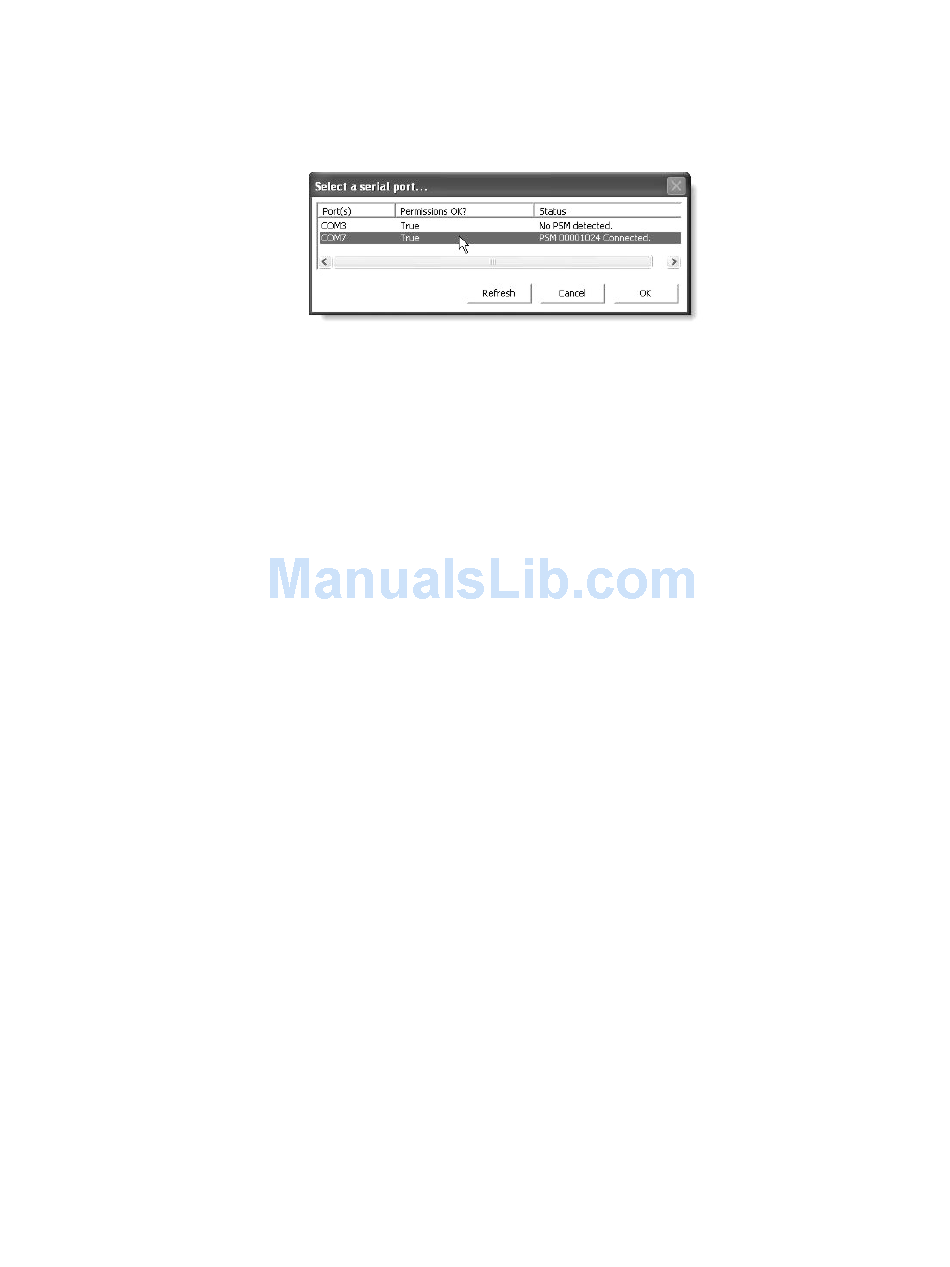

Figure 6: Mlink Connection Window
Connecting
1. To connect, select the desired COM port number
and click the OK button. A short delay may
occur for the OK button to become available.
2. If the port number does not appear, click the
Refresh button; another port should appear (e.g.
COM3). It may take a few seconds to appear.
Then, repeat step 1.
3. Under the Status column, it should indicate if
the 928A (PSM) is detected or not. The unit se-
rial number should appear - e.g. "PSM 00001109
Connected."
NOTE: If you do not see the correct COM port
in the connection window, you may need to do
the following:
4. Close Mlink and power cycle the 928A.
