Arbiter Systems 928A User Manual page 39

Current, Ch-A I
Current Configuration includes five items: CT Select,
Input Type, Input Ratio, Phase Offset and Low Range
Mode.

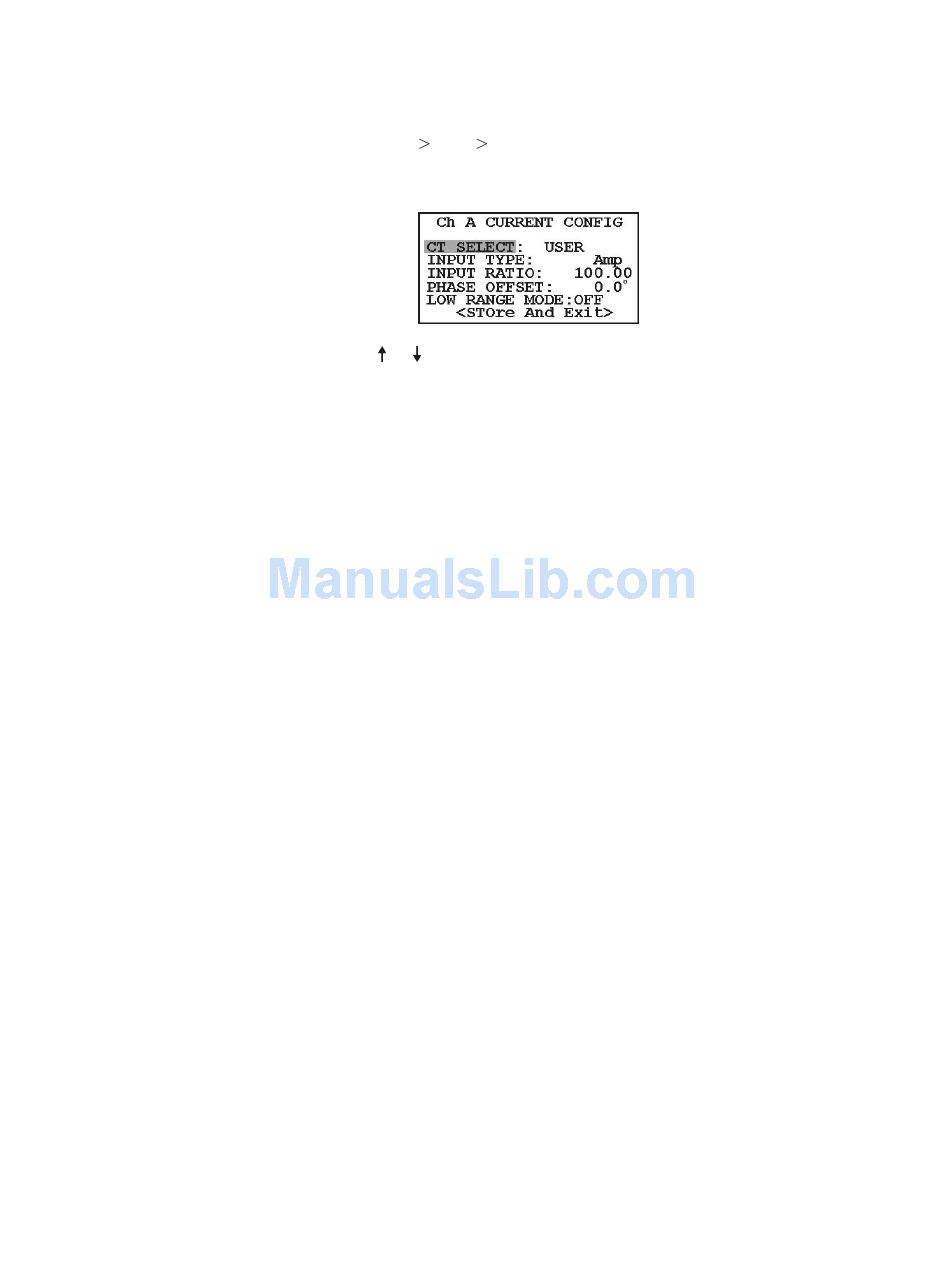

1. Open the Ch A CURRENT CONFIG screen.
Press VI 2nd
Ch-A I and press ENT. See also "Configuring
Channel A and B" on Page 23.
2. Use or , ENT, and the numeric keys to enter
the CT Select, Input Type, Input Ratio, Phase
Offset and Low Range Mode values as required.
CT Select
Selects either USER or M########, where:
ˆ M######## - selects a calibrated CT
serial number (e.g. M00001234)
ˆ USER - selects one user calibration con-
stant
M######## selects a 12-point characteriza-
tion set for the specified clamp-on CT, provided
by Arbiter Systems. Calibration constants are
obtained from Arbiter Systems and installed in
the 928A using Mlink software. See "CT Pro-
files" in the Mlink Software Tutorial, on page 72
for information on uploading CT profiles.
MENU, move the cursor to
25
