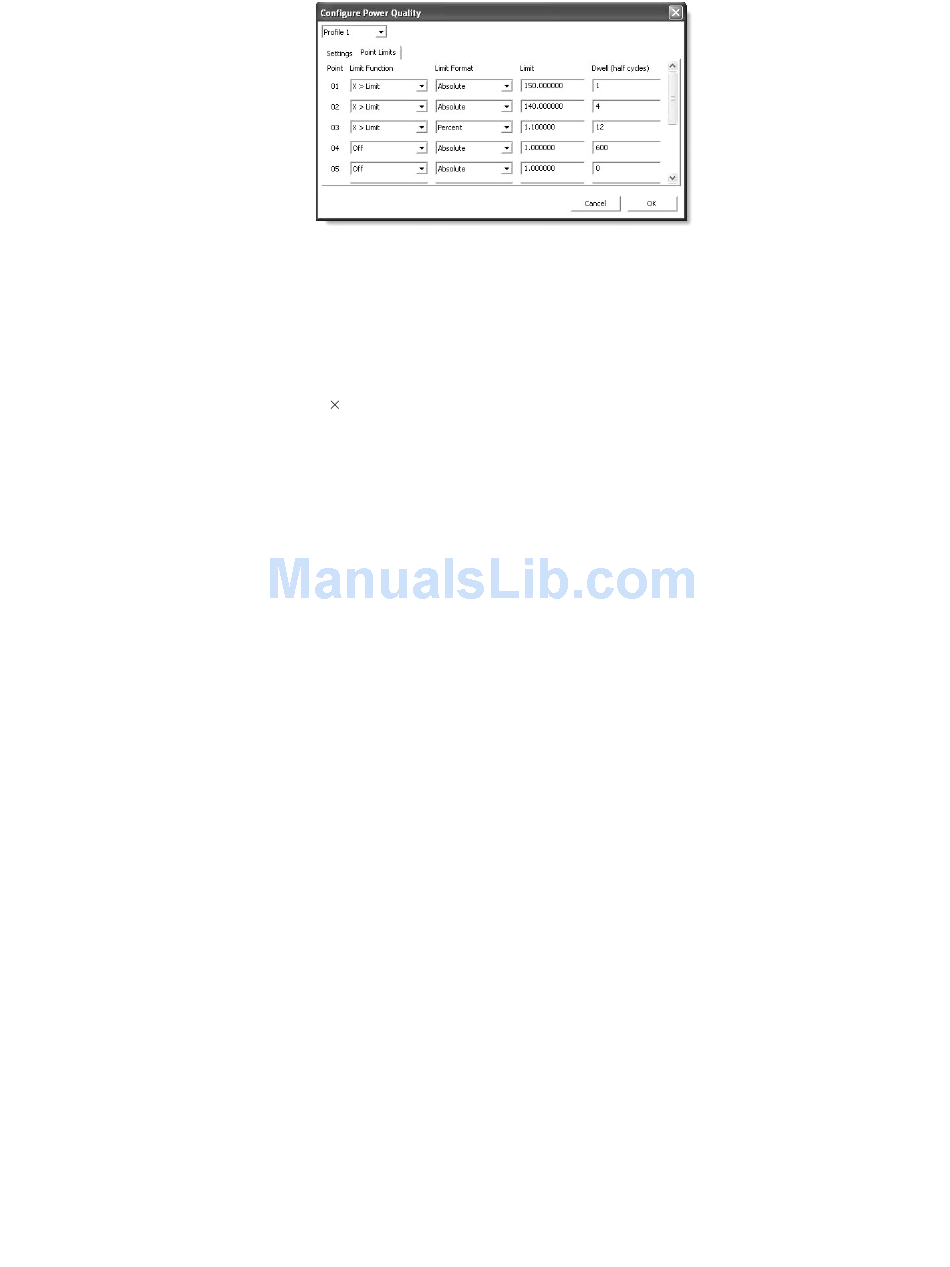

Figure 13: Power Quality Point Limits
Limit: sets the numerical value against which the
measured signal is compared: a floating point value.
For example, absolute: Limit = 132 volts; percent:
110% of 120 volts = 132, in the Point Limits screen,
1.1 120 = 132).
Dwell: during trigger condition, sets the number of
input signal half-cycles that must occur before
recording begins: an integer number.
Click OK to install PQ Profiles in the 928A, or Cancel
to quit without making any changes.
User Profile
One selection named USER is available with one Point
Limit that is only accessible from the 928A keypad.
See "Selecting PQ Profiles" on page 50, for information
on setting up the USER profile.
79
