Mlink Main Window

Located on the main screen are six basic function but-
tons as indicated in Figure 8. There are also several
important functions found under one menu item called
"Main". On the lower-right of the status bar there is a
connection light that strobes, notifying you of the con-
nection status. When finished, close Mlink by clicking
the Exit button.

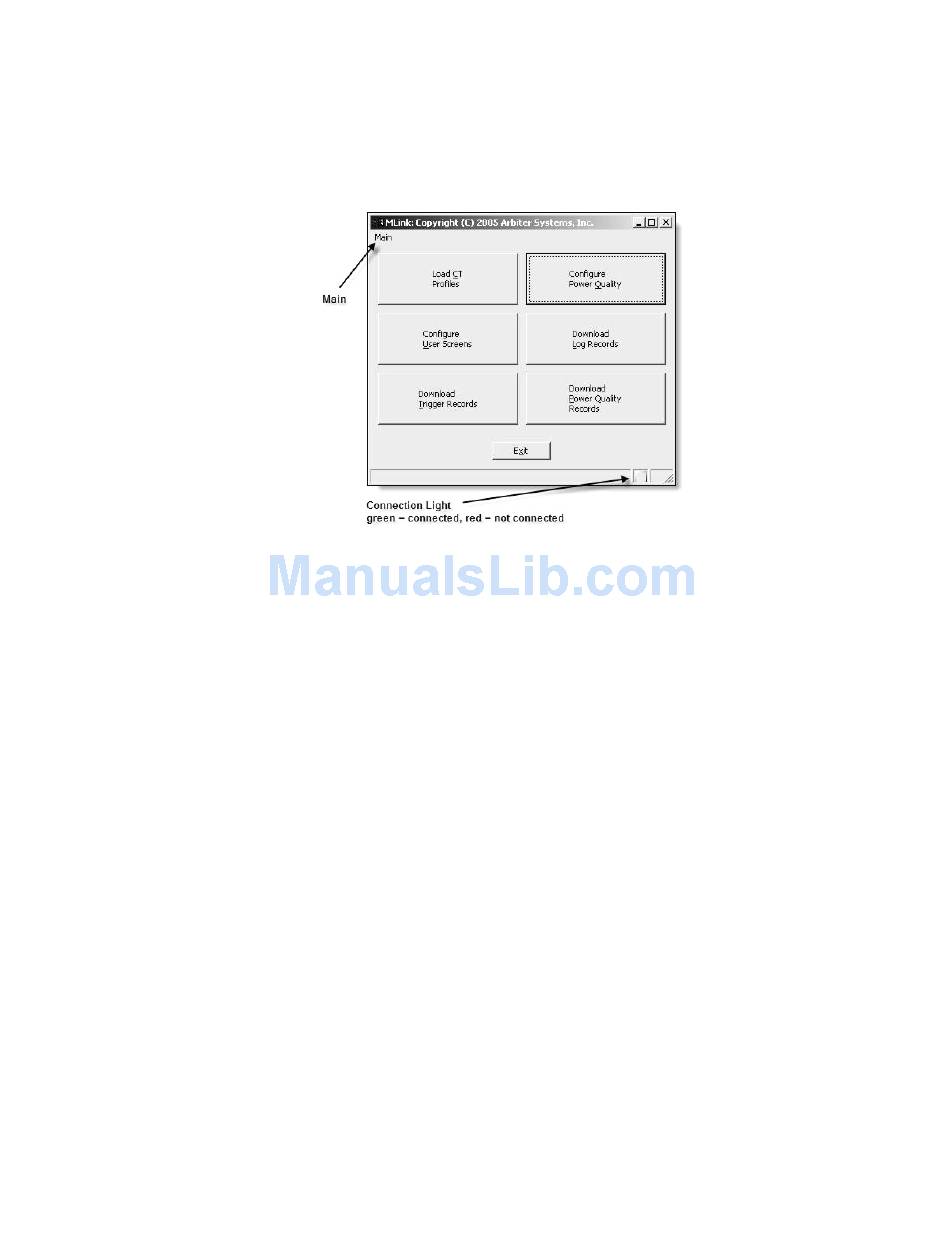

Figure 8: Mlink Main Window

Available Functions

From the Mlink main window, you have the following
functions: Load CT Profiles, Configure User Screens,
Download Trigger Records, Configure Power Quality,
Download Log Records and Download Power Quality
Records. Besides these, you can select the Main menu
to select select a port or upload new firmware.
