PF – Power Factor
To use the Power Factor and Apparent Power func-
tion on the 928A, you will need to select one of the
measurement channels for voltage and the other for
current. In this example, Channel A is selected as
voltage and Channel B as current.
Setup
1. Press 2nd AV to configure Channel A for volt-
age and press 2nd
for current.

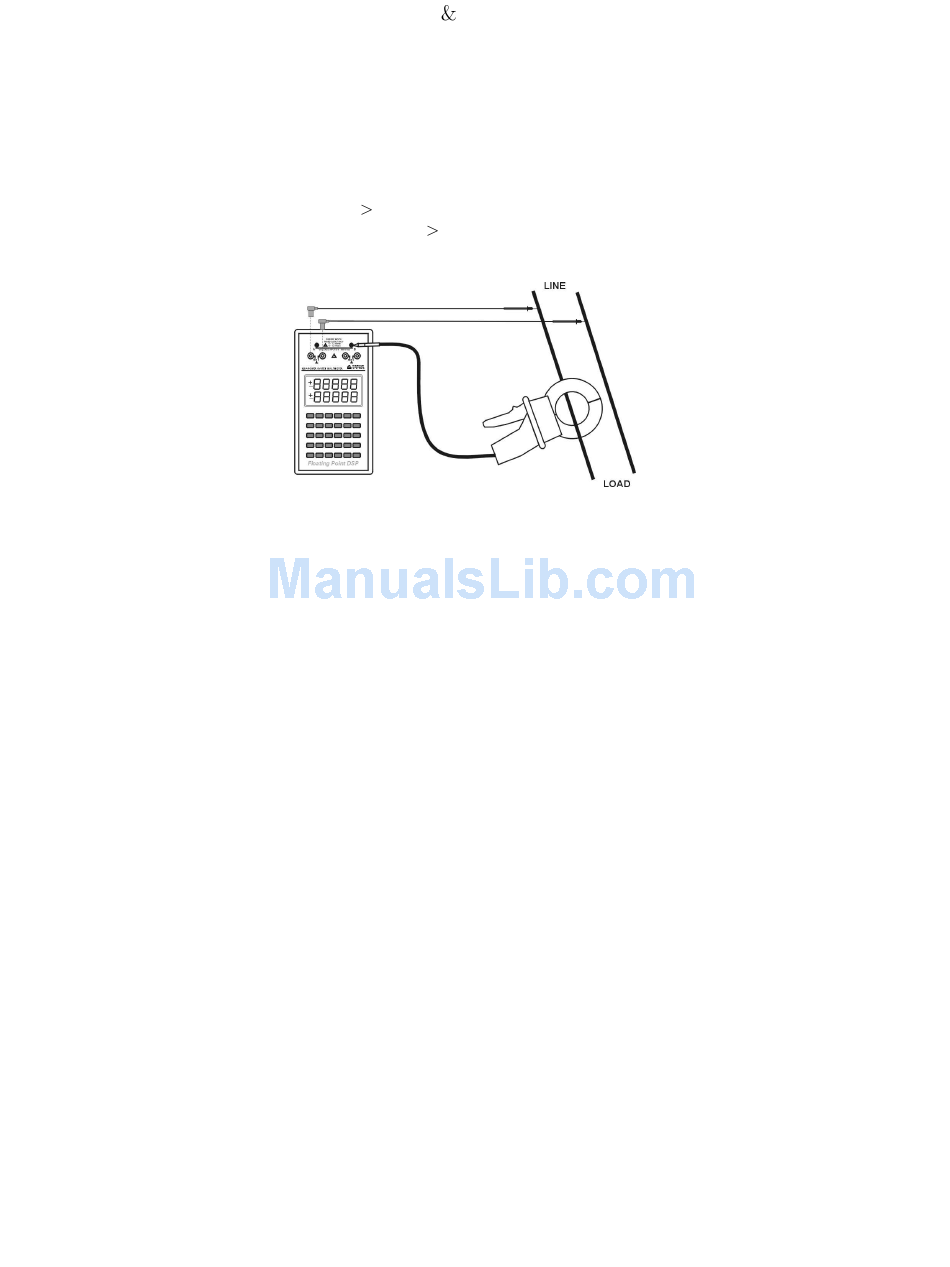

Note: in this figure, voltage probes are con-
nected to Channel A and CT connected to Chan-
nel B.
2. Press PF and connect the probes between the
928A and the circuit elements.
3. Read the display.
Apparent Power
BI to configure Channel B
