Electrical Installation
1
2
3
4
5

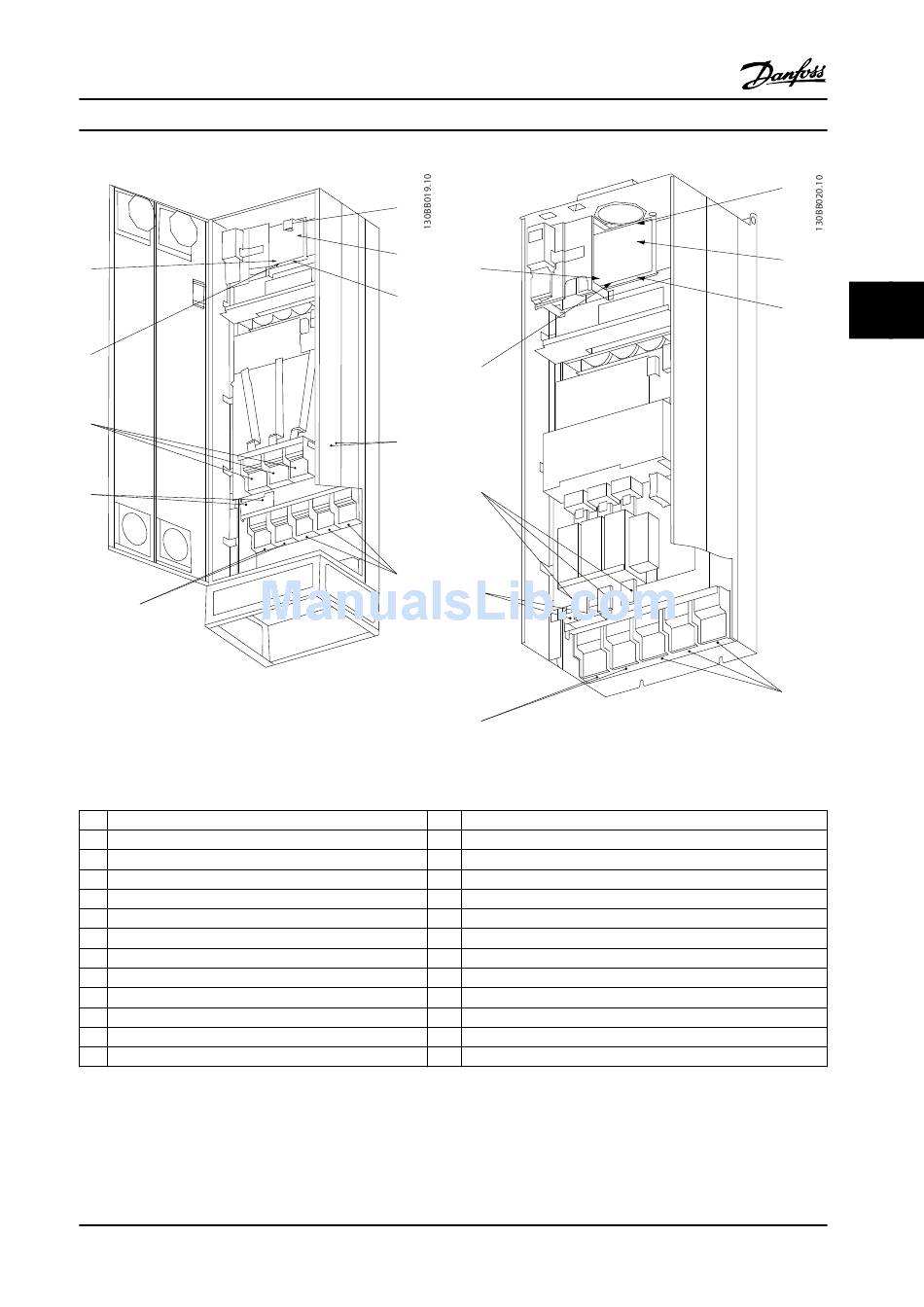

Figure 4.3 Compact IP21 (NEMA 1) and IP54 (NEMA 12)
Enclosure Type E1
1) AUX relay
01 02 03
04 05 06
2) Temp switch
106 104 105
3) Line power
R S T
91 92 93
L1 L2 L3
4) Brake
-R +R
81 82
Table 4.2 Legend to Figure 4.3 and Figure 4.4
MG11F522
Instruction Manual
6
7
1
8
2
9
3
10
4
5
Figure 4.4 Compact IP00 (Chassis) with Disconnect, Fuse and
RFI Filter, Enclosure Type E2
5) Load sharing
-DC
88
6) SMPS fuse (see Table 4.18 for part number)
7) Fan fuse (see Table 4.19 for part number)
8) AUX fan
100
L1
9) Line power ground
10) Motor
U
96
T1
