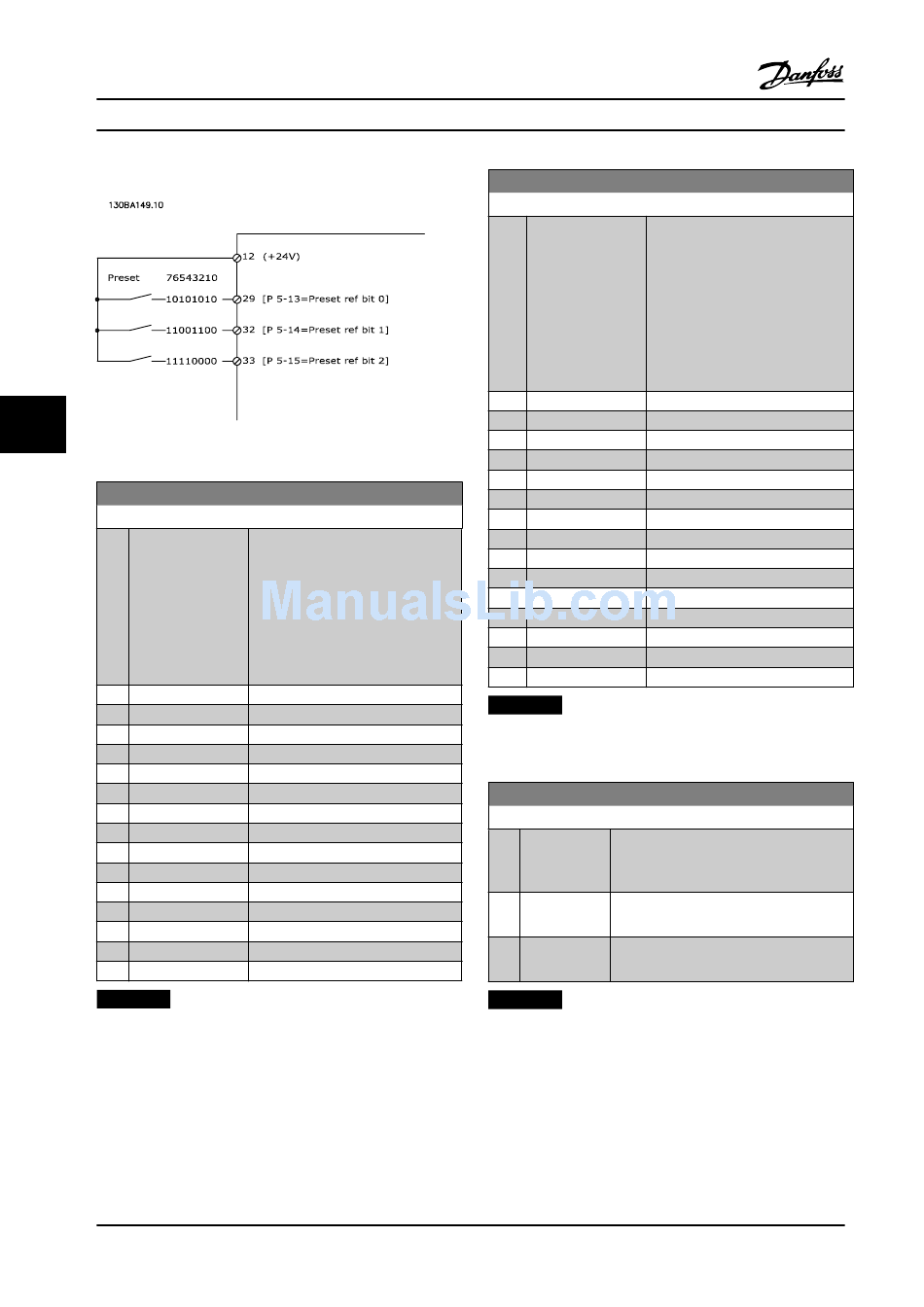

Danfoss VLT HVAC Drive FC 102 Instruction Manual page 94

315–1400 kw
Hide thumbs Also See for VLT HVAC Drive FC 102:
Table of Contents

Advertisement

How to Program
6
6
Figure 6.11
3-15 Reference 1 Source
Option:
[0]
No function
[1]
Analog Input 53
*
[2]
Analog Input 54
[7]
Pulse input 29
[8]
Pulse input 33
[20] Digital pot.meter
[21] Analog input X30/11
[22] Analog input X30/12
[23] Analog Input X42/1
[24] Analog Input X42/3
[25] Analog Input X42/5
[29] Analog Input X48/2
[30] Ext. Closed-loop 1
[31] Ext. Closed-loop 2
[32] Ext. Closed-loop 3
NOTICE!
This parameter cannot be adjusted while the motor is
running.
92
®
VLT
HVAC Drive FC 102
Function:
Select the reference input to be used
for the first reference signal.
Parameter 3-15 Reference 1 Source,
parameter 3-16 Reference 2 Source and
parameter 3-17 Reference 3 Source
define up to three different reference
signals. The sum of these reference
signals defines the actual reference.
Danfoss A/S © 08/2014 All rights reserved.
3-16 Reference 2 Source
Option:
Function:
Select the reference input to be
used for the second reference signal.
parameter 3-15 Reference 1 Source,
parameter 3-16 Reference 2 Source
and parameter 3-17 Reference 3
Source define up to three different
reference signals. The sum of these
reference signals defines the actual
reference.
[0]
No function
[1]
Analog Input 53
[2]
Analog Input 54
[7]
Pulse input 29
[8]
Pulse input 33
[20]
Digital pot.meter
*
[21]
Analog input X30/11
[22]
Analog input X30/12
[23]
Analog Input X42/1
[24]
Analog Input X42/3
[25]
Analog Input X42/5
[29]
Analog Input X48/2
[30]
Ext. Closed-loop 1
[31]
Ext. Closed-loop 2
[32]
Ext. Closed-loop 3
NOTICE!
This parameter cannot be adjusted while the motor is
running.
4-10 Motor Speed Direction
Option:
Function:
Selects the motor speed direction required.
Use this parameter to prevent unwanted
reversing.
[0]
Clockwise
Only operation in clockwise direction is
allowed.
[2]
Both directions Operation in both clockwise and counter-
*
clockwise direction is allowed.
NOTICE!
The setting in parameter 4-10 Motor Speed Direction has
impact on the flying start in parameter 1-73 Flying Start.
MG11F522
