Mechanical Installation

3.3.4 Terminal Locations - Enclosure type F

NOTICE!
3
3
The F enclosures are available in four different sizes, F1, F2, F3 and F4. The F1 and F2 consist of an inverter cabinet on
the right and rectifier cabinet on the left. The F3 and F4 have an extra options cabinet left of the rectifier cabinet. The
F3 is an F1 with an extra options cabinet. The F4 is an F2 with an extra options cabinet.
Terminal locations - enclosure types F1 and F3
1
Ground bar
2
Motor terminals
3
Brake terminals

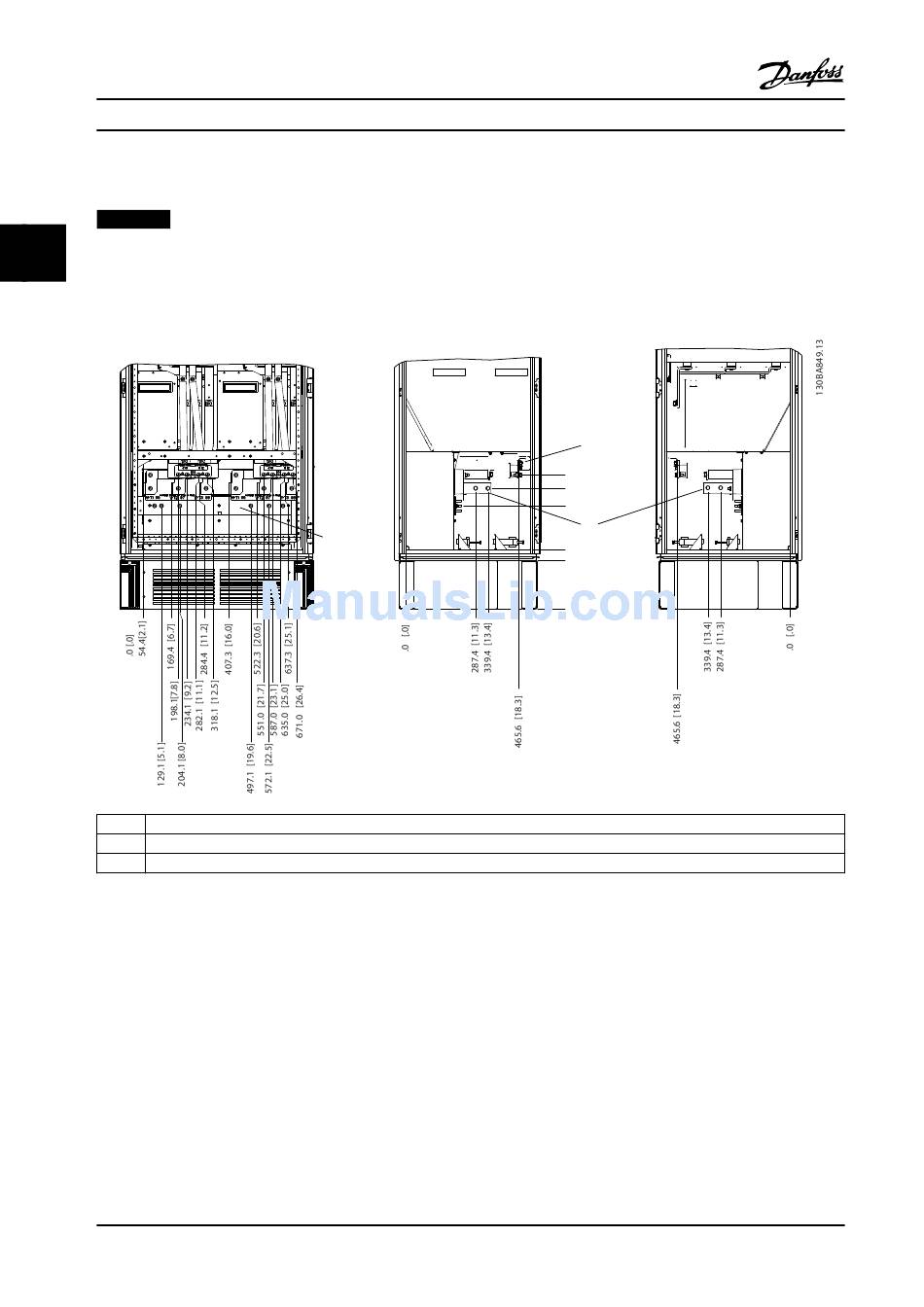

Figure 3.24 Terminal Locations - Inverter Cabinet - F1 and F3 (Front, Left and Right Side View). The Connector Plate is 42 mm (1.65
in) below .0 level.
24
®
VLT
HVAC Drive FC 102
1
Danfoss A/S © 08/2014 All rights reserved.
2
308.3 [12.1]
253.1 [10.0]
180.3 [7.1]
3
.0 [.0]
44.40 [1.75]
244.40 [9.62]
MG11F522
