5 How to Operate the Adjustable Frequency Drive

5.1 Operating with LCP

5.1.1 Three Ways of Operating

The adjustable frequency drive can be operated in 3
ways:
5 5 •
Graphical local control panel (GLCP).
•
Numeric local control panel (NLCP).
•
RS-485 serial communication or USB, both for PC
connection.
If the adjustable frequency drive is fitted with serial
communication option option, refer to the relevant
documentation.
5.1.2 How to Operate the Graphical LCP
(GLCP)
The following instructions are valid for the GLCP (LCP 102).
The GLCP is divided into four functional groups:
1. Graphical display with status lines.
2. Menu keys and indicator lights (LEDs) - selecting
mode, changing parameters and switching
between display functions.
3. Navigation keys and LEDs (LEDs).
4. Operation keys and LEDs.
Graphical display
The LCD display is backlit with a total of six alpha-numeric
lines. All data is displayed on the LCP which can show up
to five operating variables while in [Status] mode.
Display lines:
a. Status line
Status messages displaying icons and graphics.
b. Line 1–2
Operator data lines displaying data and variables
defined or selected by the user. Press [Status] to
add one extra line.
c. Status line
Status messages displaying text.
66
®
VLT HVAC Drive FC 102
1
2
3
4

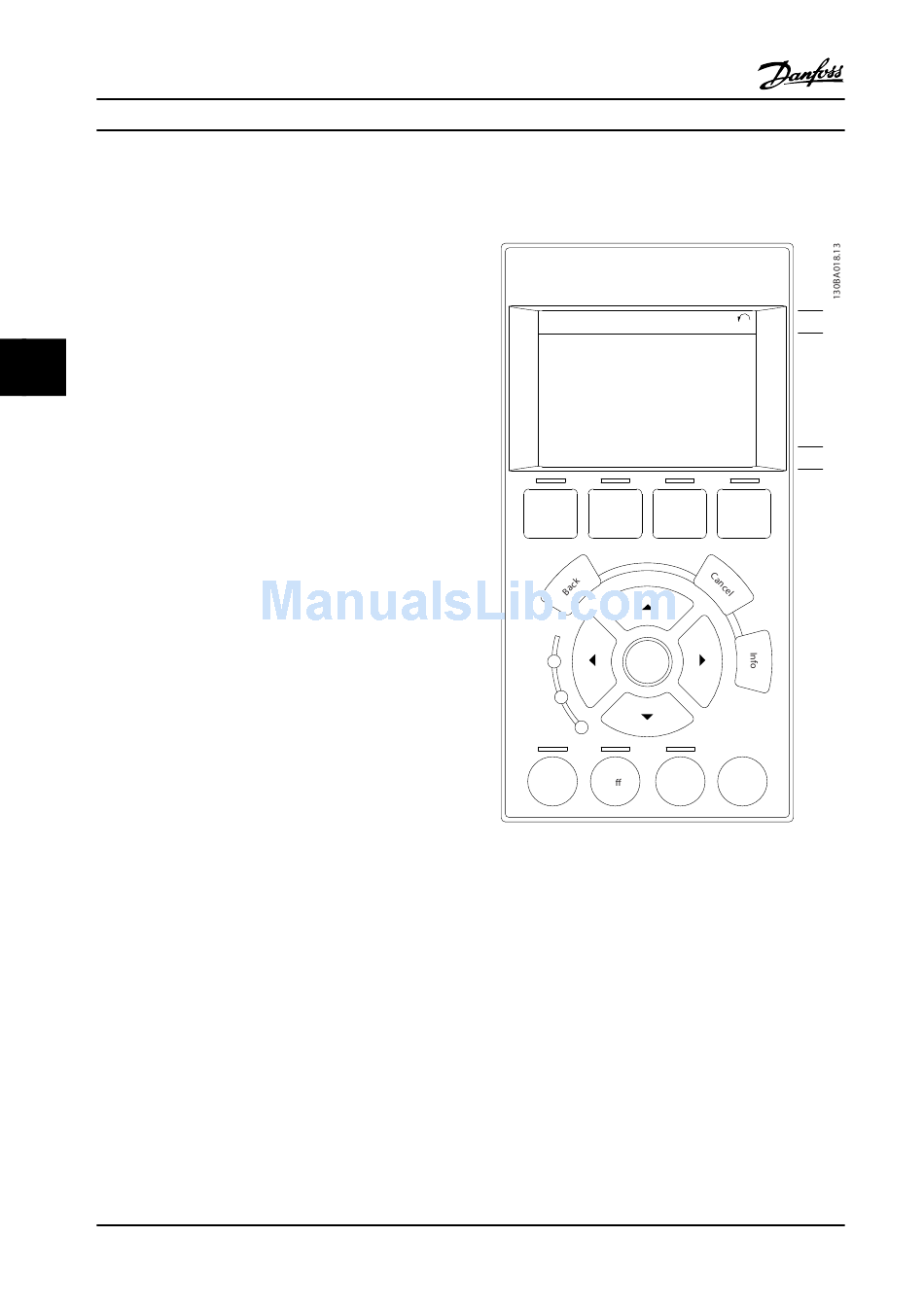

Figure 5.1 LCP
The display is divided into three sections:
Top section
(a) shows the status when in status mode, or up to two
variables when not in status mode, and in the case of
Alarm/Warning.
The number of the active set-up (selected as the active
set-up in parameter 0-10 Active Set-up) is shown. When
programming in another set-up than the active set-up, the
number of the set-up being programmed appears to the
right in brackets.
Middle section
(b) shows up to five variables with related unit, regardless
of status. In the event of an alarm/warning, the warning is
shown instead of the variables.
Danfoss A/S © 08/2014 All rights reserved.
Status
1234rpm 10,4A
43,5Hz
Run OK
Quick Main
Status
Menu Menu
OK
On
Warn.
Alarm
Hand Auto
O
on on
a
1(0)
43,5Hz
b
c
Alarm
Log
Reset
MG11F522
