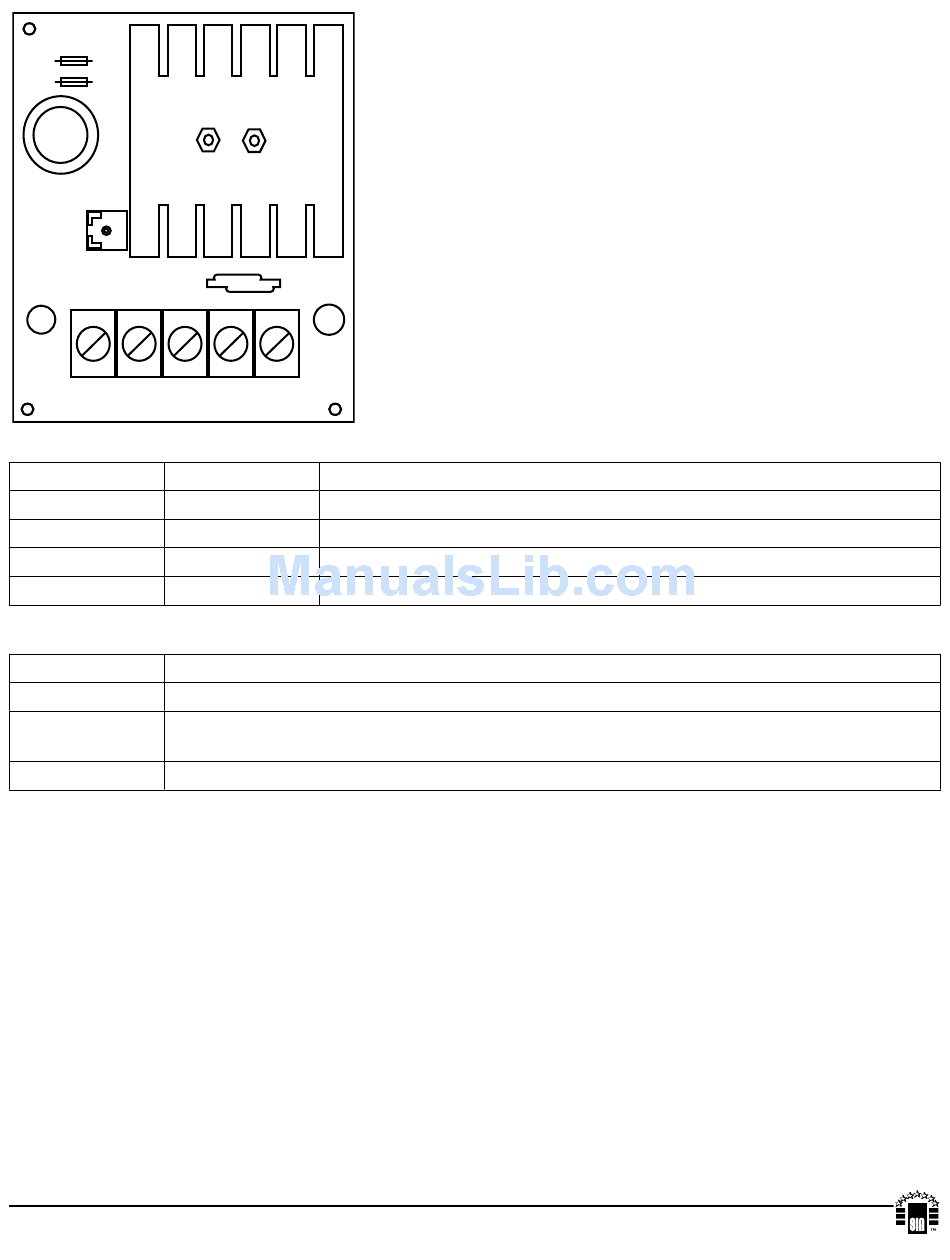

Led Diagnostics; Terminal Identification - Altronix AL624 Installation Instructions

FACTORY SET AT 12V
CUT J1 FOR 24V
CUT J2 FOR 6V
J1
J2
AC
AC AC +DC - BAT +
Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
Terminal Legend Function/Description
AC/AC Low voltage AC input.
12VDC @ 1.2 amp continuous supply current.
- DC +
24VDC @ 750mA continuous supply current.
+ BAT - Stand-by battery connections. Maximum charge rate 300mA.
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@ altronix.com, Lifetime Warranty, Made in U.S.A.
IIAL624 Kit - Rev. 090203
DC

LED Diagnostics:

Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged or no battery present.

Terminal Identification:
