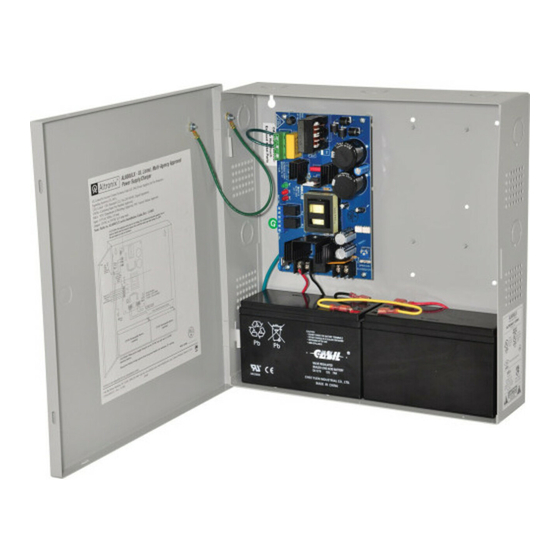

Power supply/charger

Advertisement

Quick Links

AL600X220 Series
Power Supply/Charger
Models Include:
AL600X220
- Single Output.
AL600PD4220
- Four (4) Fuse Protected Outputs.
AL600PD8220
- Eight (8) Fuse Protected Outputs.
AL600XPD16220
- Sixteen (16) Fuse Protected Outputs.
For a red enclosure add an "R" suffix to the part #, e.g. AL600PD8R220
For a larger enclosure add an "X" suffix to the part #, e.g. AL600XPD8220
Installation Guide
Rev. 111612
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
AL600PD4CB220
- Four (4) PTC Protected Outputs.
AL600PD8CB220
- Eight (8) PTC Protected Outputs.
AL600XPD16CB220
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL600X220 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Altronix AL600X220 Series

  • Page 1 AL600X220 Series Power Supply/Charger Models Include: AL600X220 - Single Output. AL600PD4220 AL600PD4CB220 - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. AL600PD8220 AL600PD8CB220 - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs. AL600XPD16220 AL600XPD16CB220 - Sixteen (16) Fuse Protected Outputs.
  • Page 2 Overview: Altronix AL600X220 is a power supply that converts a nominal 220VAC (working range 198VAC-256VAC), 50/60Hz input to a 12VDC or 24VDC regulating output (see specifications below). The AL600X220 is the base power supply unit for the multi-output power supply/charger series: AL600PD4220, AL600PD4CB220, AL600PD8220, AL600PD8CB220, AL600XPD16220, AL600XPD16CB220 (Refer to AL600X220 Series Power Supply Configuration Reference Chart below).
  • Page 3 Alarm = 6.0A Alarm = 6.0A Fig. 1 - AL600X220 Series CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric shock and fire hazard replace fuse with the same type and rating. Do not expose to rain or moisture.
  • Page 4: Installation Instructions

    CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by batt 4 years or less if needed. Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing - 4 - AL600X220 Series Installation Guide...
  • Page 5: Led Diagnostics

    Stand-by battery connections. Maximum charge current 0.7A. Power Distribution Module Terminal Legend Function/Description PD4/PD4CB PD8/PD8CB 1P to 4P 1P to 8P Positive DC power outputs. 1N to 4N 1N to 8N Negative DC power outputs. AL600X220 Series Installation Guide - 5 -...
  • Page 6: Power Distribution Module(S)

    COMMON POWER OUTPUTS DC Output to devices From Power Supply DC Output to devices From Power Supply 1P-8P Power Outputs, Board 1P-8P Power Outputs, Board 1N-8N Common Outputs (Factory Installed) 1N-8N Common Outputs (Factory Installed) - 6 - AL600X220 Series Installation Guide...
  • Page 7 (30.5mm) 0.75” 0.75” 12.5” (317.5mm) 1.20” 1.20” (19.1mm) (19.1mm) (30.5mm) (30.5mm) 11.0” (279.4mm) 0.9375” (23.8mm) 1.40” 1.40” (35.6mm) (35.6mm) 0.9375” (23.8mm) 3.25” (82.6mm) 3.25” (82.6mm) 1.0” (25.4mm) 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) AL600X220 Series Installation Guide - 7 -...
  • Page 8 1.5” 4.615” (117.2mm) 4.615” (117.2mm) (38.1mm) (38.1mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIAL600X220 Series...
