Altronix AL600ULX Installation Manual
Al600ulx series power supply/charger
Hide thumbs
Also See for AL600ULX:
- Installation manual (12 pages) ,
- Installation instructions (4 pages) ,
- Installation manual (9 pages)
Advertisement
Quick Links

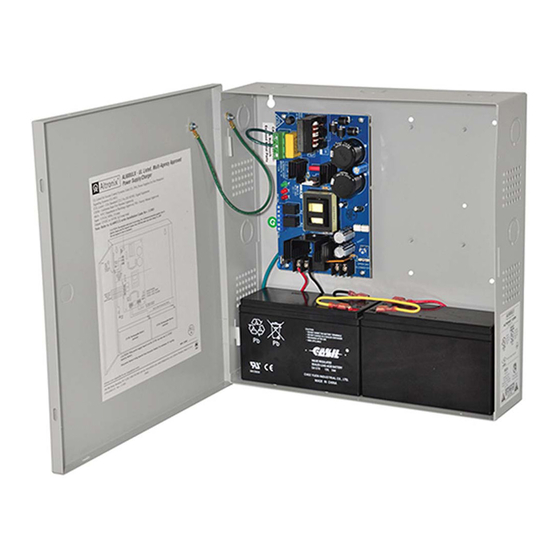

AL600ULX Series
Power Supply/Charger
Installation Guide
Models Include:
• AL600ULX
-
Single Output
• AL600ULPD4
-
Four (4) Fused Outputs
• AL600ULPD8
-
Eight (8) Fused Outputs
• AL600ULXPD16
-
Sixteen (16) Fused Outputs
For a red enclosure, add an "R" suffix to the part # e.g. AL600ULPD8R
• AL600ULPD4CB
-
Four (4) PTC Outputs
• AL600ULPD8CB
-
Eight (8) PTC Outputs
• AL600ULXPD16CB
-
Sixteen (16) PTC Outputs
Rev. 111003
Advertisement
Related Manuals for Altronix AL600ULX
Summary of Contents for Altronix AL600ULX
-
Page 1: Installation Guide
AL600ULX Series Power Supply/Charger Installation Guide Models Include: • AL600ULX Single Output • AL600ULPD4 • AL600ULPD4CB Four (4) Fused Outputs Four (4) PTC Outputs • AL600ULPD8 • AL600ULPD8CB Eight (8) Fused Outputs Eight (8) PTC Outputs • AL600ULXPD16 • AL600ULXPD16CB... -
Page 2: Specifications
Overview: The AL600ULX is a power supply that converts a 115VAC / 60Hz input, to a 12VDC or 24VDC regulating output (see specifications below). The AL600ULX is the base power supply unit for the UL Listed multi-output power supply/charger series: AL600ULPD4, AL600ULPD4CB, AL600ULPD8, AL600ULPD8CB, AL600ULXPD16, AL600ULXPD16CB (Refer to AL600ULX Series Power Supply Configuration Reference Chart below). - Page 3 Stand-by Specifications (total current shown): Output 4 hr. of Stand-by & 24 hr. of Stand-by & 60 hr. of Stand-by & 5 Minutes of Alarm 5 Minutes of Alarm 5 Minutes of Alarm 12VDC / 40 AH Battery Stand-by = 6 amp Stand-by = 1.0 amp Stand-by = 300mA Alarm = 6 amp...
- Page 4 5. Connect devices to be powered: a. For AL600ULX Power Supply connect devices to terminals marked [+ DC -]. (Fig. 1, pg. 3) b. For other Power Distribution Models connect devices to be powered to terminal pairs 1 to 4 marked [1P &...
-
Page 5: Power Distribution Module(S)
LED Diagnostics: PD4UL/PD4ULCB/PD8UL/PD8ULCB - Power Distribution Module Green Power Distribution Module Status Normal operating condition. Terminal Identification: PD4UL/PD4ULCB/PD8UL/PD8ULCB - Power Distribution Module Terminal Legend Function/ PD4UL/PD4ULCB PD8UL/PD8ULCB Description 1P to 4P 1P to 8P Positive DC power outputs. 1N to 4N 1N to 8N Negative DC power outputs. - Page 6 [+ BAT -] to insure there is no break in the battery connection wires. Note: Maximum charging current under discharges is .7 amp. Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed. Enclosure Dimensions: • AL600ULX • AL600ULPD4 • AL600ULPD4CB • AL600ULPD8 •...
- Page 7 Enclosure Dimensions: • AL600ULXPD16 • AL600ULXPD16CB 15.5”H x 12”W x 4.5”D 12" 2.25" 3.68" 4.56" 1.22" 4.5" 1.22" 1.22" .875" 9.97" 1.3" 1" 1" 2" 2" 8" 13.25" 13.53" 3.25" 2.2" 1.25" 1" 15.5" 1.22" 3.68" 2.25" 4.56" - 7 -...
- Page 8 Notes: Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL600ULX series F13E MEMBER - 8 -...
