Altronix AL624E Installation Instructions Manual

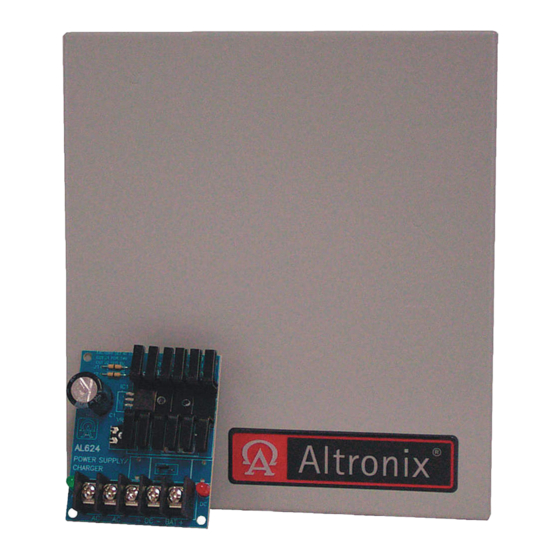

Altronix AL624E Linear Power Supply/Charger converts a low voltage AC input to a low voltage DC output.
This general purpose power supply has a wide range of applications for access control, security and CCTV system
accessories that require additional power.
Agency Listing:
• CE European Conformity.
Input:
• Input 16VAC to 24VAC, 20VA to 40VA
(Voltage Output/Transformer Selection Table)
Output:
• Switch selectable 6VDC-12VDC-24VDC.
• 1.2A continuous supply current at 6VDC-12VDC.
• 750mA continuous supply current at 24VDC.
• Filtered and electronically regulated output.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
Voltage Output/Transformer Selection Table:
Output
(continuous supply current)
6VDC @1.2A
12VDC @ 1.2A
24VDC @ 750mA
1. Mount AL624 into enclosure (Fig. 1, pg. 2).
2. Mount AL624E in desired location.
3. Unit is factory set for 12VDC. For 6VDC output cut jumper J2, for 24VDC output cut Jumper J1.
4. Connect proper transformer to terminals marked [AC] (Voltage Output/Transformer Selection Table).
Use 18 AWG or larger for all power connections (Battery, DC output).
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
6. Connect devices to be powered to the terminals marked [+ DC] and [DC – BAT] carefully observing polarity.
7. Connect battery to the terminals marked [BAT +] and [DC – NEG] (battery leads included)
Note: When batteries are not used, a loss of AC will result in a loss of output voltage.
Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
AL624E
Linear Power Supply/Charger

Overview:

Specifications:

Voltage Selector (JMPR)
Cut Jumper J2 Only
Leave J1 & J2 Intact
Cut Jumper J1 Only

Installation Instructions:

LED Diagnostics:

Power Supply Status
Normal operating conditions
Loss of AC. Stand-by battery is supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged or no battery present.
Battery Backup (cont'd):
• Maximum charge current 300mA.
• Automatic switchover to stand-by battery when
AC Fails.
• PTC battery protection.
Additional Features:
• Thermal and short circuit protection with auto reset.
• AC input and DC output LED indicators.
• Extremely compact design.
• Includes battery leads and enclosure.
Enclosure Dimensions (H x W x D):
8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
Transformer
12VAC / 20 VA (Altronix model TP1220)
16.5VAC / 20 VA (Altronix model TP1620)
24VAC / 40 VA (Altronix model TP2440)
