AL642ULADA
NAC Power Extender
Installation Guide
(see Application Guide for additional information)
Altronix Corp.
140 58th St. Brooklyn, NY
More than just power.
TM
Rev. 111819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL642ULADA and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix AL642ULADA

Summary of Contents for Altronix AL642ULADA

  • Page 1 AL642ULADA NAC Power Extender Installation Guide (see Application Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY More than just power. Rev. 111819...

  • Page 2: Table Of Contents

    Enclosure Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 16 - 2 - AL642ULADA...

  • Page 3: Overview

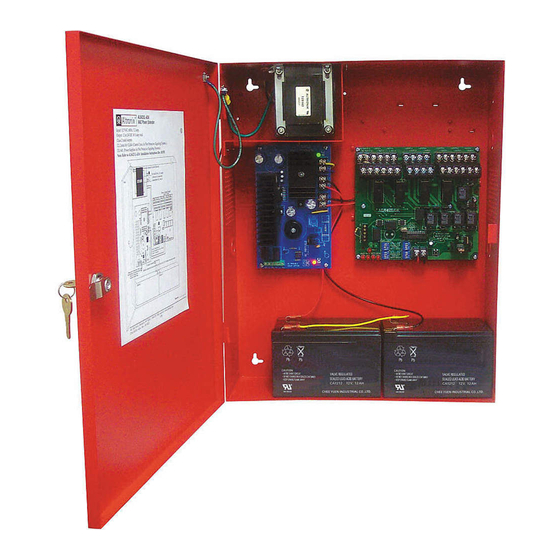

    Overview: Altronix AL642ULADA is an extremely cost-effective 6 .5A remote power supply/battery charger . It may be connected to any 24 volt Fire Alarm Control Panel (FACP) . Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements . It also provides auxiliary power to support system accessories .

  • Page 4: Power Supply Specifications

    Use two (2) 12VDC / 7AH, two (2) 12VDC / 12AH or two (2) 12VDC / 40AH Battery batteries connected in series . Stand-by/Alarm 90mA/175mA Current Consumption: EOL Resistor (end of line): 2 .2K (2200 Ohm), Altronix Model # AL-EOL22 (included) . Ground fault maximum 1000 Ohm . test impedance: Stand-by Specifications: Stand-by Time Total...

  • Page 5: Output Programming Selection Table

    (horns) and visual notification appliances (strobes) to be silenced/ Cooper Wheelock . deactivated at the same time . *Note: The AL642ULADA will only synchronize horns, horn/strobes, and strobes that contain synchronization capability . The same synchronization mode must be selected for all outputs . AL642ULADA...

  • Page 6: Amount Of Notification Appliances Per Nac

    “AUX2” please, refer to battery “Stand-by Specifications” pg. 4 for ratings. When loads are connected to the “AUX1” and or “AUX2” outputs during alarm condition, the remaining outputs may not exceed 6.5A total alarm current. Example: AUX1 = 1A, AUX2 = 1A, outputs up to 6.5A. - 6 - AL642ULADA...

  • Page 7: Al600Ada Power Supply Board

    To reset the memory depress the reset button located on the AL842LGK logic board (Fig. 2b, pg. 9) . The LED(s) will extinguish . Note: When indicating circuits have restored, trouble memory reset is not required for normal operation . AL642ULADA - 7 -...

  • Page 8: Battery Calculation Worksheet

    Current Current For each device use this formula: This column x This column = Equals Current per number of devices . Stand-by: 90mA 90mA AL642ULADA (Current draw from battery) Alarm: 175mA 175mA AL642 Current 90mA 175mA Auxiliary Devices Refer to device manual for current ratings .

  • Page 9: Hookup Diagram

    C "FAULT" NC C "FAULT" NC 250V AL642ULADA - 9 -...

  • Page 10: Optional Hookups

    Input fuse rating is 5A @ 250V . Note: Maximum charging current is 650mA . Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed . - 10 - AL642ULADA...

  • Page 11: Compatible Ul/Cul Listed Devices For Synchronization

    Appendix A: Compatible UL/cUL Listed Devices for Synchronization –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– A-1 Strobes, Horns, and Horn/Strobes Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL642ULADA NAC outputs . System Sensor: CHSR - UL P4R-SP - UL PC4RH-P - UL SPSCW - UL...
  • Page 12 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL642ULADA NAC outputs . Gentex: GCS24CR - UL GCCB24PCR / W - UL GEC24-15/75WR - UL...
  • Page 13 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL642ULADA NAC outputs . Cooper/Wheelock: 50-241575W-FR - UL/cUL E70-24MCW-FN - UL/cUL ET90-24MCCH-FN - UL/cUL...

  • Page 14: B-1 Relays

    Appendix B - UL Listed Compatible Devices –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– B-1 Relays Table B-2 below lists relays compatible with AL642ULADA AUX output and Outputs 1-8 when programmed as AUX . Manufacturer Model Current (mA) Manufacturer Model Current (mA) PR-1 R-20T PR-2 R-24T...
  • Page 15 Notes: AL642ULADA - 15 -...

  • Page 16: Enclosure Dimensions

    Altronix is not responsible for any typographical errors . 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www .altronix .com | e-mail: info@altronix .com | Lifetime Warranty | Made in U .S .A . MEMBER...
