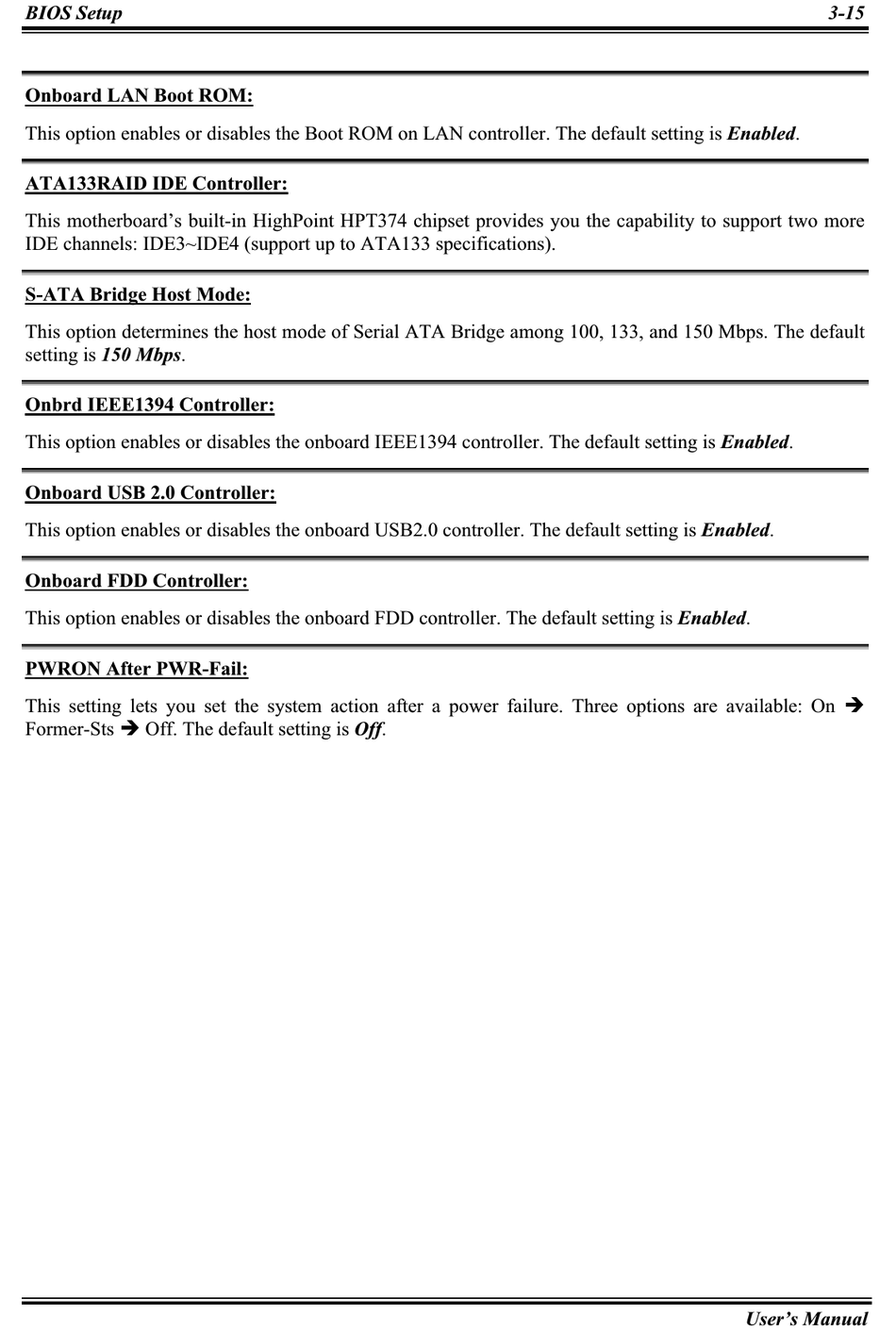

BIOS Setup 3-15
Onboard LAN Boot ROM:
This option enables or disables the Boot ROM on LAN controller. The default setting is Enabled.
ATA133RAID IDE Controller:
This motherboard's built-in HighPoint HPT374 chipset provides you the capability to support two more
IDE channels: IDE3~IDE4 (support up to ATA133 specifications).
S-ATA Bridge Host Mode:
This option determines the host mode of Serial ATA Bridge among 100, 133, and 150 Mbps. The default
setting is 150 Mbps.
Onbrd IEEE1394 Controller:
This option enables or disables the onboard IEEE1394 controller. The default setting is Enabled.
Onboard USB 2.0 Controller:
This option enables or disables the onboard USB2.0 controller. The default setting is Enabled.
Onboard FDD Controller:
This option enables or disables the onboard FDD controller. The default setting is Enabled.
PWRON After PWR-Fail:
This setting lets you set the system action after a power failure. Three options are available: On %
Former-Sts % Off. The default setting is Off.
