2-18

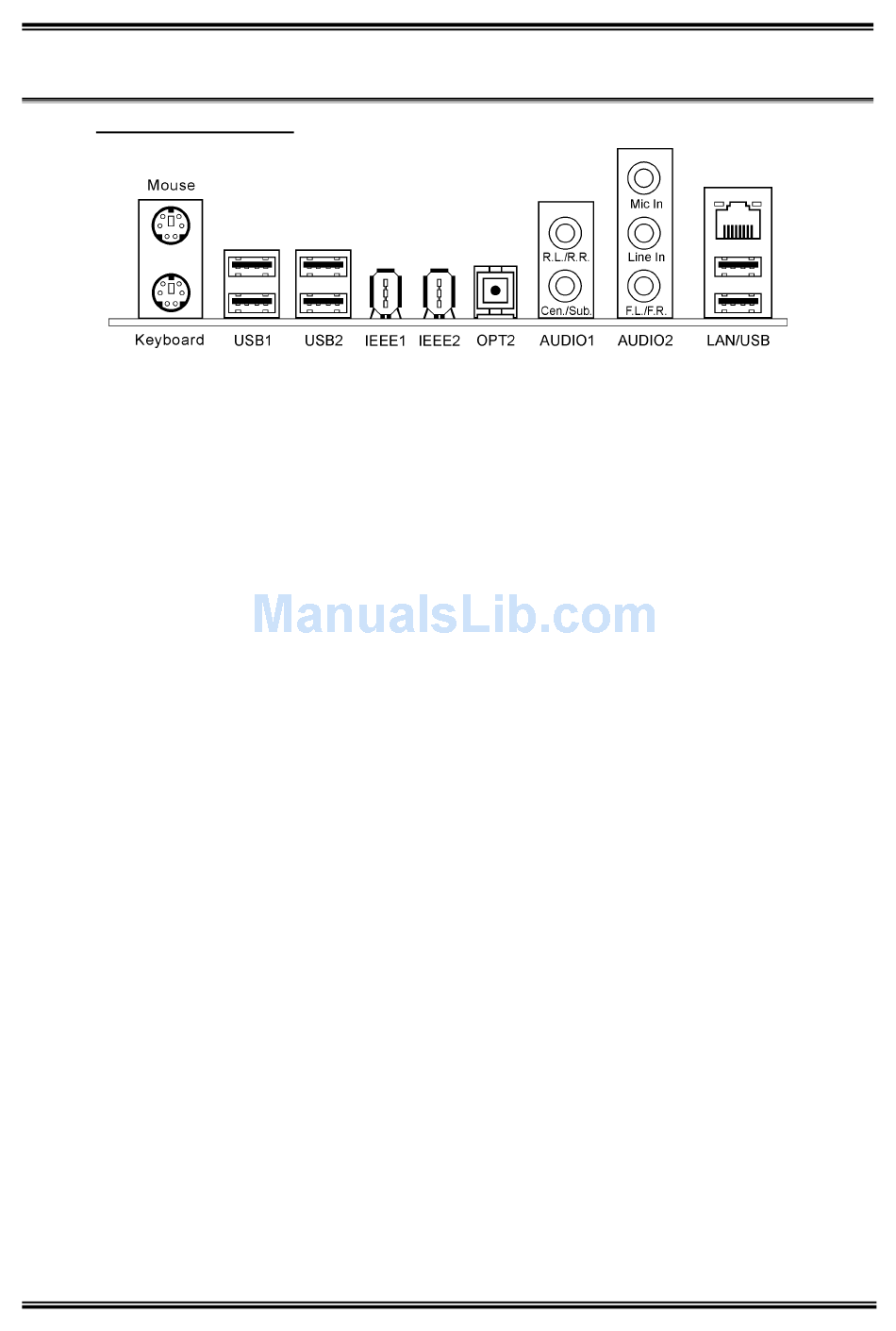

(19). Back Panel Connectors
•
Mouse: PS/2 Mouse Connector
Attach a PS/2 mouse to this 6-pin Din-connector.
•
Keyboard: PS/2 Keyboard Connector
Attach a PS/2 keyboard connector to this 6-pin Din-connector. If you use an AT keyboard, you
can go to a computer store to purchase an AT to ATX converter adapter. You can then connect
your AT keyboard to this connector. We suggest you use a PS/2 keyboard for best compatibility.
•
USB1/USB2
These four connectors provide USB 2.0 ports controlled by ICH4.
•
IEEE1/IEEE2
These two onboard IEEE1394 ports connect to IEEE1394 devices.
•
OPT2
This connector provides an S/PDIF out connection through optical fiber to digital multimedia
devices.
•
AUDIO1
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel in the 5.1
channel audio system.
Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel in the 5.1
channel audio system.
•
AUDIO2
Mic In: Connects to the plug from external microphone.
Line In: Connects to the line out from external audio sources.
F.L./F.R. (Front Left / Front Right): Connects to the front left and front right channel in the
5.1-channel or regular 2-channel audio system.
•
LAN/USB
LAN: Connect your system to Local Area Network through this connector.
USB: These two connectors provide USB 2.0 ports controlled by VIA VT6202.
