Hardware Setup

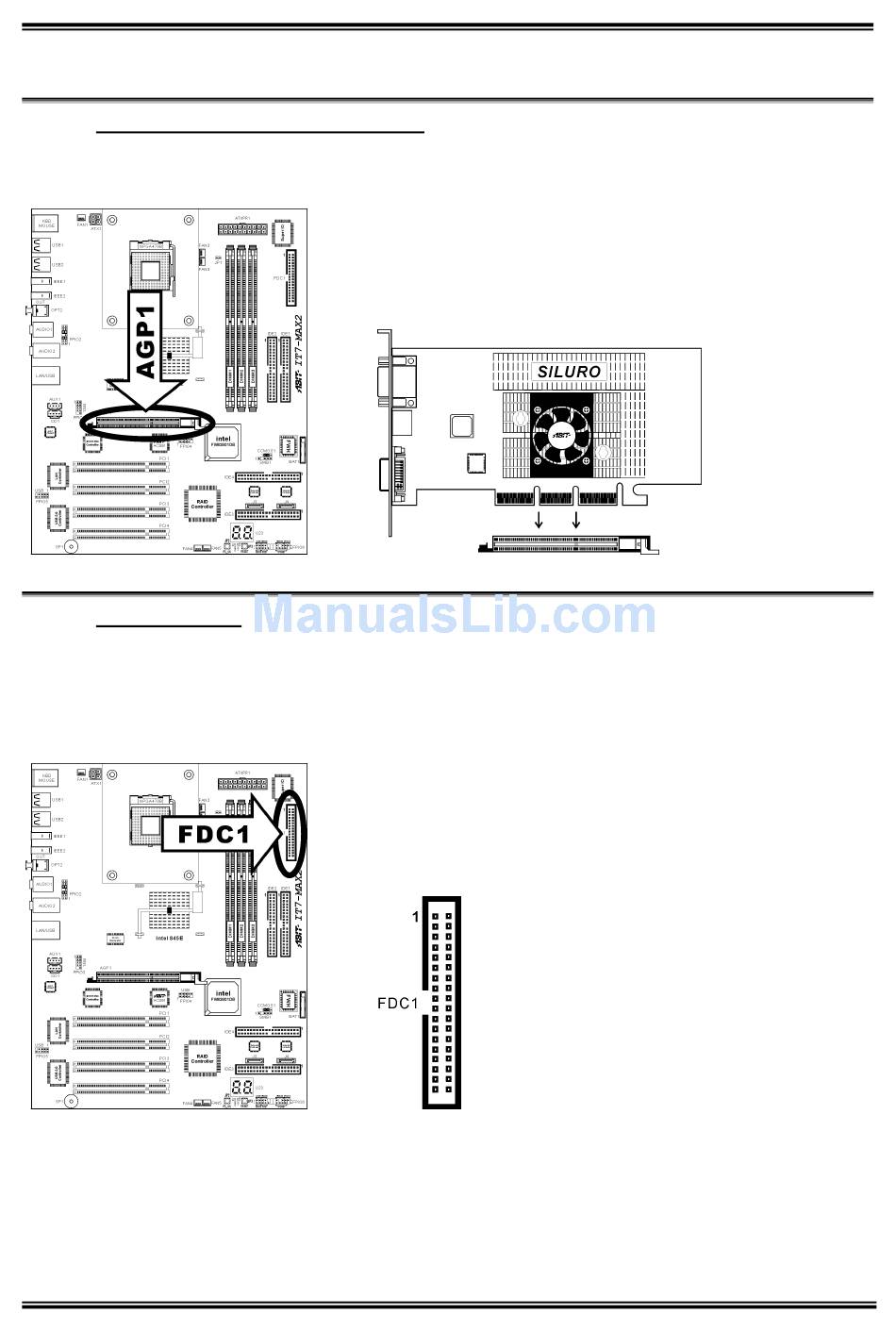

(14). AGP1: Accelerated Graphics Port Slot
This slot supports an optional AGP graphics card up to AGP 4X mode. Please refer to our Web site for
more information on graphics cards.
(15). FDC1 Connector
There are 34 wires and two connectors on each floppy cable providing two floppy disk drives connection.
Connect the single end at the longer length of ribbon cable to this FDC1, and the two connectors on the
other end to the floppy disk drives. Generally you need only one floppy disk drive in your system.
Note: The red line on the ribbon cable should be aligned with pin 1 on this connector.
