Hardware Setup
(9).

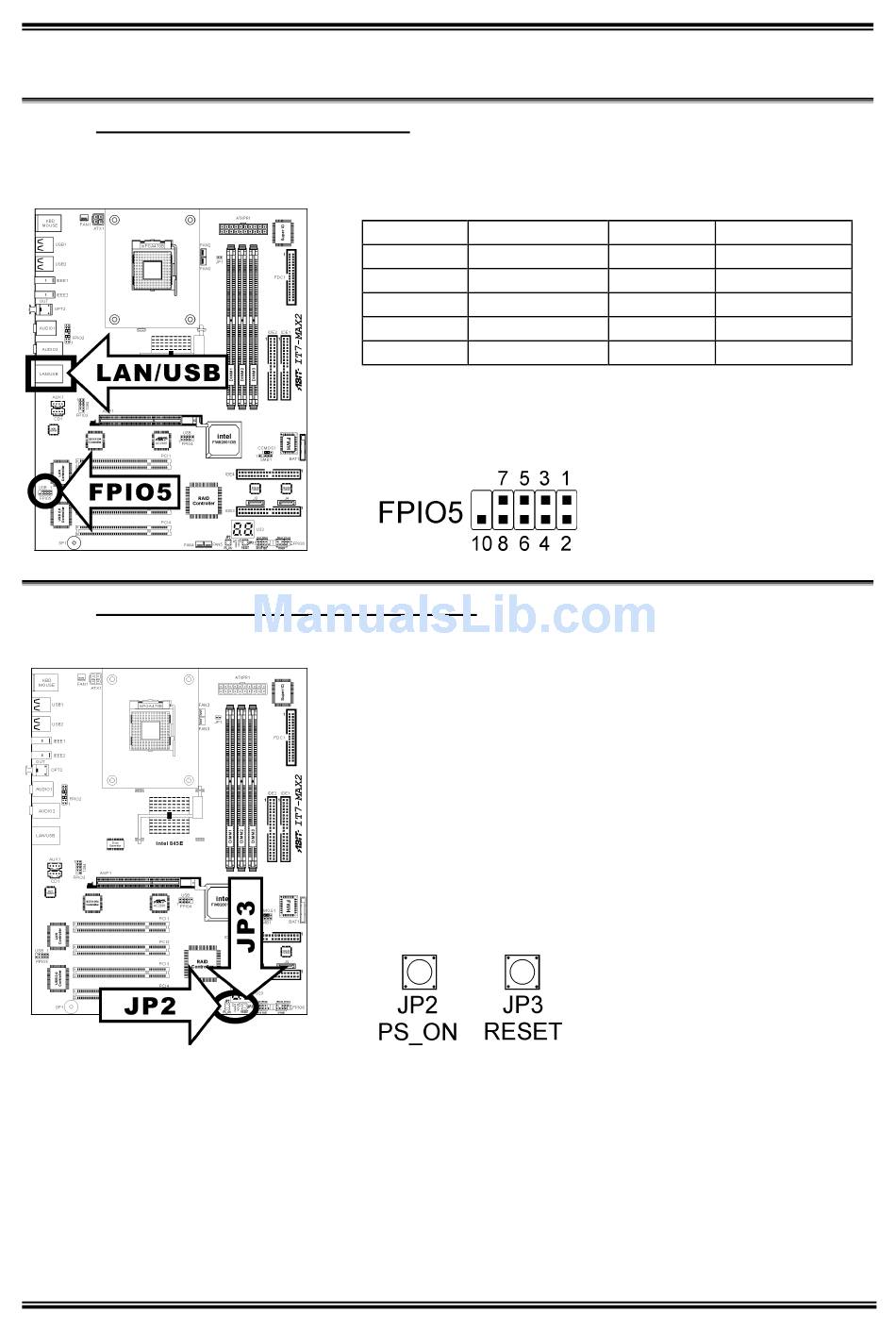

FPIO5: Additional USB Port Header
This motherboard also provides totally four extra USB 2.0 ports controlled by VIA VT6202. Two of them
are through the onboard LAN/USB connectors; two of them are capable through this header.
(10).
JP2, JP3: Onboard Power-on/Reset Switches
These two switches mounted onboard to power on the system (JP2) or to reset the system (JP3).
Pin Number Pin Assignment Pin Number Pin Assignment
1
VCC
3
Data0 -
5
Data0 +
7
Ground
9
NC
2
4
6
8
10
FPIO5 Header
2-9
VCC
Data1 -
Data1 +
Ground
NC
User's Manual
