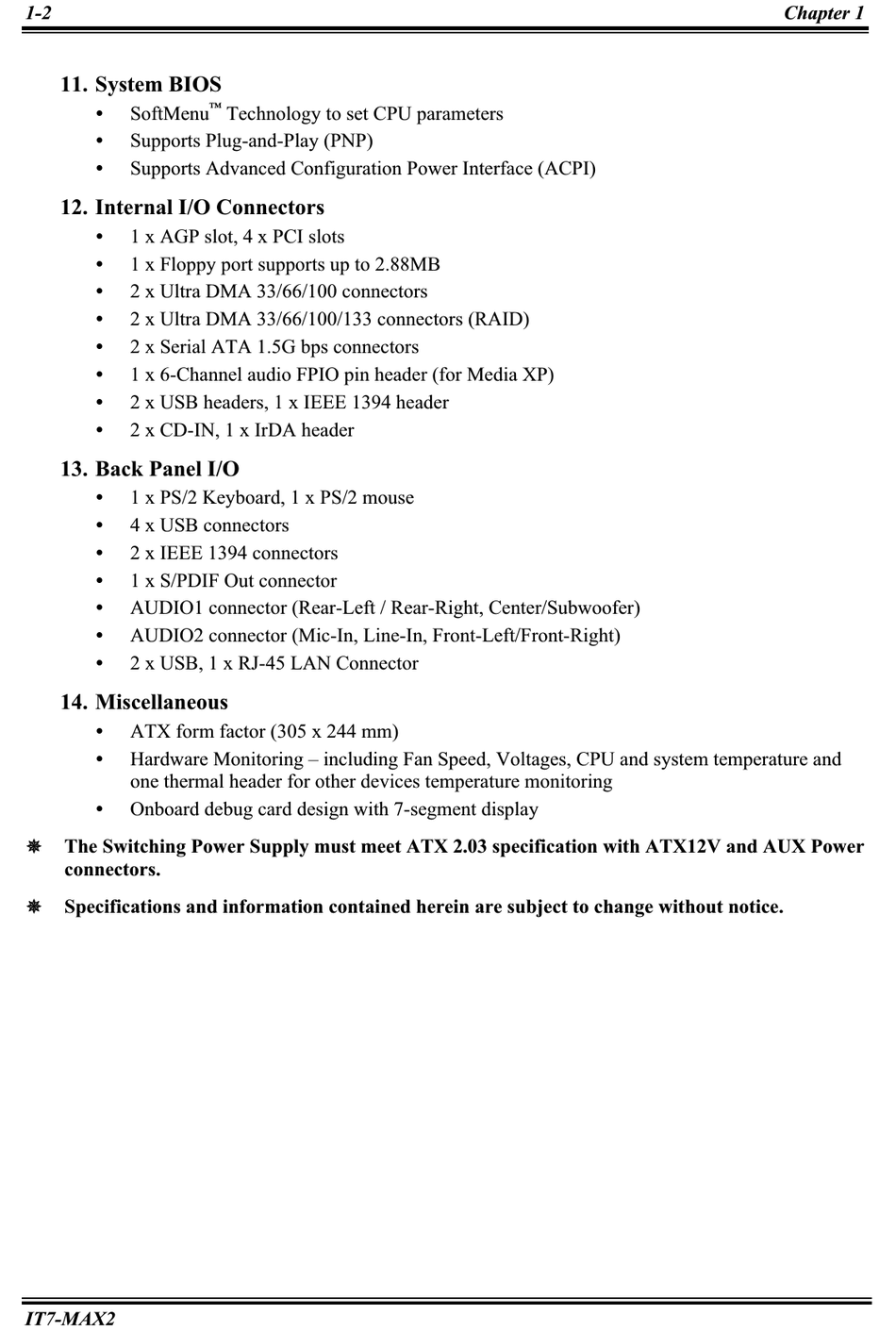

Abit IT7-MAX2 User Manual page 30

1-2
11. System BIOS
!
SoftMenu
!
Supports Plug-and-Play (PNP)
!
Supports Advanced Configuration Power Interface (ACPI)
12. Internal I/O Connectors
!
1 x AGP slot, 4 x PCI slots
!
1 x Floppy port supports up to 2.88MB
!
2 x Ultra DMA 33/66/100 connectors
!
2 x Ultra DMA 33/66/100/133 connectors (RAID)
!
2 x Serial ATA 1.5G bps connectors
!
1 x 6-Channel audio FPIO pin header (for Media XP)
!
2 x USB headers, 1 x IEEE 1394 header
!
2 x CD-IN, 1 x IrDA header
13. Back Panel I/O
!
1 x PS/2 Keyboard, 1 x PS/2 mouse
!
4 x USB connectors
!
2 x IEEE 1394 connectors
!
1 x S/PDIF Out connector
!
AUDIO1 connector (Rear-Left / Rear-Right, Center/Subwoofer)
!
AUDIO2 connector (Mic-In, Line-In, Front-Left/Front-Right)
!
2 x USB, 1 x RJ-45 LAN Connector
14. Miscellaneous
!
ATX form factor (305 x 244 mm)
!
Hardware Monitoring – including Fan Speed, Voltages, CPU and system temperature and
one thermal header for other devices temperature monitoring
!
Onboard debug card design with 7-segment display
#
The Switching Power Supply must meet ATX 2.03 specification with ATX12V and AUX Power
connectors.
#
Specifications and information contained herein are subject to change without notice.
IT7-MAX2
™
Technology to set CPU parameters
Chapter 1
