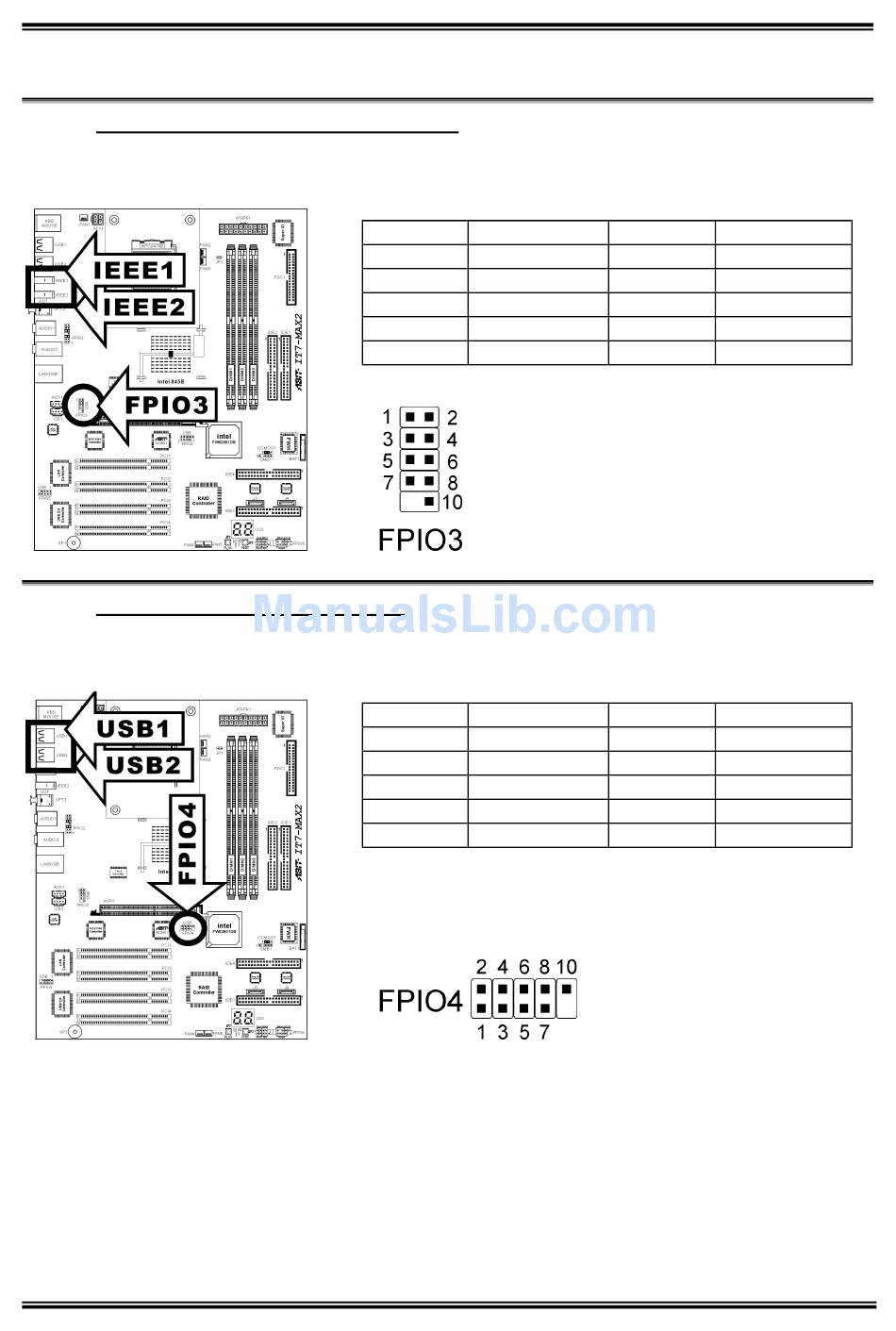

(7). FPIO3: Additional IEEE1394 Port Header
This header provides one additional IEEE1394 port connection besides the two onboard IEEE1 & IEEE2
connectors.
(8). FPIO4: Additional USB Port Header
This motherboard provides totally six USB 2.0 ports controlled by ICH4. Four of them are through the
onboard USB1 and USB2 connectors; two of them are capable through this header.
IT7-MAX2
Pin Number Pin Assignment Pin Number Pin Assignment
1 TPA0 +
3 GND
5 TPB0 +
7 +12V
9 NC
Pin Number Pin Assignment Pin Number Pin Assignment
1 VCC
3 Data0 -
5 Data0 +
7 Ground
9 NC
2
4
6
8
10
FPIO3 Header
2
4
6
8
10
FPIO4 Header
Chapter 2
TPA0 -
GND
TPB0 -
+12V
GND
VCC
Data1 -
Data1 +
Ground
NC
