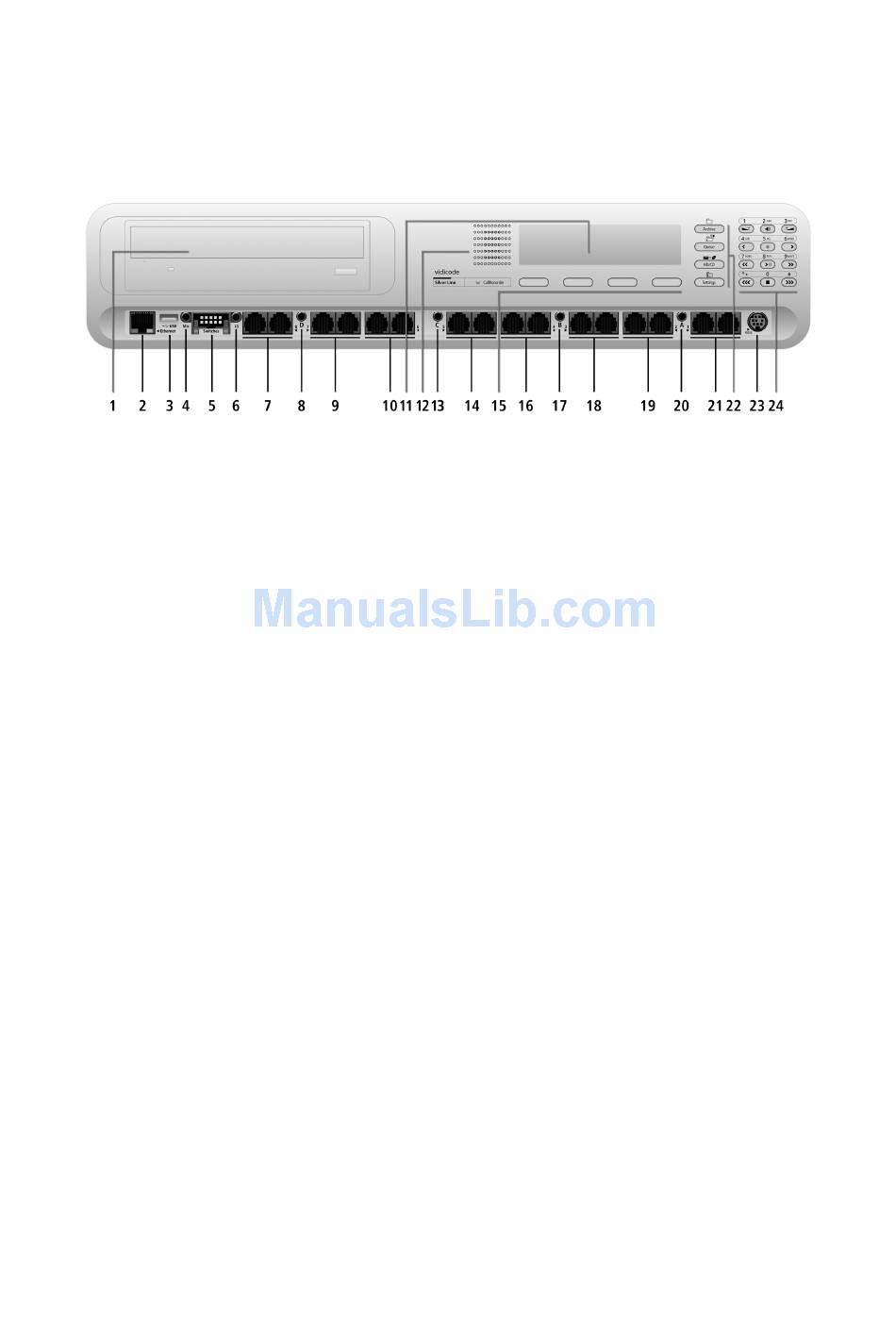

1. CD-Drive
2. Ethernet/LAN
3. USB port (unused)
4. Microphone
5. 8 Channel Start/Stop switches
6. Headset/External Speaker
7. Telephone Line Input (channel #8)
8. Audio Input (channel D)
9. Telephone Line Input (channel #7)
10. Telephone Line Input (channel #6)
11. Backlight Display
12. Internal Speaker
13. Audio Input (channel C)
14. Telephone Line Input (channel #5)
15. Menu Keys
16. Telephone Line Input (channel #4)
17. Audio Input (channel B)
18. Telephone Line Input (channel #3)
19. Telephone Line Input (channel #2)
20. Audio Input (channel A)
21. Telephone Line Input (channel #1)
22. Function Keys
23. RS232 Serial Connection
24. Alfa-numerical/Recorder Keys
