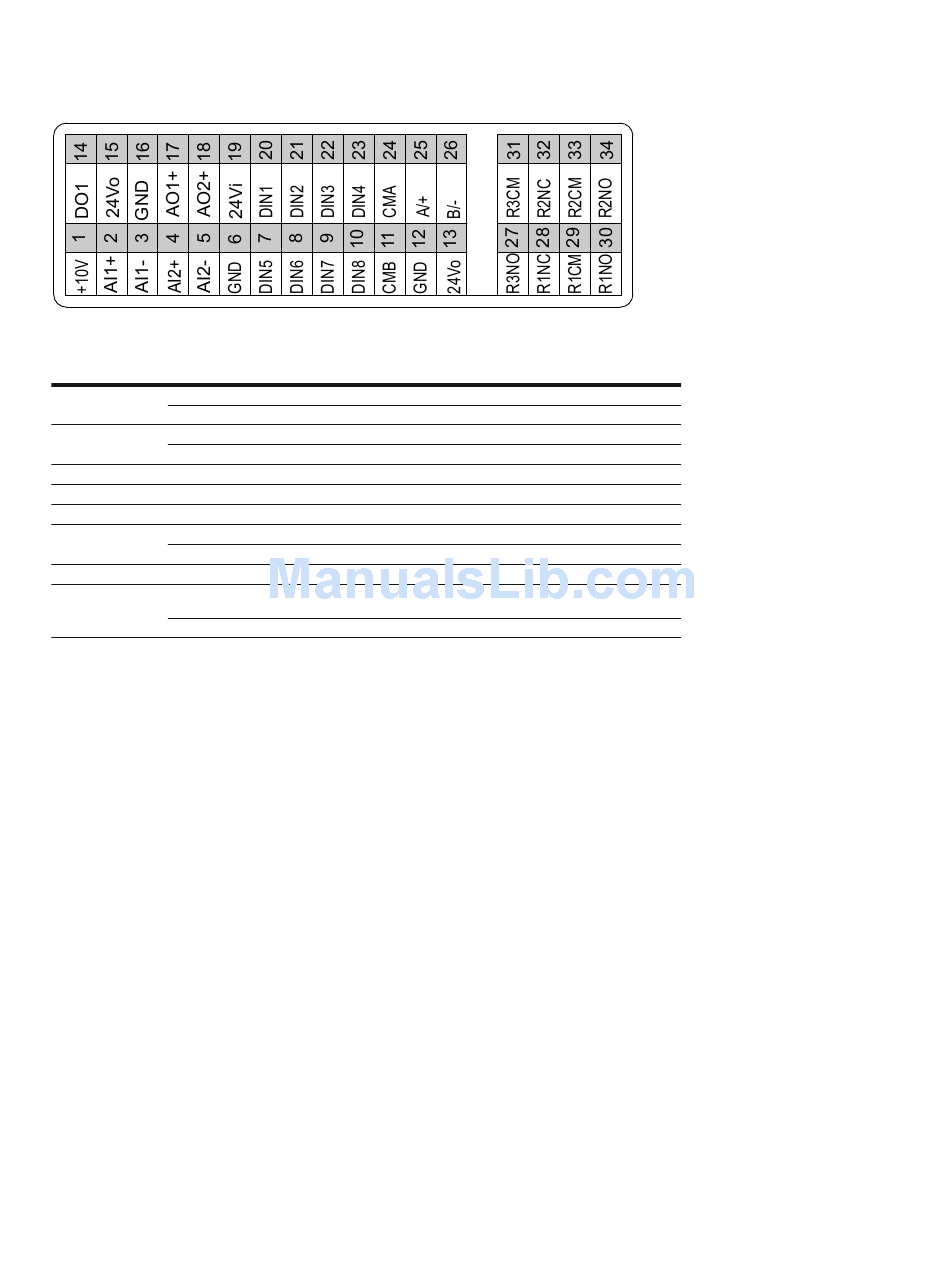

Figure 25. Terminal block layout

Table 38. I/O specifications

Item Specification
Analog input 1 Selectable for either voltage or current reference signal
0 to 10 V, 0 (4) to 20 mA; R
Analog input 2 Selectable for either voltage or current reference signal
0 to 10 V, –10 to 10 V, 0 (4) to 20 mA; R
Digital inputs (8) Positive or negative logic; 18 to 30 Vdc, one input can be used as thermistor input
+24 V output Auxiliary voltage, +24 V ±15%, total max. 250 mA on board (include optional cards)
+10 VREF Output reference voltage, +10 V +3%, max. load 10 mA
Analog outputs 0 (4) to 20 mA; R
0 to 10 V, 10 mA
Digital output Open collector output, 50 mA/48 V for CE, 50 mA/36 V for UL
Relay outputs (3) Programmable relay outputs: 2 x form c (relay 1 and relay 2) and 1 x form a (relay 3),
relay 3 can be used as thermistor output
Switching capacity: 24 Vdc/6 A, 48 Vdc/2 A, 240 Vac/6 A, 125 Vdc/0.4 A
– 250 ohm differential
i
– 250 ohm differential
i
max. 500 ohm
L
