Ring Type - Matrix SETU VFX88L System Manual

Matrix
What's this?
• For the indication of Incoming calls, the user will get 'ring' cadences
which are not programmable. The system has the cadence-data for
24 countries, pre-programmed.
• When country-name is entered, the specific 'ring' for IC call for that
country is played by the system.
• It also supports 'customized' option for programming of required
cadence. Refer Table1 for Country name and Ring type at the end
of chapter.
How it works?
• The gateway supports two options for selecting the Ring Type:
• Countrywise
• Customized
• If 'Country wise' is selected default values of Ring cadence as per
the country will be played.
• If 'Customized' option is selected, the Cadence for ring will be
programmable. This is required if the user wants to set on his own
or if some country is not supported by default.
• Six cadence periods can be programmed for Ring.

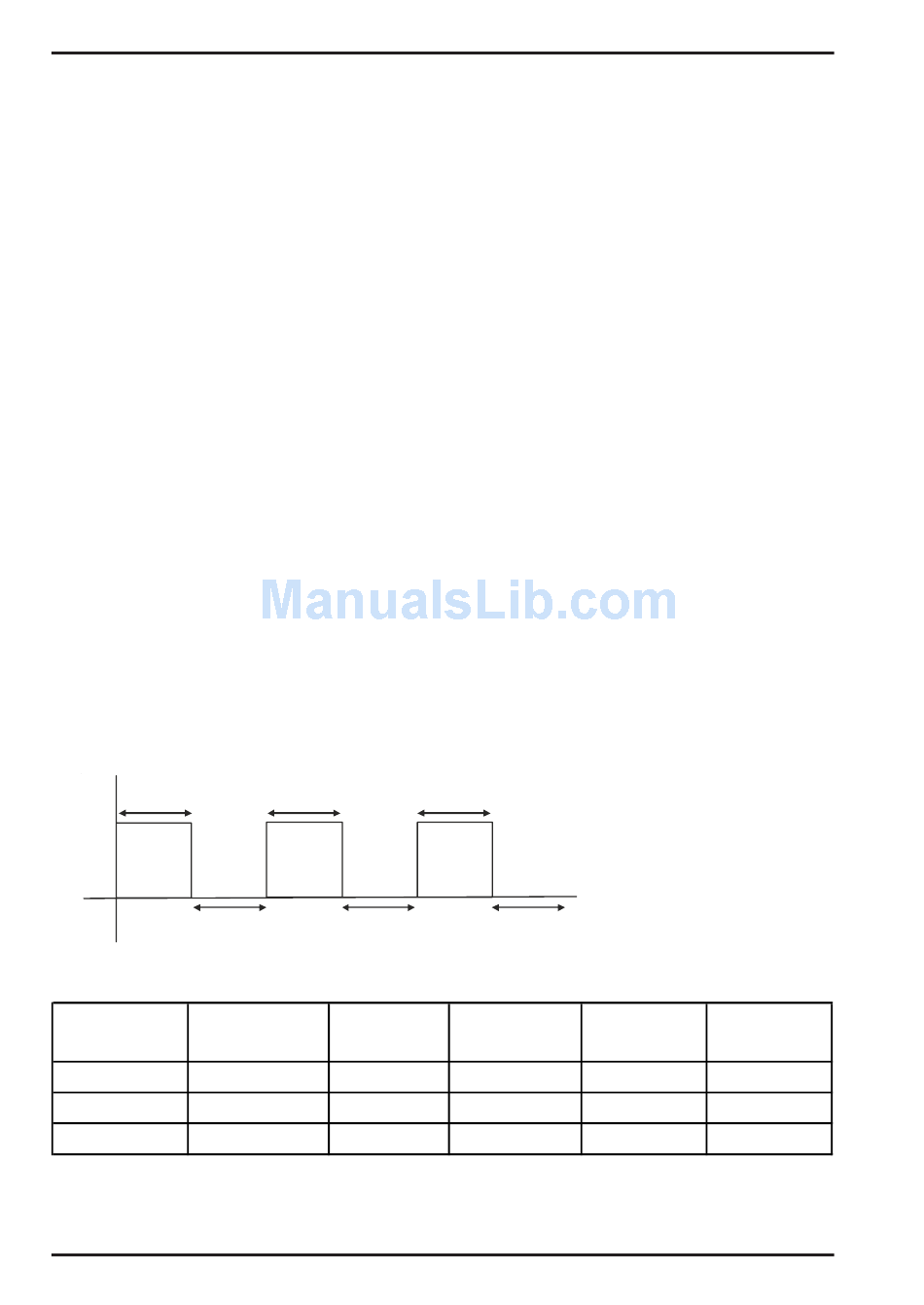

• Typical Cadence Index will look like as shown below:
ON Time1
Index 1 Index 2
OFF Time1
Default table for customized option:
ON Time1 OFF Time1
msec. msec.
400
How to program?
• Refer VFX88L/VFX44L Web Jeeves.
130

Ring Type

ON Time2
Index 3 Index 4
OFF Time2
ON Time2
msec.
200 400
ON Time3
Index 5 Index 6
OFF Time3
OFF Time2 ON Time3
mesc.
2000
SETU VFX88L/VFX44L V1
System Manual
OFFTime3
mesc. msec.
0 0
