◆Controller Over-Current Cut Settings

CUR represents controller over-current cut settings. CUR value can

be changed from 7.0A to 22.0A. The default value is 15A.

To change basic settings, press the UP/DOWN button to increase

or decrease the value of the current.

Hold the MODE button for 2s and then return to previous menu.

The Direction of Power Assistant Sensor Settings

PAS represents power assistant sensor settings. "run-F" means

forward direction, while "run-b" means back direction. The default value is

"run-F".

To change The Direction of Power Assistant Sensor Settings, press

the UP/DOWN button to select F or b.

Briefly press the MODE button and then access settings mode of

PAS sensitivity.

SCN represents the sensitivity of PAS settings. The sensitivity value

ranges from "2" to "9". "2" is the strongest, "9" is the weakest. The default

value is "2".

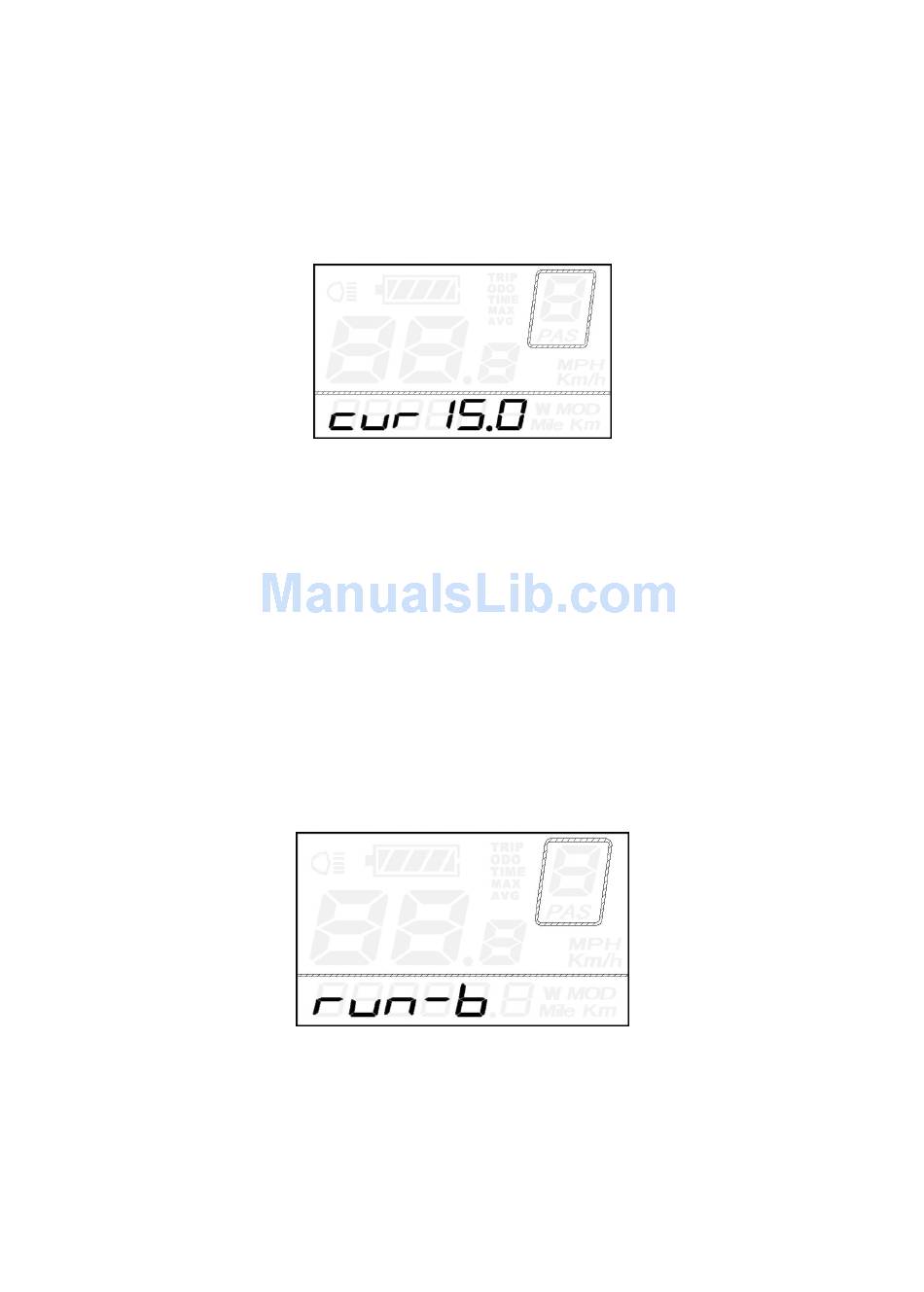

CUR Settings Interface

Direction of PAS Sensor Settings
