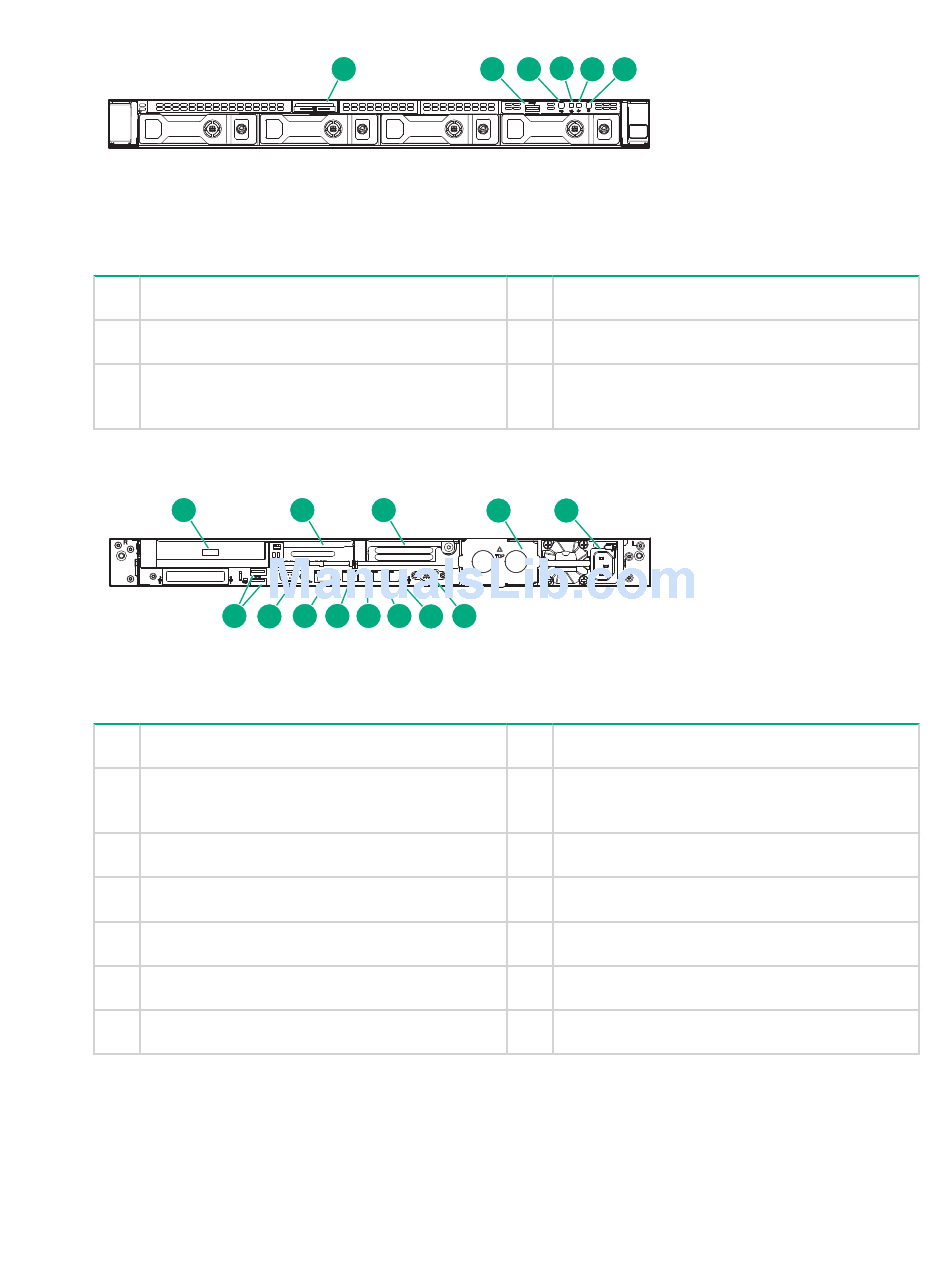

Figure 12: HPE StoreOnce 3100 System front view
1 Pull out label with serial number
3 UID LED
5 Health LED
1
Figure 13: HPE StoreOnce 3100 System rear view
1 Slot 1, RAID controller
3 Slot 3 (not used)
5 Power supply 1
7 1Gb RJ45 Port 4
9 1Gb RJ45 Port 2
11 iLO4 connector
13 USB connectors

HPE StoreOnce 3500 Series

1
2 3
13 11 10 9 8
12
2 3 4
5
2 USB 3.0 port
4 NIC status LED
6 Power on/standby button and system power
LED
4 5
6
7
2 Slot 2 (not used)
4 Power supply 2 (optional, must be
purchased)
6 Video connector
8 1Gb RJ45 Port 3
10 1Gb RJ45 Port 1 (eth0)
12 Serial connector
