Hardware overview reference section

Optional hardware

All models, apart from the HPE StoreOnce 3100 System provide four PCIe slots for the addition of
StoreOnce 10 GbE Network Cards or StoreOnce Fibre Channel cards. These additional PCIe cards may
be pre-installed or supplied in separate boxes. Some cards also require SFP+ transceivers, which will be
supplied with the kit.
IMPORTANT:
Refer to the StoreOnce Optional Hardware Installation and Configuration Guide for detailed
instructions about installing and cabling optional PCIe cards and make sure the correct SFP+
transceivers are fitted, if required.

HPE StoreOnce 5500 System

HPE StoreOnce 5500 System front and rear views, server

For more information about LEDs see the HPE StoreOnce 5500 System Maintenance and Service Guide.

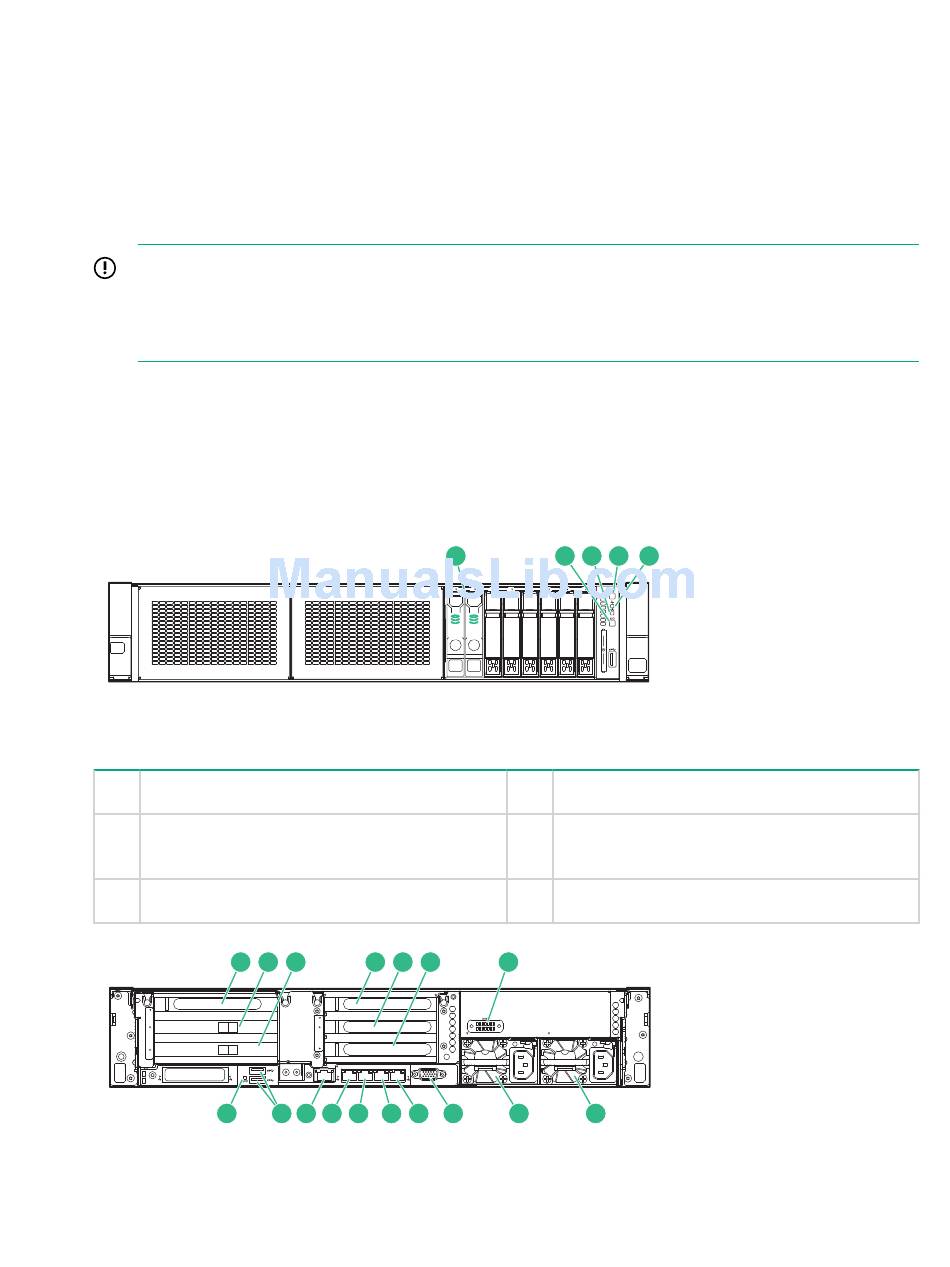

Figure 8: HPE StoreOnce 5500 System server front view
1 OS disks
3 NIC status LED
5 Health LED
1
2
3
4
Figure 9: HPE StoreOnce 5500 System server rear view
68 Hardware overview reference section
1 2 3 4 5
4
5
6
iLO
1 1
17 16 15 14 13 12
1 2
1 2 3 4 5 6 7 8
1 2
2 UID button LED
4 Power on/standby button and system power
LED
6 7
PS2 PS1
4
11 10 9
3 4 5
SID
8
