Sas Cable Lengths For Hpe Storeonce Systems - HPE StoreOnce 3100 Installation And Configuration Manual

1
2
3
4

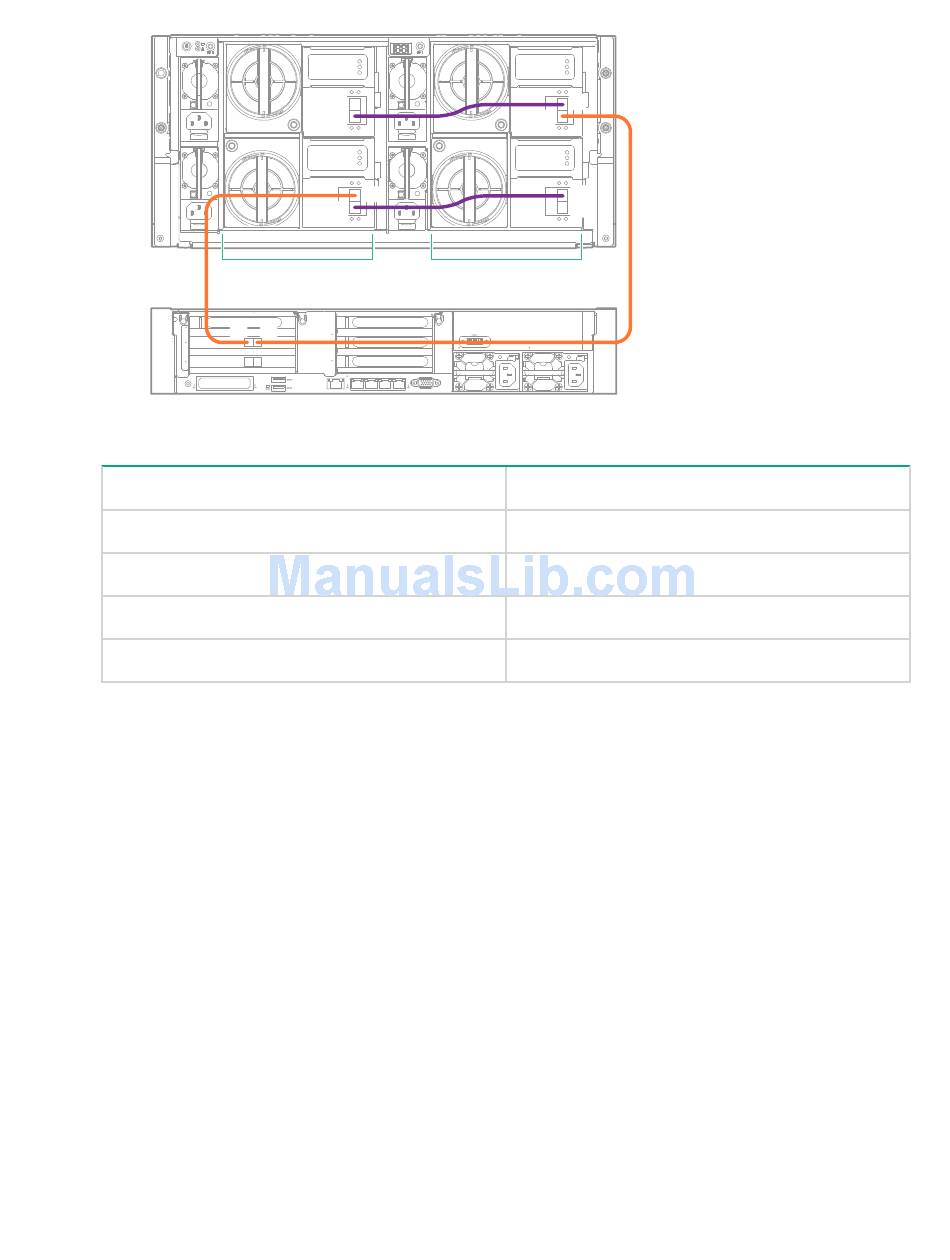

Figure 1: Cabling between server, PCIe slot 2, and bundled enclosure
From
Drawer 2, I/O module A, port 1
Drawer 2, I/O module B, port 1
RAID card in PCI slot 2, port 1
RAID card in PCI slot 2, port 2

SAS cable lengths for HPE StoreOnce Systems

The StoreOnce implementation uses Managed Cables, making it easier to identify faults. The StoreOnce
software verifies that the correct length SAS cables are being used. Mini-SAS HD connectors are used
throughout.
SAS cables 'click' and lock into position when correctly inserted. Three cable lengths are available. The
maximum supported cable length is 2.0 m.
IOM A
P2
P1
IOM B
P2
P1
D2
P2 P1
4
5
6
iLO
1 1 4
IOM A
P2
P1
IOM B
P2
P1
D1
PS2 PS1
To
Drawer 1, I/O module A, port 2
Drawer 1, I/O module B, port 2
Drawer 1, I/O module A, port 1
Drawer 2, I/O module B, port 2
SAS cable lengths for HPE StoreOnce Systems 13
