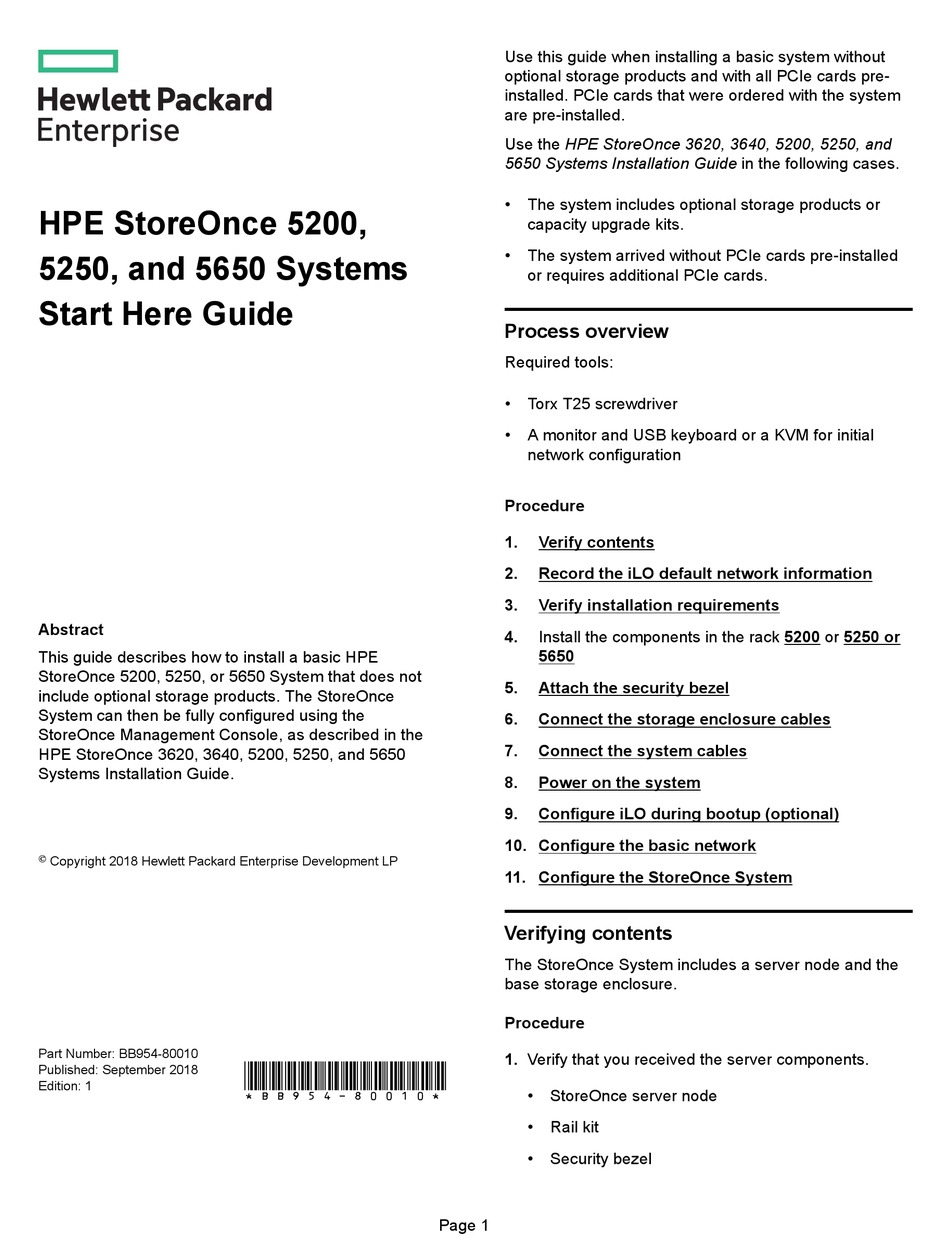

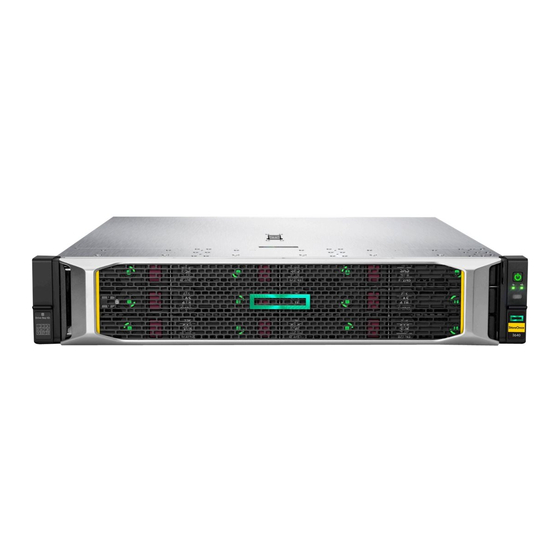

HPE StoreOnce 5200,
5250, and 5650 Systems
Start Here Guide
Abstract
This guide describes how to install a basic HPE
StoreOnce 5200, 5250, or 5650 System that does not
include optional storage products. The StoreOnce
System can then be fully configured using the
StoreOnce Management Console, as described in the
HPE StoreOnce 3620, 3640, 5200, 5250, and 5650
Systems Installation Guide.
©
Copyright 2018 Hewlett Packard Enterprise Development LP
Part Number: BB954-80010
Published: September 2018
Edition: 1
*BB954-80010*
Use this guide when installing a basic system without
optional storage products and with all PCIe cards pre-
installed. PCIe cards that were ordered with the system
are pre-installed.
Use the HPE StoreOnce 3620, 3640, 5200, 5250, and
5650 Systems Installation Guide in the following cases.
•
The system includes optional storage products or
capacity upgrade kits.
•
The system arrived without PCIe cards pre-installed
or requires additional PCIe cards.
Process overview
Required tools:
•
Torx T25 screwdriver
•
A monitor and USB keyboard or a KVM for initial
network configuration
Procedure
1.
Verify contents
2.
Record the iLO default network information
3.
Verify installation requirements
4.
Install the components in the rack 5200 or 5250 or
5650
5.
Attach the security bezel
6.
Connect the storage enclosure cables
7.
Connect the system cables
8.
Power on the system
9.
Configure iLO during bootup (optional)
10. Configure the basic network
11. Configure the StoreOnce System
Verifying contents
The StoreOnce System includes a server node and the
base storage enclosure.
Procedure
1. Verify that you received the server components.
•
StoreOnce server node
•
Rail kit
•
Security bezel
Page 1
Advertisement
Related Manuals for HPE StoreOnce 5250
Summary of Contents for HPE StoreOnce 5250
- Page 1 PCIe cards pre- installed. PCIe cards that were ordered with the system are pre-installed. Use the HPE StoreOnce 3620, 3640, 5200, 5250, and 5650 Systems Installation Guide in the following cases. • The system includes optional storage products or HPE StoreOnce 5200, capacity upgrade kits.
-
Page 2: Installation Prerequisites
Recording the iLO default network or lifting equipment to install the storage enclosure safely. information 3. StoreOnce 5250 and 5650: You can leave the disks Procedure in the base enclosure during installation, but do not Record the iLO default network information from the add expansion disks until the storage enclosure is label on top of the server node. - Page 3 Procedure Install the server rails, as illustrated on the installation instructions that ship with the rail kit. NOTE: To leave room for future storage expansion, install the base storage enclosure under the server node. The system has a maximum of three enclosures above the server node and three enclosures under it.
- Page 4 CAUTION: The front CTO screw must be and pulling units from the rack. Units can slip and attached at all times when racked. fall, damaging the HPE StoreOnce System or causing personal injury. Hewlett Packard Enterprise is not responsible for damage or injury caused by mishandling the HPE StoreOnce System.
-
Page 5: Attaching The Security Bezel
6. Insert the two locking nuts for the server node into the rack; one on each front column. 3. Holding the handles, lift the storage enclosure onto 7. Install the server node into the rack and secure it the rails and push it into position. using the thumbscrews on the front bezel of the unit. -
Page 6: Connecting The System Cables
Connect each power cable to a different PDU. Procedure • StoreOnce 5250 and 5650: Connect four power • StoreOnce 5200: Use the supplied HD SAS cables cables to each enclosure. Connect each power cable to connect the node server RAID controller card to to a different PDU. - Page 7 The wizards runs automatically the first time a user browses to the system IP address. IMPORTANT: If the service set does not start For configuration instructions, see the HPE StoreOnce when the system boots, the SAS cabling may 3620, 3640, 5200, 5250, and 5650 System Installation be incorrect.
- Page 8 Procedure 1. Navigate to http://www.hpe.com/info/storeonce/ docs. 2. In Models / Subcategories, select your product. 3. To filter the entries, select the types of documents and your language. Page 8...
