#3
#1
#2
#4

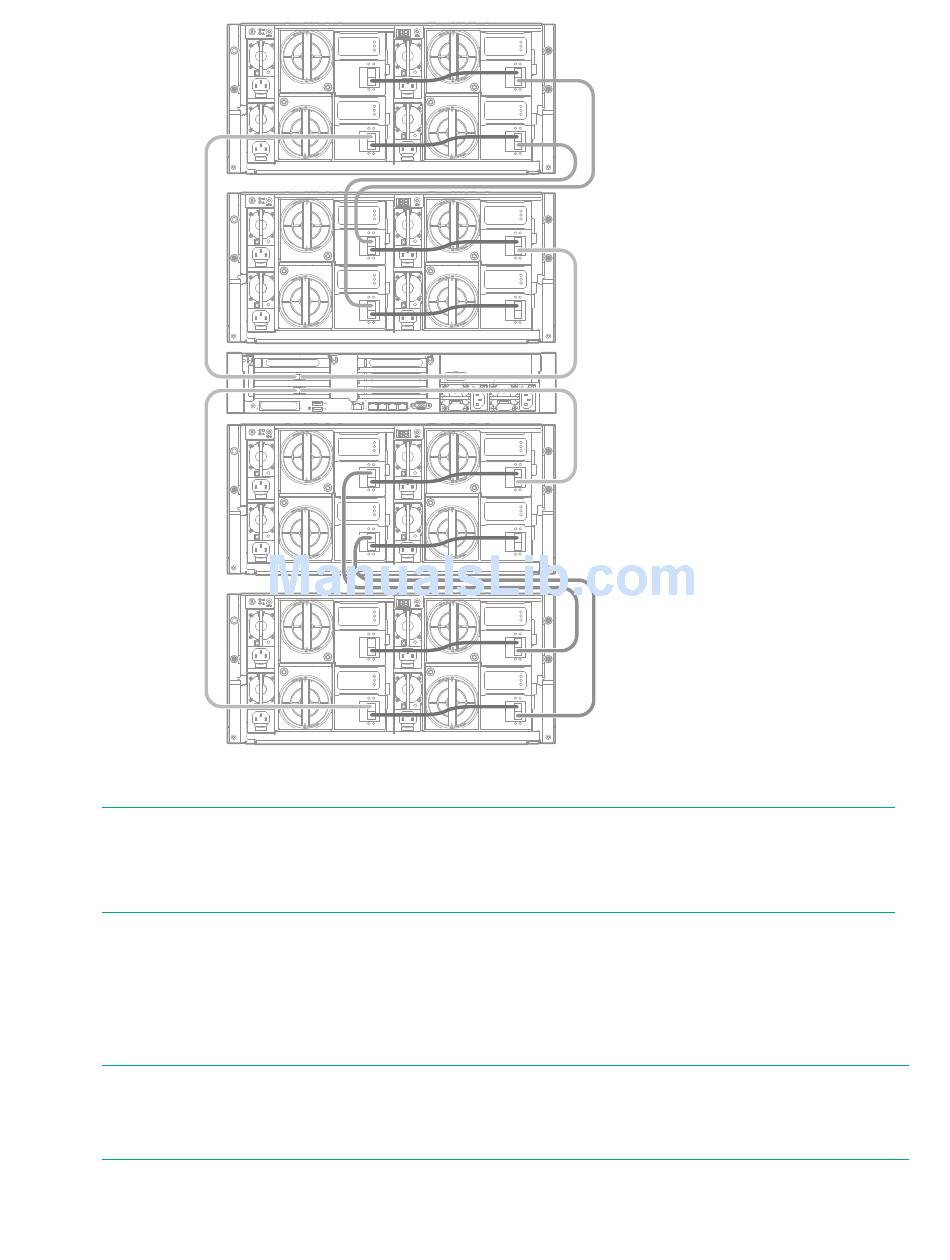

Figure 2: Cabling showing two enclosures above and two enclosures below the server
NOTE:
Enclosure #1 and Enclosure #3 are in Storage Cluster 1, connected to the RAID controller card in slot 2.
Enclosure #2 and Enclosure #4 are in Storage Cluster 2, connected to the RAID controller card in slot 3.

Up to four enclosures below the server

The second recommended configuration has the server at the top and all enclosures below it. It requires
one 1U support shelf, which should be installed below the last enclosure. This configuration provides
easier access to the server when cabling multiple enclosures. There is a 1U support shelf underneath the
lowest disk enclosure.
NOTE:
If you choose not to follow one of the recommended configurations, your system may experience errors
with the StoreOnce SAS check function that checks SAS cable integrity.
16 Up to four enclosures below the server
1
4
2 5
6
3
iLO
4 1 1 4
PS2 PS1
