CVM-E3-MINI
1�- VERIFICATION UPON RECEPTION
Check the following points when you receive the device:
a) The device meets the specifications described in your order.
b) The device has not suffered any damage during transport.
c) Perform an external visual inspection of the device prior to switching it on.
d) Check that it has been delivered with the following:
- An installation guide,
- 1 retainer to secure the device to the DIN rail,
- 4 connectors.
- 2 terminal covers.
If any problem is noticed upon reception, immediately contact the transport
company and/or CIRCUTOR's after-sales service.

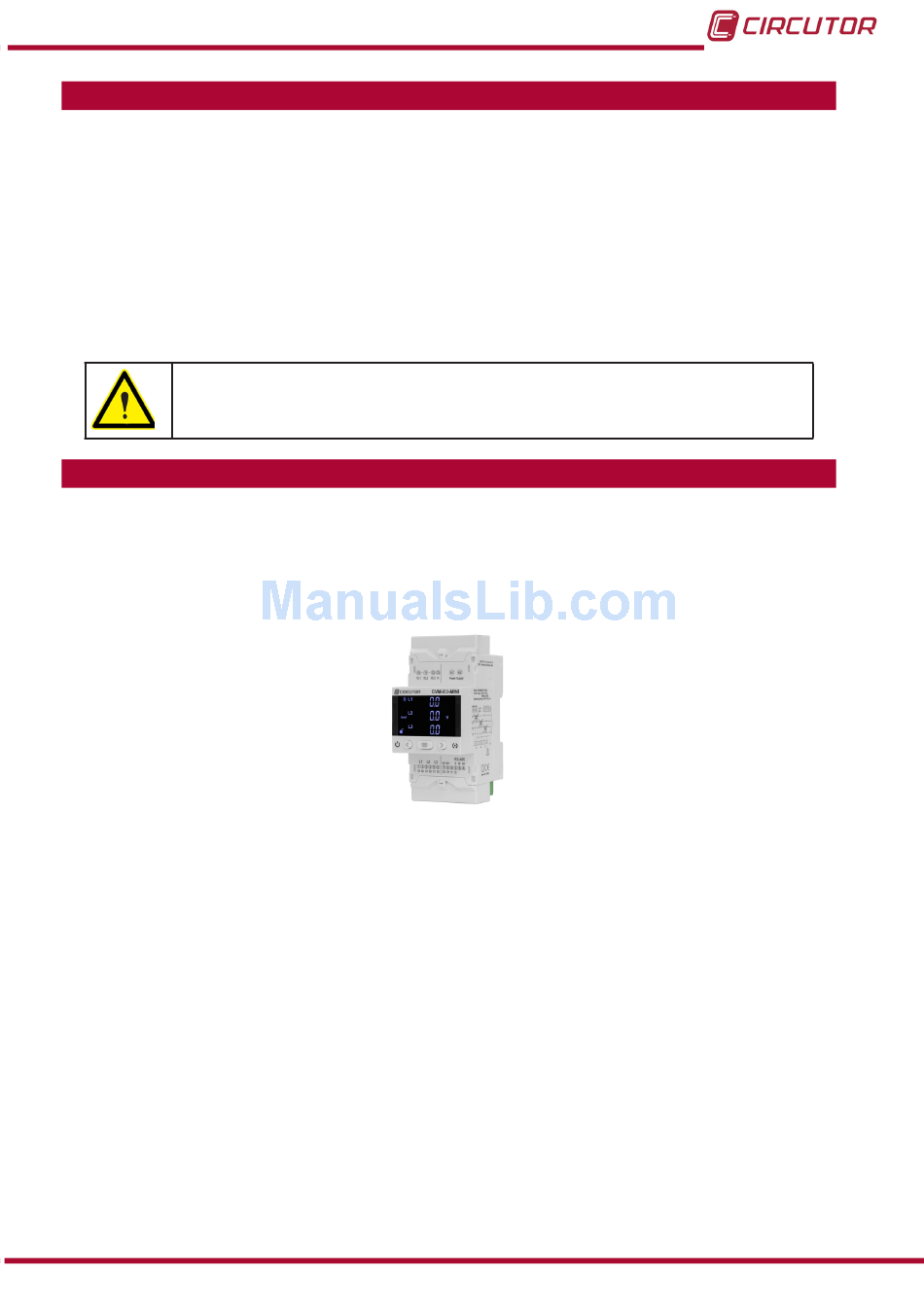

2�- PRODUCT DESCRIPTION
The CVM-E3-MINI device measures, calculates and displays the main electrical parameters
of the following networks: single-phase, two-phase, with and without neutral, balanced three-
phase, with ARON measurements or unbalanced. The measurement will be taken in RMS with
the three AC voltage inputs and three current inputs.
The device features:
- 3 keys that allow you to browse between the various screens and program the device.
- 2 indicator LEDs: CPU and ALARM.
- LCD display, displays all parameters,
- 1 digital inputs, used to select the tariff or detect the logic state of external signals.
- 1 digital outputs, fully programmable.
- RS-485 Communications, with two serial protocols: MODBUS RTU© and BACnet.
Instruction Manual
7
