3�5�5�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO PHASE, WITH A 2-WIRE
CONNECTION�
16
Measurement system:
V V
L1 L2
a b
A B
L1
L2

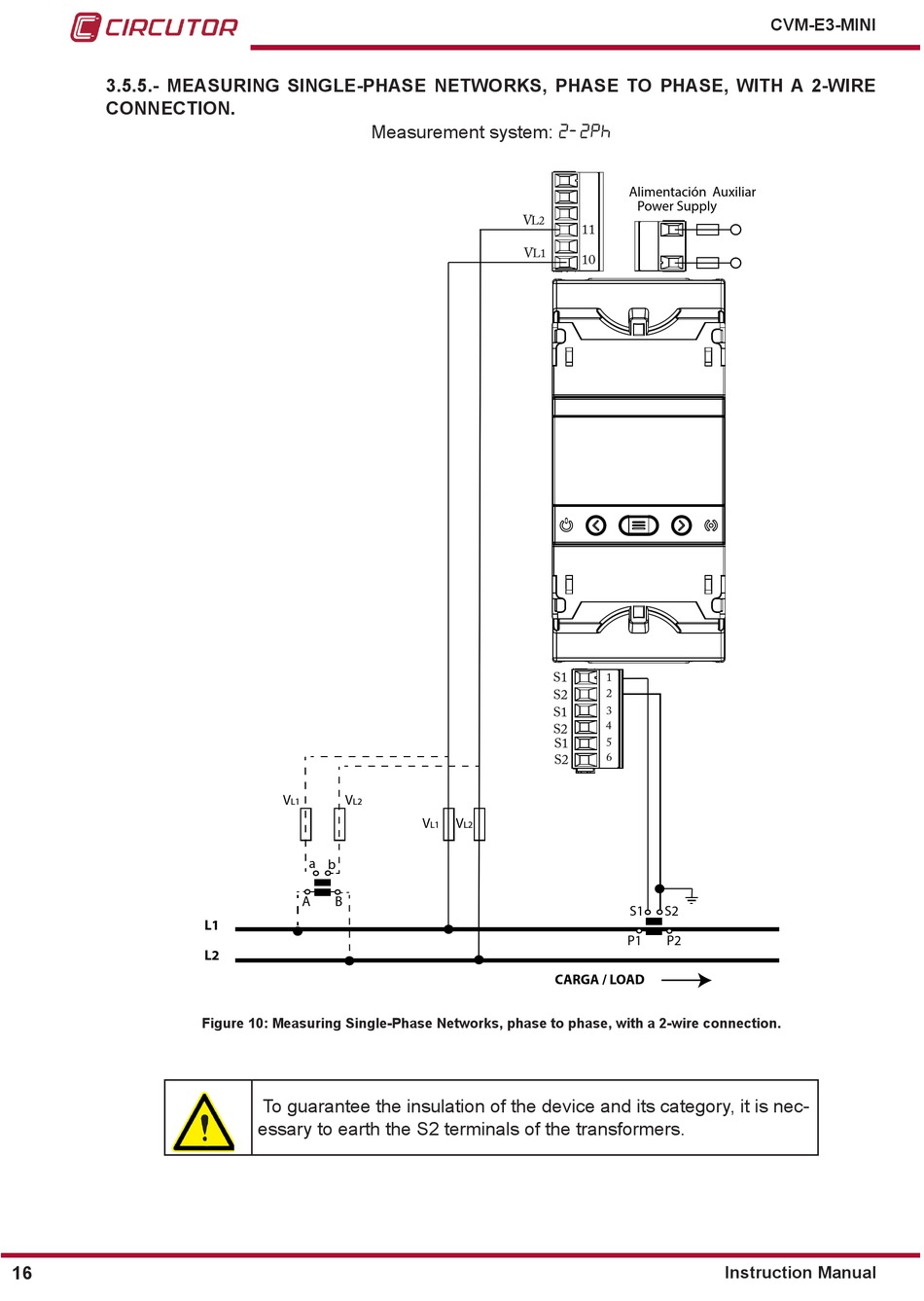

Figure 10: Measuring Single-Phase Networks, phase to phase, with a 2-wire connection�
To guarantee the insulation of the device and its category, it is nec-
essary to earth the S2 terminals of the transformers.
2-2Ph
V
L2
11
V
L1
10
S1
S2
S1
S2
S1
S2
V V
L1 L2
CARGA / LOAD
CVM-E3-MINI
Alimentación Auxiliar
Power Supply
1
2
3
4
5
6
S1 S2
P1 P2
