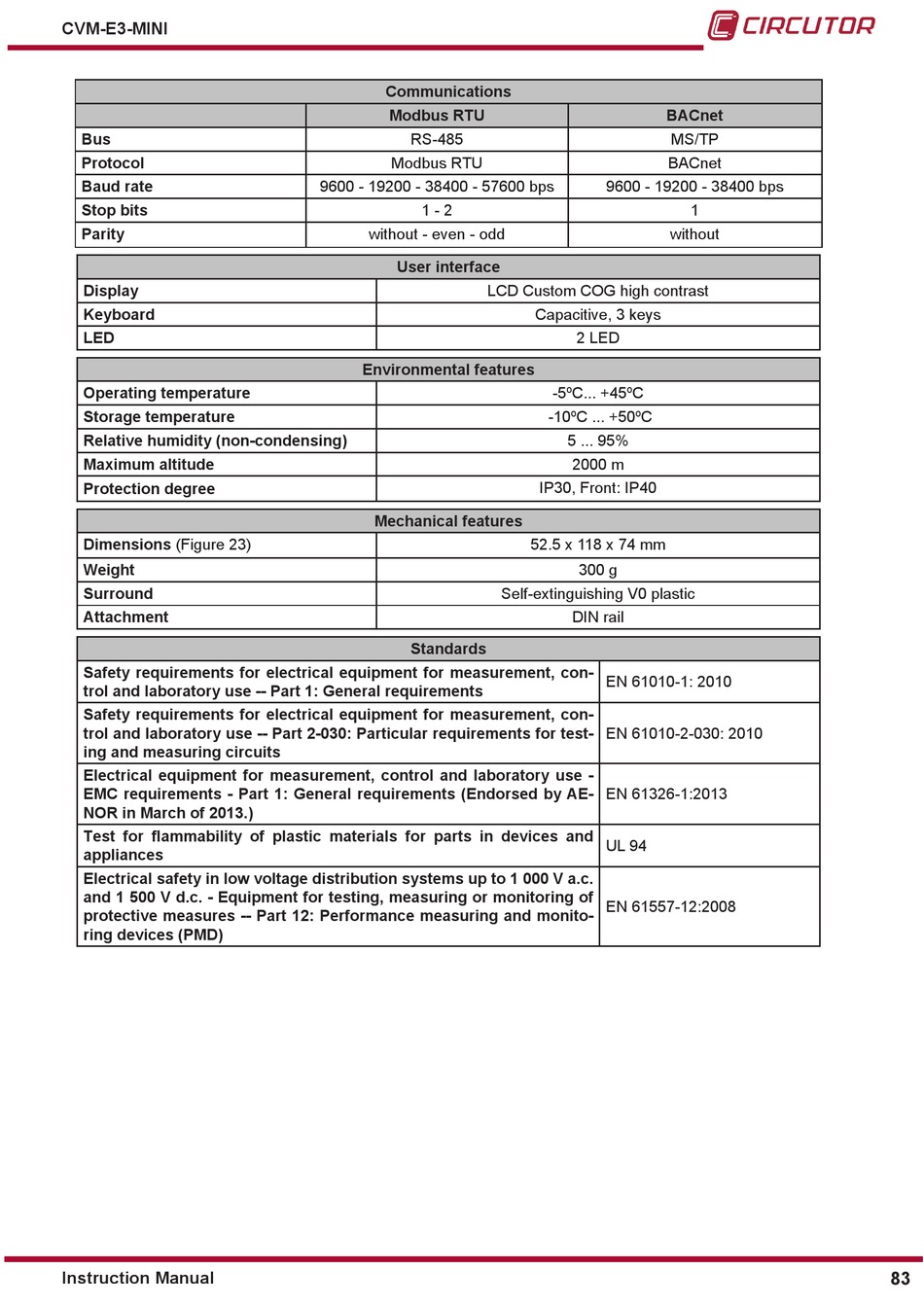

Circutor CVM-E3-MINI Instruction Manual page 83

CVM-E3-MINI
Bus
Protocol
Baud rate
Stop bits
Parity
Display
Keyboard
LED
Operating temperature
Storage temperature
Relative humidity (non-condensing)
Maximum altitude
Protection degree
Dimensions (Figure 23)
Weight
Surround
Attachment
Safety requirements for electrical equipment for measurement, con-
trol and laboratory use -- Part 1: General requirements
Safety requirements for electrical equipment for measurement, con-
trol and laboratory use -- Part 2-030: Particular requirements for test-
ing and measuring circuits
Electrical equipment for measurement, control and laboratory use -
EMC requirements - Part 1: General requirements (Endorsed by AE-
NOR in March of 2013�)
Test for flammability of plastic materials for parts in devices and
appliances
Electrical safety in low voltage distribution systems up to 1 000 V a�c�
and 1 500 V d�c� - Equipment for testing, measuring or monitoring of
protective measures -- Part 12: Performance measuring and monito-
ring devices (PMD)
Instruction Manual
Communications
Modbus RTU
RS-485
Modbus RTU
9600 - 19200 - 38400 - 57600 bps
1 - 2
without - even - odd
User interface
LCD Custom COG high contrast
Environmental features
Mechanical features
Standards
BACnet
MS/TP
BACnet
9600 - 19200 - 38400 bps
without
Capacitive, 3 keys
2 LED
-5ºC... +45ºC
-10ºC ... +50ºC
5 ... 95%
2000 m
IP30, Front: IP40
52.5 x 118 x 74 mm
300 g
Self-extinguishing V0 plastic
DIN rail
EN 61010-1: 2010
EN 61010-2-030: 2010
EN 61326-1:2013
UL 94
EN 61557-12:2008
1
