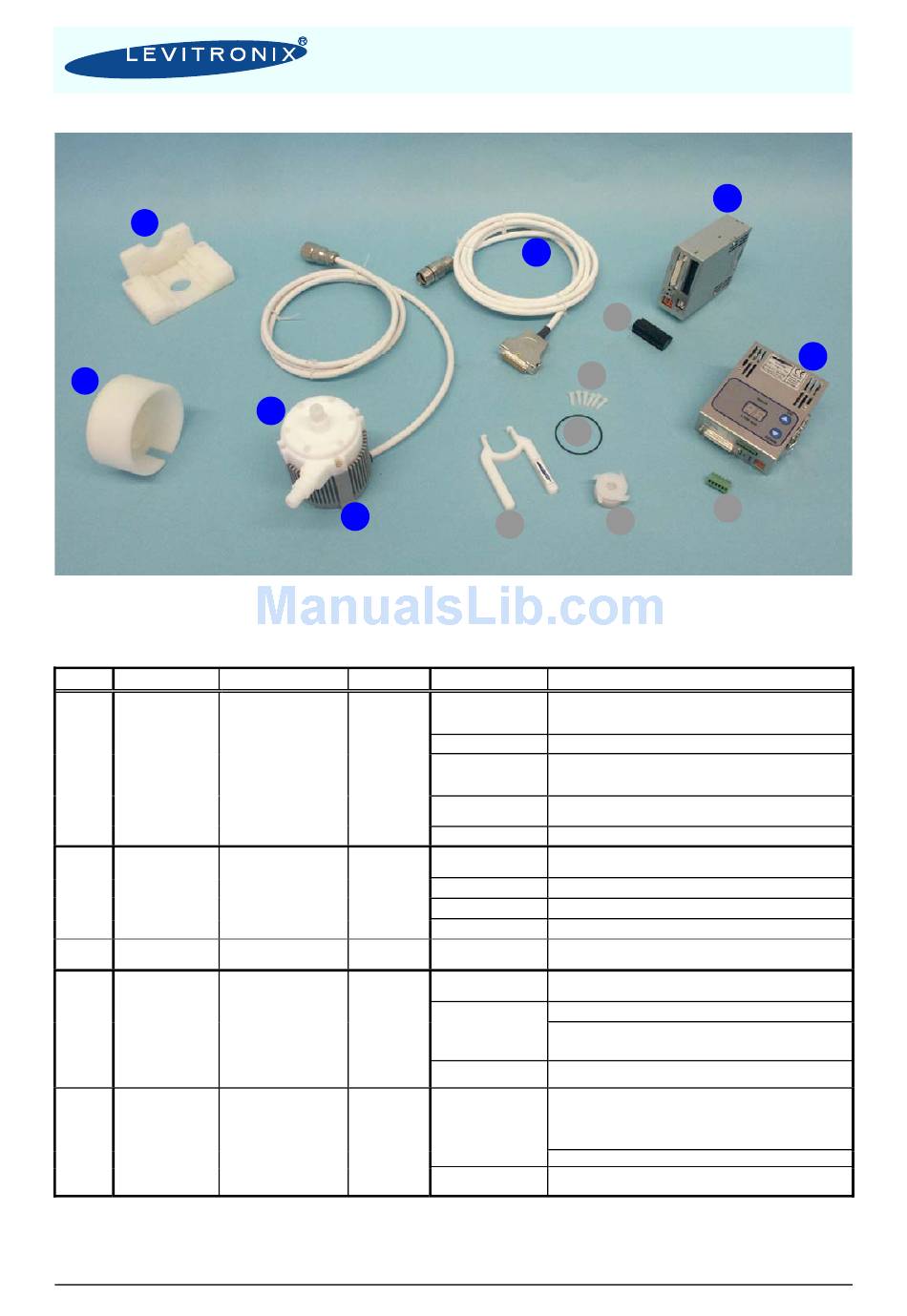

Figure 3: Pump system BPS-200 with standard components
Pos. Component Article Name
1 Pump Head LPP-200.1
2a Motor BSM-1.3
2b Motor BSM-1.4
Standalone
3a Controller LPC-200.1
(User Panel)
Extended
3b Controller LPC-200.2
(PLC and USB)
PL-4012-00, Rev01, DCO# 09-188
1
2
Article #
100-90281
100-10004
100-10005
100-30008
(Controller with
Enable
connector incl. in
100-90335)
100-30009
(Controller with
PLC connector
incl. in
100-90336)
Table 1: Specification of standard components
®
1: Kalrez is a registered trademark of DuPont Dow Elastomers
4
7b
6c
6b
6d
Characteristics Value / Feature
Impeller
PFA
Pump Casing
PTFE
®
Sealing Ring
Kalrez perfluoroelastomer
Fittings
Flaretek ½"
Max. Diff.-Pressure
2.6 bar / 37.7 psi
Max. Flow
21 liters/min / 5.5 gallons/min
Max. Viscosity
50 cP
Max. Static Pressure 8 bar / 116 psi @ 25
(mounted on motor)
3.9 bar / 57 psi @ 90
0 0
Max. Liquid Temp.
90 C / 194
ETFE coated Aluminum
Housing
waterproofed (IP67)
Max. Speed
10000 rpm
Thermal Protection
Internal temp. sensor with max temperature = 90°C (194°F)
Cable / Connectors
1x 2m cables with FEP jacket / circular IP-67 (needs Pos. 4)
1x 5m cables with FEP jacket / D-SUB
Cable / Connectors
(direct connection to controller, no adaptor cable needed)
Electrical Power /
200 W / 24 - 48V DC
Voltage
Panel to set speed with automatic storage on internal EEPROM
Interfaces for
Standalone Controller
PLC with
PLC connector (Pos. 7a) is incl. with controller in article package
Accessories
100-90336
PLC with
Interfaces for
Extended Controller
USB interface (for service and system monitoring)
PLC connector (Pos. 7b) is incl. with controller in article package
Accessories
100-90336
User Manual for BPS-200
www.levitronix.com
3b
7a
6a
1
0 0
C / 77 F liquid temp.
0 0
C / 194 F liquid temp.
F
1x analog input („Speed") 4 - 20 mA
1x digital input („Enable" 0 - 24 V (optocoupler)
1x digital output („Status") 0 - 24 V (relais)
- up to 4 digital inputs 0 - 24V (optocoupler)
- up to 4 digital outputs 0 - 24 V (relais)
- up to 2 analog inputs 4 - 20mA
- up to 2 analog inputs 0 – 10 V
- up to 2 analog outputs 0 – 5 V
