6.2 System Operation with Controller LPC-200.2 (PLC version)

6.2.1 State Diagram of the PLC Interface

Power On
OFF
Reset: active
Status : not active
Enable: active
Enable: not active
Reset: not active
ON ERROR
(Speed Control Mode)
Enable: not active
Internal Error
Status : Active Status : not active
Error : not active Error : active
Process Mode: Process Mode:
not active active
ON
(Process Control
Internal Error
Mode)
Status : Active
Error : not active

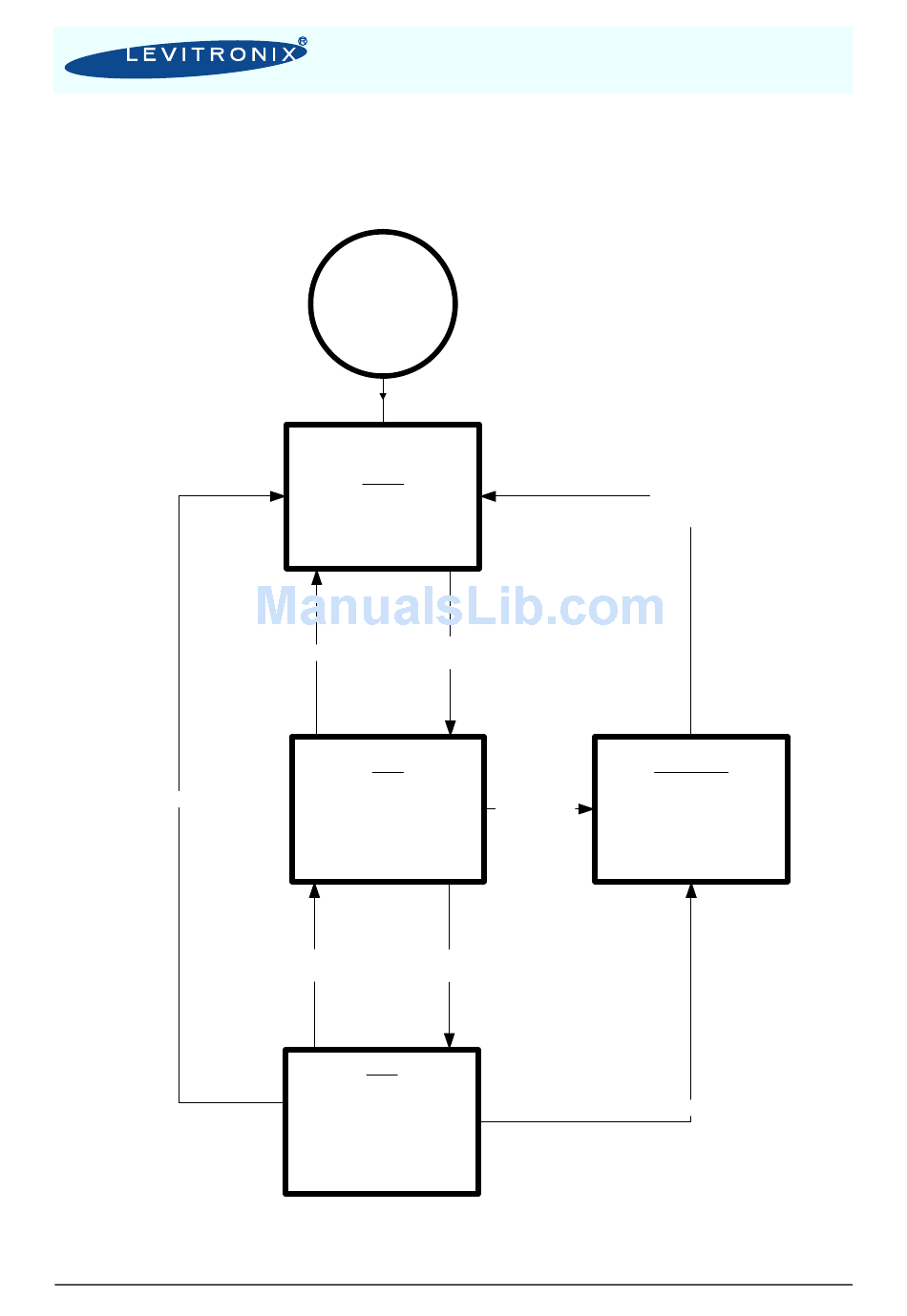

Figure 23: PLC interface state diagram for standard firmware C2.48
(For other configurations refer to alternate firmware documentation)
