4 Engineering Information

4.1 Sealing and Material Concept

2
5
9
System
Component
Pump head
LPP-200.1
Motor BSM-1.3
Table 5: Materials used in the BSM-1.3 motor and LPP-200.1 pump head
PL-4012-00, Rev01, DCO# 09-188
8

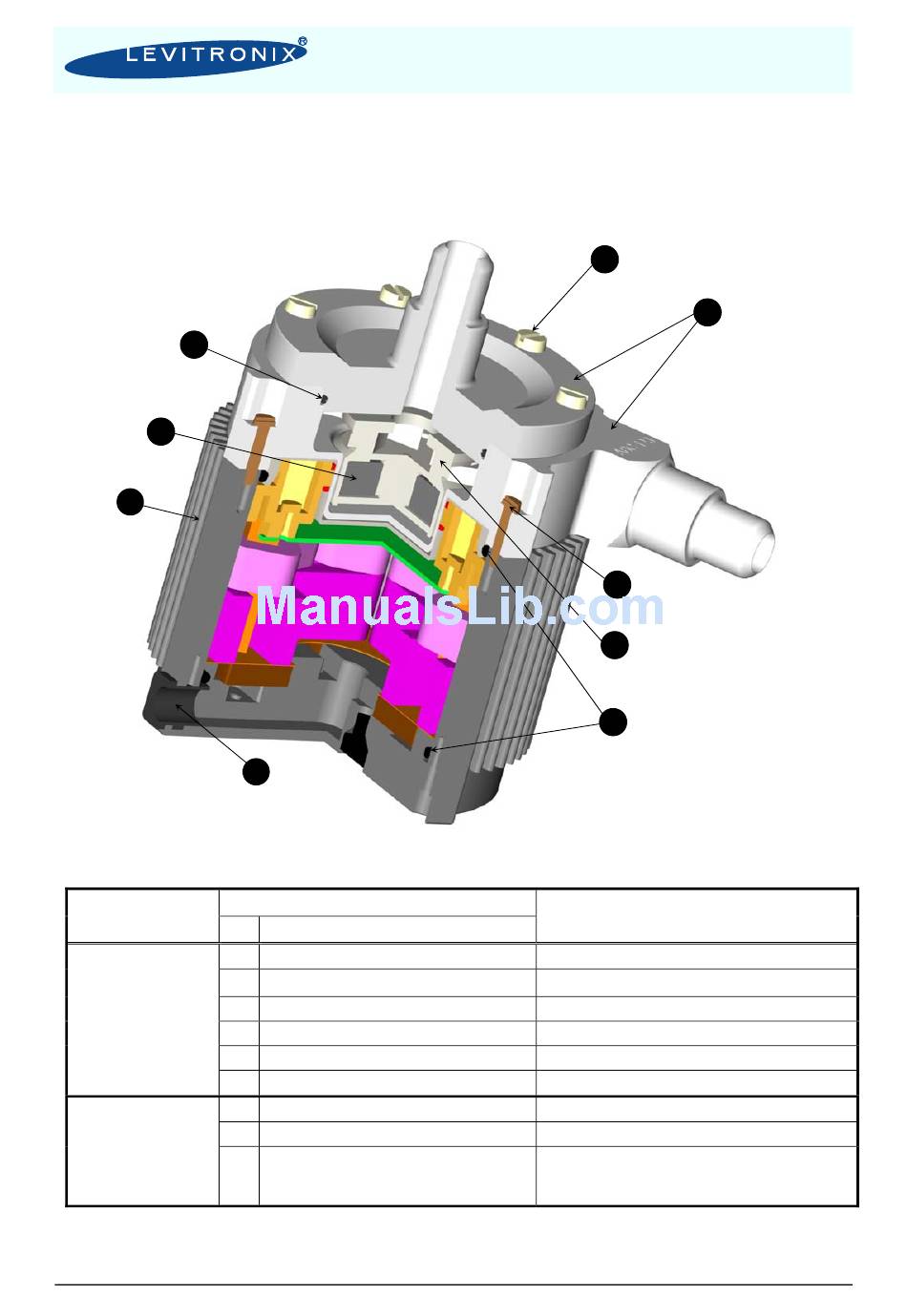

Figure 7: Sealing and material concept
Item
No
Description
1
Pump casing (lid and bottom)
2
Static sealing O-ring of pump casing
3
6 screws for pump casing
4
Impeller LPI-200.1
5
Rotor magnet
6
4 screws for pump/motor mounting
7
Sealing O-ring for motor housing
8
Cable bushing
9
Motor housing
(For other configurations refer to according specifications and drawings)
User Manual for BPS-200
www.levitronix.com
3
1
6
4
7
Materials
PTFE
®
Kalrez
PVDF
PFA
NdFe (rare-earth material)
PEEK
FPM (= FKM)
FPM, cable jacket is FEP
ETFE coating, waterproof (IP-67)
Coils and electromagnetic circuit potted with
an epoxy compound (UL94 V0).
10
