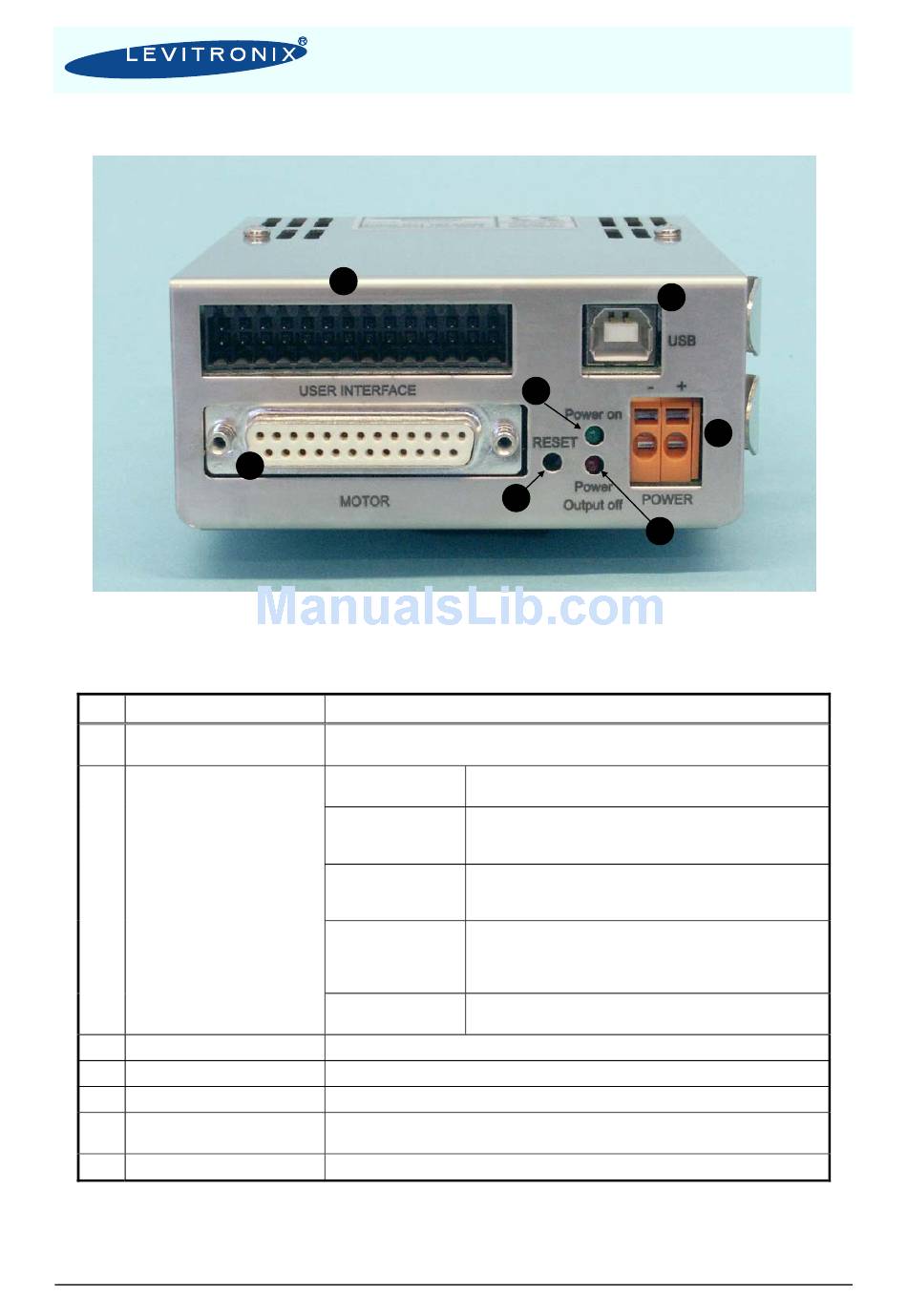

Figure 17: Overview of the controller LPC-200.2 for extended operation
Interface (as labeled)
"MOTOR"
1
"USER INTERFACE"
2
"USB"
3
"POWER INPUT"
4
"Power on" Green LED
5
"Power Output off"
6
Red LED
"RESET" Button
7
Table 7: Description of interfaces of LPC-200.2 controller
PL-4012-00, Rev01, DCO# 09-188
2
1
Description
- Position, field and temperature sensor signals from motor
- Drive and bearing currents of the motor
2 Analog Input
2 Analog Input
2 Analog Output
4 Digital Input
4 Digital Output
USB interface
DC power input -> 24V
LED is on if supply voltage of signal electronics is present.
LED is off if the switched output stage of the controller is enabled. If the LED is on,
the bearing and drive coils of the motor carry no current.
Reset button of the controller stage
5
7
- Analog current input: 4 – 20 mA
- 450 Ohm shunt input
- Analog voltage input 0 – 10 V
- Direct connection, no galvanic isolation
- 7.8 kΩ input resistance
- Analog voltage output: 0 – 10 V
- Direct connection, no galvanic isolation
- Max. output current: 2mA
- Galvanic isolation with optocoupler
- Switching voltage / current: minimal 10 V / 7 mA,
Typical 24 V / 16 mA, maximal 30 V / 20 mA
- Input resistance: R
= 2.2 kΩ
IN
- Galvanic isolation with relay
- Relay: 1A / 30VDC, 0.3A / 125 VAC
User Manual for BPS-200
