Creating Subscriptions Between Transmitters and Receivers
1. Ensure the host PC and AXI are connected to the same network.
2. From the start menu select:
All Programs > Audinate > Dante Controller > Dante Controller
The
Dante Controller - Network View
Dante Controller auto-discovers Dante devices on the network and advertises itself to
allow other Dante-enabled devices to communicate with it. Transmitters connect to
receivers using the connection matrix.
Figure 27.
3. To show the transmitters of a Dante device, click the
in the
above). The
4. To show the receivers of a Dante device, click the
the
Dante Receivers
5. Click the intersection of the desired transmitter and receiver (
Example:
Analog-S/PDIF Out 1
A check mark at the intersection indicates the subscription is made. A check mark also
appears next to the receiver channel.

Disconnecting Inputs from Outputs

To remove a subscription, click the intersection between the receiver and the transmitter.
NOTE: After making changes to Dante network routing such as connections
(subscriptions), device names, or channel labels, wait at least 5 seconds before
disconnecting or powering down the devices. This ensures that the new information
is properly saved to those devices. Device level configuration such as sample rates,
latency, and clock settings are saved instantly.

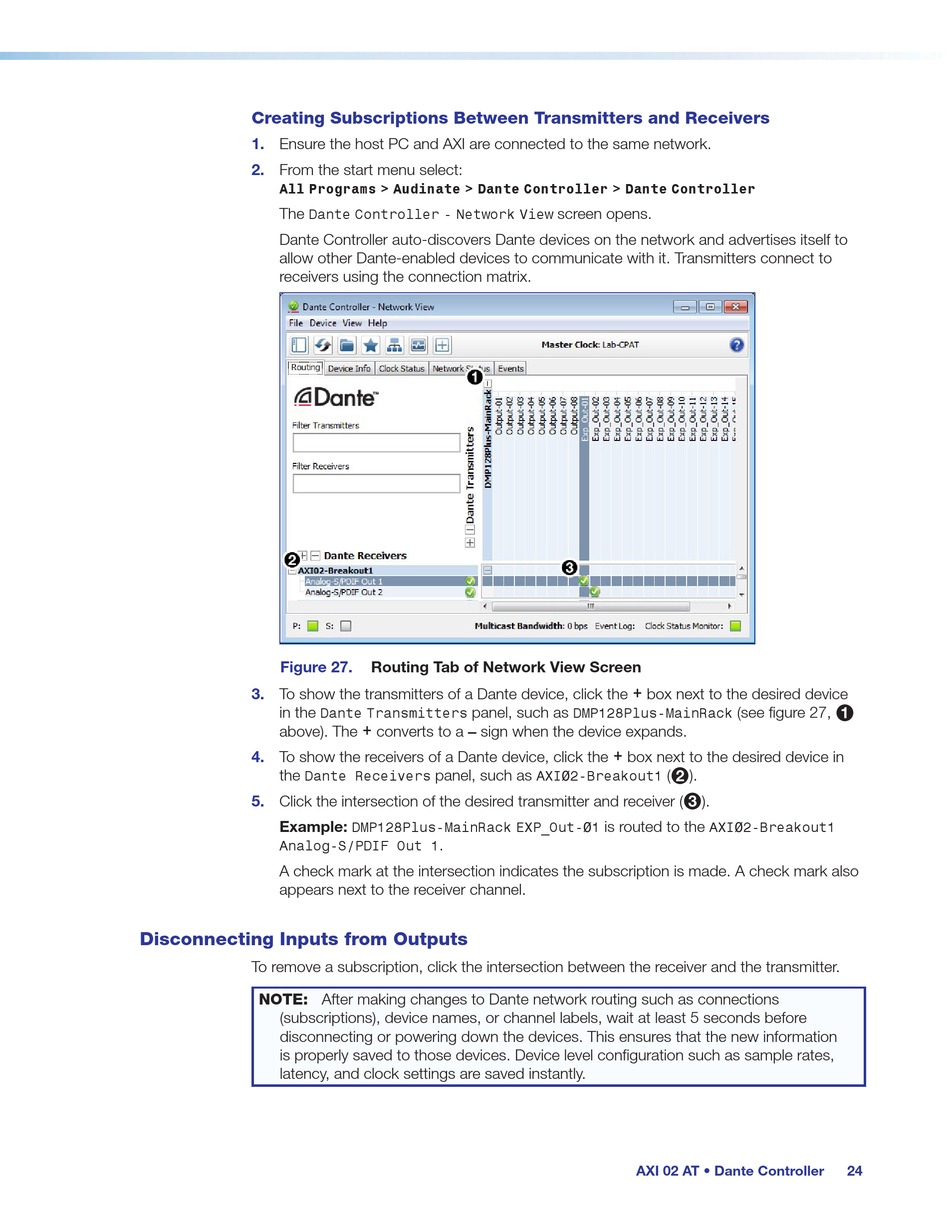

Routing Tab of Network View Screen
panel, such as
Dante Transmitters
+
converts to a sign when the device expands.
–
panel, such as
DMP128Plus-MainRack EXP_Out-01
.
screen opens.
+
box next to the desired device
DMP128Plus-MainRack
+
box next to the desired device in
( ).
AXI02-Breakout1 2
).
3
is routed to the
AXI02-Breakout1
AXI 02 AT • Dante Controller
