6. Click the
Device Config
7. In the
Rename Device
spaces are allowed in the name. Names should be significant identifiers. For example,
enter
AXI02-Breakout1
8. Click ( ). A confirmation prompt opens.
Apply 3

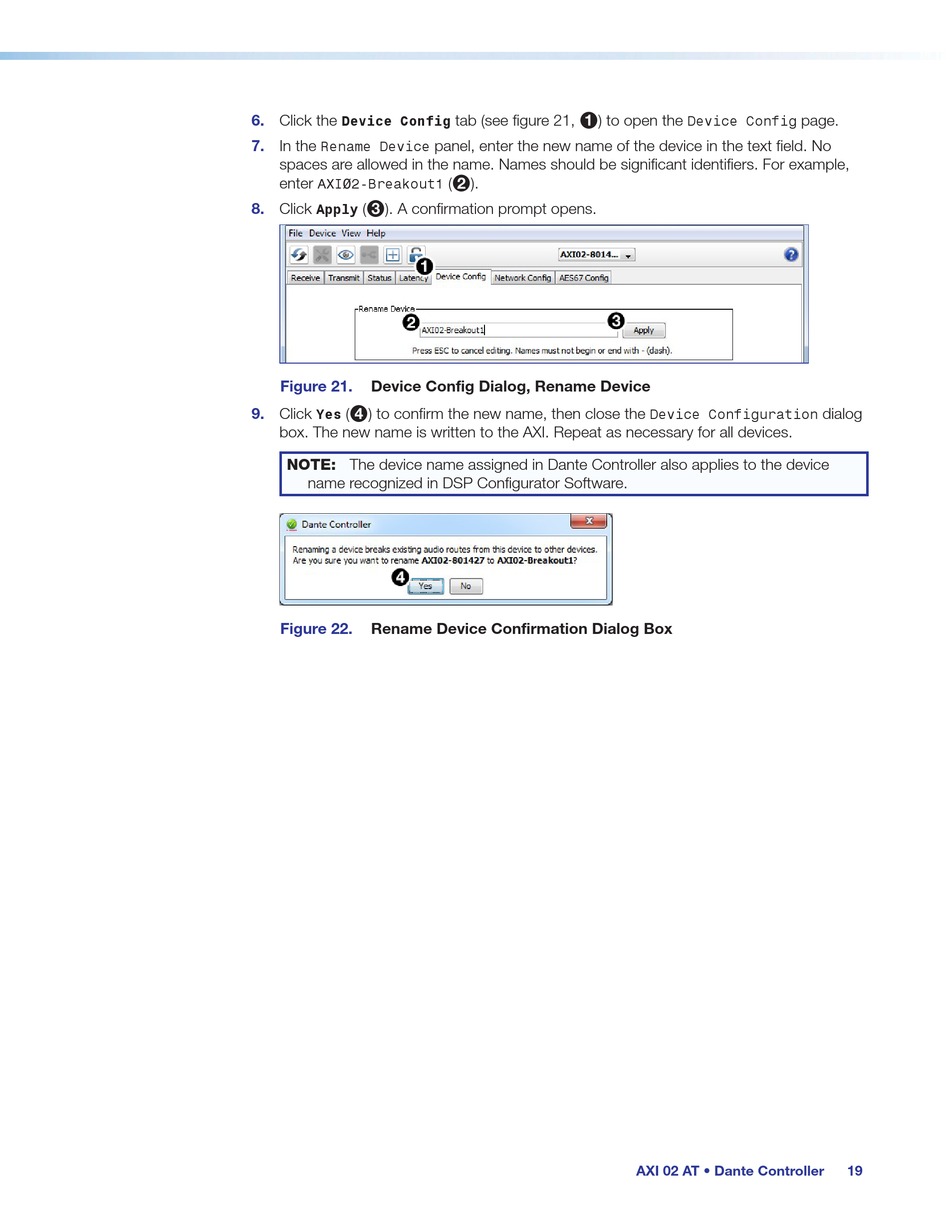

Figure 21. Device Config Dialog, Rename Device
9. Click ( ) to confirm the new name, then close the
Yes 4
box. The new name is written to the AXI. Repeat as necessary for all devices.
NOTE: The device name assigned in Dante Controller also applies to the device
name recognized in DSP Configurator Software.
Figure 22. Rename Device Confirmation Dialog Box
tab (see figure 21, ) to open the
1
panel, enter the new name of the device in the text field. No
( ).
2
page.
Device Config
Device Configuration
AXI 02 AT • Dante Controller
dialog
19
