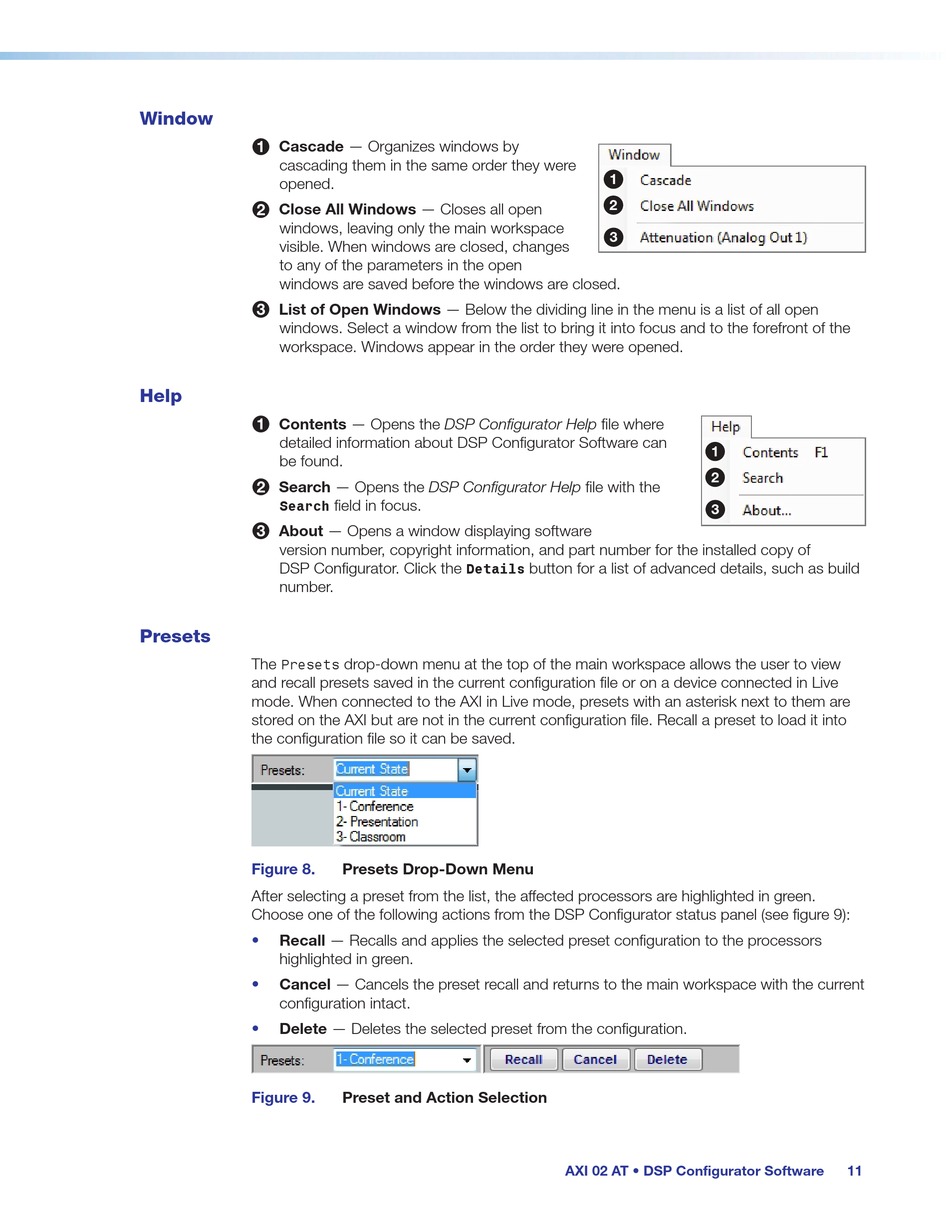

Window

Cascade — Organizes windows by
1
cascading them in the same order they were
opened.
Close All Windows — Closes all open
2
windows, leaving only the main workspace
visible. When windows are closed, changes
to any of the parameters in the open
windows are saved before the windows are closed.
List of Open Windows — Below the dividing line in the menu is a list of all open
3
windows. Select a window from the list to bring it into focus and to the forefront of the
workspace. Windows appear in the order they were opened.

Help

Contents — Opens the DSP Configurator Help file where
1
detailed information about DSP Configurator Software can
be found.
Search — Opens the DSP Configurator Help file with the
2
Search
About — Opens a window displaying software
3
version number, copyright information, and part number for the installed copy of
DSP Configurator. Click the
number.

Presets

The
Presets
and recall presets saved in the current configuration file or on a device connected in Live
mode. When connected to the AXI in Live mode, presets with an asterisk next to them are
stored on the AXI but are not in the current configuration file. Recall a preset to load it into
the configuration file so it can be saved.
Figure 8.
After selecting a preset from the list, the affected processors are highlighted in green.
Choose one of the following actions from the DSP Configurator status panel (see figure 9):
• Recall — Recalls and applies the selected preset configuration to the processors
highlighted in green.
• Cancel — Cancels the preset recall and returns to the main workspace with the current
configuration intact.
• Delete — Deletes the selected preset from the configuration.
Figure 9.
field in focus.
Details
drop-down menu at the top of the main workspace allows the user to view
Presets Drop-Down Menu
Preset and Action Selection
1
2
3
button for a list of advanced details, such as build
AXI 02 AT • DSP Configurator Software
1
2
3
