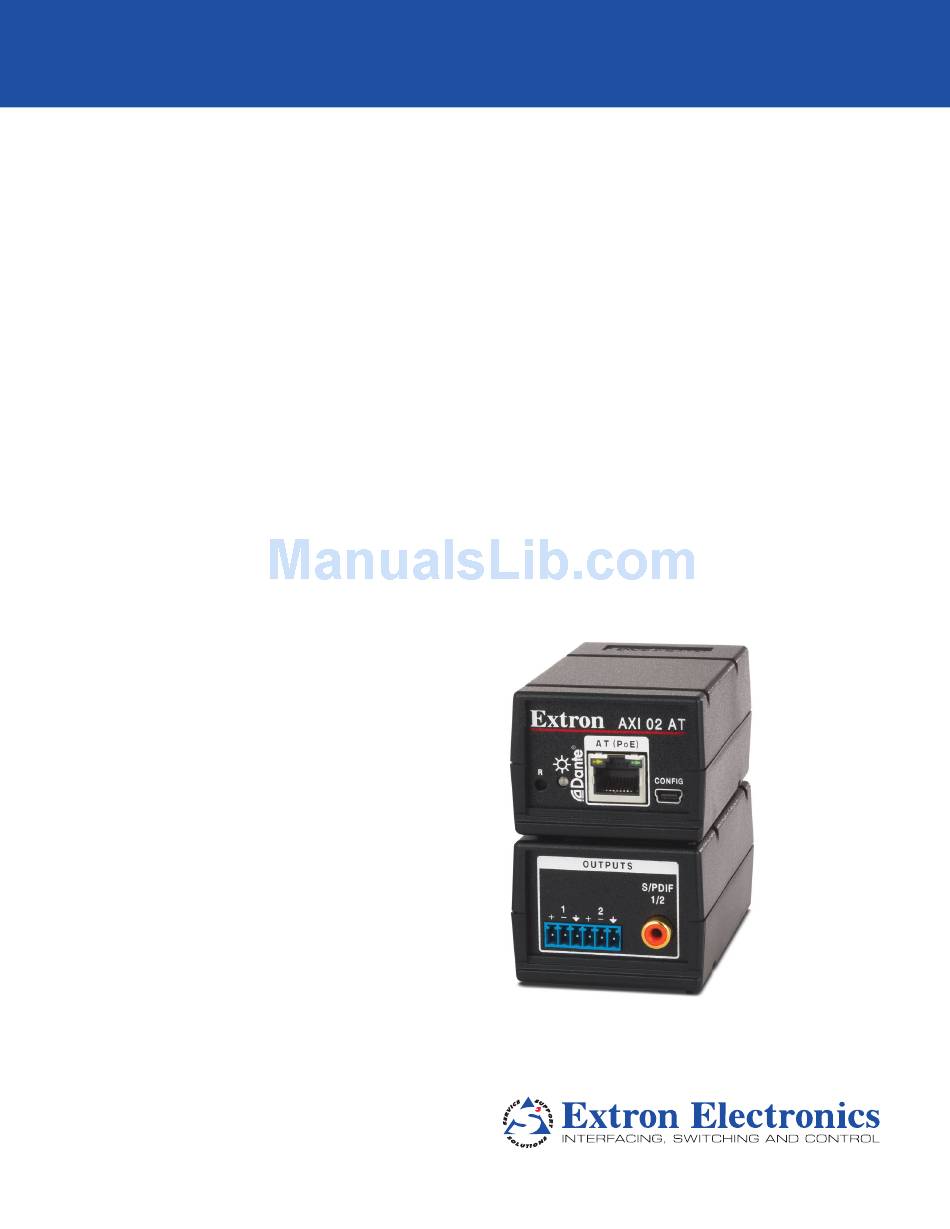

- Page 1 User Guide Audio Products Mixers and Processors AXI 02 AT Audio Expansion Interface 68-3070-01 Rev. A 02 18...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad WARNING: This symbol, ,when used on the product, is avvertire l’utente della presenza di tensione non isolata pericolosa intended to alert the user of the presence of uninsulated dangerous all’interno del contenitore del prodotto che può... - Page 3 ついては、 エクス トロンのウェブサイ ト より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2018 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks( ®...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 5 Specifications Availability Product specifications are available on the Extron website, www.extron.com. Extron Glossary of Terms A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.
-
Page 6: Table Of Contents
Device Name ..........17 Applications Diagrams ......... 3 Receiver and Transmitter Names ....17 Dante Controller Naming Conventions ... 17 Renaming the AXI 02 AT in Dante Controller .. 18 Installation and Operation ......4 Renaming a Receiver or Transmitter....20 Mounting ............. -
Page 7: Introduction
Introduction This section provides an overview of this guide and the features of the Extron AXI 02 AT Audio Expansion Interface. This section covers the following topics: • About this Guide • About the AXI 02 AT Features • •... -
Page 8: Features
96 kHz — Professional converters fully preserve the integrity of the original audio signal with selectable sampling rates via Dante Controller. Power over Ethernet — Allows the AXI 02 AT to receive power and audio over a •... -
Page 9: Applications Diagrams
DMP 128 Plus C AT Digital Matrix Processor INPUTS OUTPUTS ACTIVITY CLIP CLIP Ethernet SIGNAL SIGNAL CONFIG DMP 128 Plus DIGITAL MATRIX PROCESSOR Extron DMP 128 Plus C AT Digital Matrix Processor Figure 1. AXI 02 AT Application Diagram AXI 02 AT • Introduction... -
Page 10: Installation And Operation
Free-standing — Set the AXI 02 AT on furniture as desired. • NOTE: To mount the AXI 02 AT using an Extron ZipClip 100 mounting kit, see the instructions provided with the kit. AXI 02 AT • Installation and Operation... -
Page 11: Rear Panel Connections
6-pole output. S/PDIF Audio Output — Two S/PDIF output channels mirror the analog outputs on a coaxial RCA connector. Attenuation applied to the analog outputs does not affect the S/PDIF output. AXI 02 AT • Installation and Operation... -
Page 12: Front Panel Features
USB Config Port — Connect a computer to this USB Mini-B port for device configuration and firmware updates. AT (PoE) Port — This RJ-45 port is used to connect the AXI 02 AT to a Dante network. The AT (PoE) port supports digital audio transport (AT), communication with the Dante network, communication with DSP Configurator for device configuration, and power over Ethernet (PoE). -
Page 13: Dsp Configurator Software
DSP Configurator Software In addition to front panel hardware controls, the AXI 02 AT can be configured with Extron DSP Configurator Software and a PC running Microsoft Windows 7 or newer. This section ® ® describes Extron DSP Configurator Software and covers the following topics: •... -
Page 14: Accessing The Dsp Configurator Help File
DSP Configurator Software features. DSP Configurator Software Workspace The DSP Configurator Software workspace for the AXI 02 AT contains a menu bar for accessing configuration tools and the main audio workspace for audio configuration (see figure 7). -
Page 15: Menu Bar
Copy — Copies the configuration of selected elements in the workspace to be pasted to other elements. Paste — Applies the cut or copied configuration of elements to the selected elements in the workspace. AXI 02 AT • DSP Configurator Software... -
Page 16: View
Network Audio Control — Opens Dante Controller by Audinate for routing audio over a Dante network (see Dante Controller on page 15). Dante Controller must be installed in order for the application to be opened. Visit www.extron.com to download Dante Controller. AXI 02 AT • DSP Configurator Software... -
Page 17: Window
Cancel — Cancels the preset recall and returns to the main workspace with the current configuration intact. • Delete — Deletes the selected preset from the configuration. Figure 9. Preset and Action Selection AXI 02 AT • DSP Configurator Software... -
Page 18: Live And Emulate Panel
NOTE: The Dante device and control computer must be on the same network. USB — Click the tab in the dialog box. Select the device from the drop-down menu. USB Devices NOTE: The host PC must be connected to the USB Config port. AXI 02 AT • DSP Configurator Software... -
Page 19: Disconnecting From A Device
DSP Configurator Software menu bar (see figure 13, Emulate ). Alternatively, select or press < > on the Tools >Disconnect from Device keyboard. Figure 13. Emulate Button Click to confirm (see figure 14, Figure 14. Confirm Disconnect Dialog Box AXI 02 AT • DSP Configurator Software... -
Page 20: Analog Outputs
Analog Outputs The AXI 02 AT has two AT Inputs and two analog outputs. The AXI analog outputs receive signal from the Dante network and are listed on the Dante network as Receiver channels. Renaming AT Input Channels AT Input channel names are read from the AXI Dante interface Receiver channel labels but can be changed from the DSP Configurator workspace while connected in Live mode. -
Page 21: Dante Controller
(see figure 15, www.extron.com Download On the left sidebar, click the link ( ). The Dante Controller Dante Controller page opens (see figure 16 on the next page). Figure 15. Accessing the Dante Controller Download Page AXI 02 AT • Dante Controller... - Page 22 Figure 17. Download Center, Dante Controller File If you choose to run the file, follow all prompts. If you saved the file, double-click the saved file to begin installation when ready. AXI 02 AT • Dante Controller...
-
Page 23: Axi Network Configuration In Dante Controller
AXI Network Configuration in Dante Controller Use a standard Ethernet cable to connect the AXI 02 AT to a network via the front panel AT (PoE) port (see figure on page 6) and power the device. Launch the Dante Controller software. Dante Controller auto-discovers all Dante devices on the network and advertises itself to allow communication over the network. -
Page 24: Renaming The Axi 02 At In Dante Controller
Renaming the AXI 02 AT in Dante Controller NOTE: Dante device naming can also be done via DSP Configurator (see under Tools on page 10). Ensure that the host PC and the AXI are connected to the same network. From the control computer start menu select: All Programs >... - Page 25 The new name is written to the AXI. Repeat as necessary for all devices. NOTE: The device name assigned in Dante Controller also applies to the device name recognized in DSP Configurator Software. Figure 22. Rename Device Confirmation Dialog Box AXI 02 AT • Dante Controller...
-
Page 26: Renaming A Receiver Or Transmitter
Receiver or Transmitter device name to expand it. The sign becomes a sign when the device is expanded (see figure 23, NOTE: The AXI 02 AT does not have any Transmitter channels. Figure 23. Expanded Receivers and Transmitters Renaming a Receiver... -
Page 27: Finding A Dante Device Ip Address
( ). The IP address is located in the column ( ). In the Primary Address example below, the IP address for the connected AXI 02 AT is 192.168.11.181 Figure 25. Device Info Page AXI 02 AT • Dante Controller... -
Page 28: Identifying A Physical Dante Device
A physical network is required to share Dante audio channels among Dante-enabled devices like the AXI 02 AT. Other devices capable of sending and receiving audio over a Dante network must be on the same physical network in order to communicate via Dante (see figure 26 for an example of a physical Dante network). -
Page 29: Dante Controller Operation
The AXI 02 AT does not have any Dante Transmit channels. The AXI 02 AT analog outputs are listed as Dante receivers because they receive digital audio from the Dante network and output that signal as analog audio via the analog outputs. -
Page 30: Disconnecting Inputs From Outputs
(subscriptions), device names, or channel labels, wait at least 5 seconds before disconnecting or powering down the devices. This ensures that the new information is properly saved to those devices. Device level configuration such as sample rates, latency, and clock settings are saved instantly. AXI 02 AT • Dante Controller... -
Page 31: Dante Troubleshooting
Choose a Dante Interface Icon Be certain the correct LAN connection is selected (the PC LAN port that is physically connected to the Dante network) and note the IP address. Figure 29. Configure Dante Interfaces Dialog Box AXI 02 AT • Dante Controller... -
Page 32: Restarting Dante Controller
Dante screen (see figure 30, Help • Select from the menu ( ) on the Dante screen. Contents Help • Press the < > keys on the computer keyboard. Shift+F1 Figure 30. Accessing the Dante Help File AXI 02 AT • Dante Controller... -
Page 33: Remote Control
Remote Control This section discusses the Simple Instruction Set (SIS ) commands that can be issued to ™ the AXI 02 AT via the front panel USB Config port. The following topics are discussed: • SIS Commands • Command and Response Table for SIS Commands DSP SIS Commands •... -
Page 34: Verbose Mode
Verbose Mode A USB connection is used to monitor changes that occur on the AXI 02 AT. For a session to receive change notices, the device must be set to verbose mode 1 or 3. In verbose mode 1 or 3, the device reports changes in messages that resemble tagged SIS command responses. -
Page 35: Command And Response Table For Sis Commands
View Verbose Mode X1$] (verbose 2 and 3 response) X1$] System reset Resets attenuation, and ZXXX (factory default) preset configuration. Network configuration is not affected. page NOTE: All variables used on this page are defined on AXI 02 AT • Remote Control... - Page 36 (verbose 2 and 3 response) X&] ExpdN View Dante channel EXPD name (verbose 2 and 3 response) X1!] ExpdA Presets Recall Preset NOTE: All variables used on this page are defined on the next page. AXI 02 AT • Remote Control...
-
Page 37: Dsp Sis Commands
(-12 dB). For a complete list of the analog output OID numbers and acceptable attenuation value ranges for each input and output, see Object ID (OID) Number and Value Range Tables on the next page. AXI 02 AT • Remote Control... -
Page 38: Command And Response Table For Dsp Sis Commands
Object ID (OID) Number and Value Range Tables NOTES: • Attenuation values should be entered as negative integers. • Attenuation values must be in 1 dB steps. Output Attenuation Value Range Output 1 to - 60000 Output 2 to - 60001 AXI 02 AT • Remote Control... - Page 39 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
