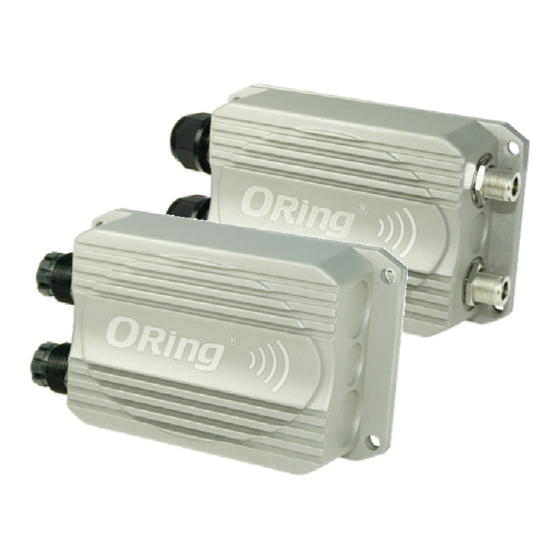

ORiNG IAP-W42X User Manual

Ieee 802.11 b/g/n access point
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

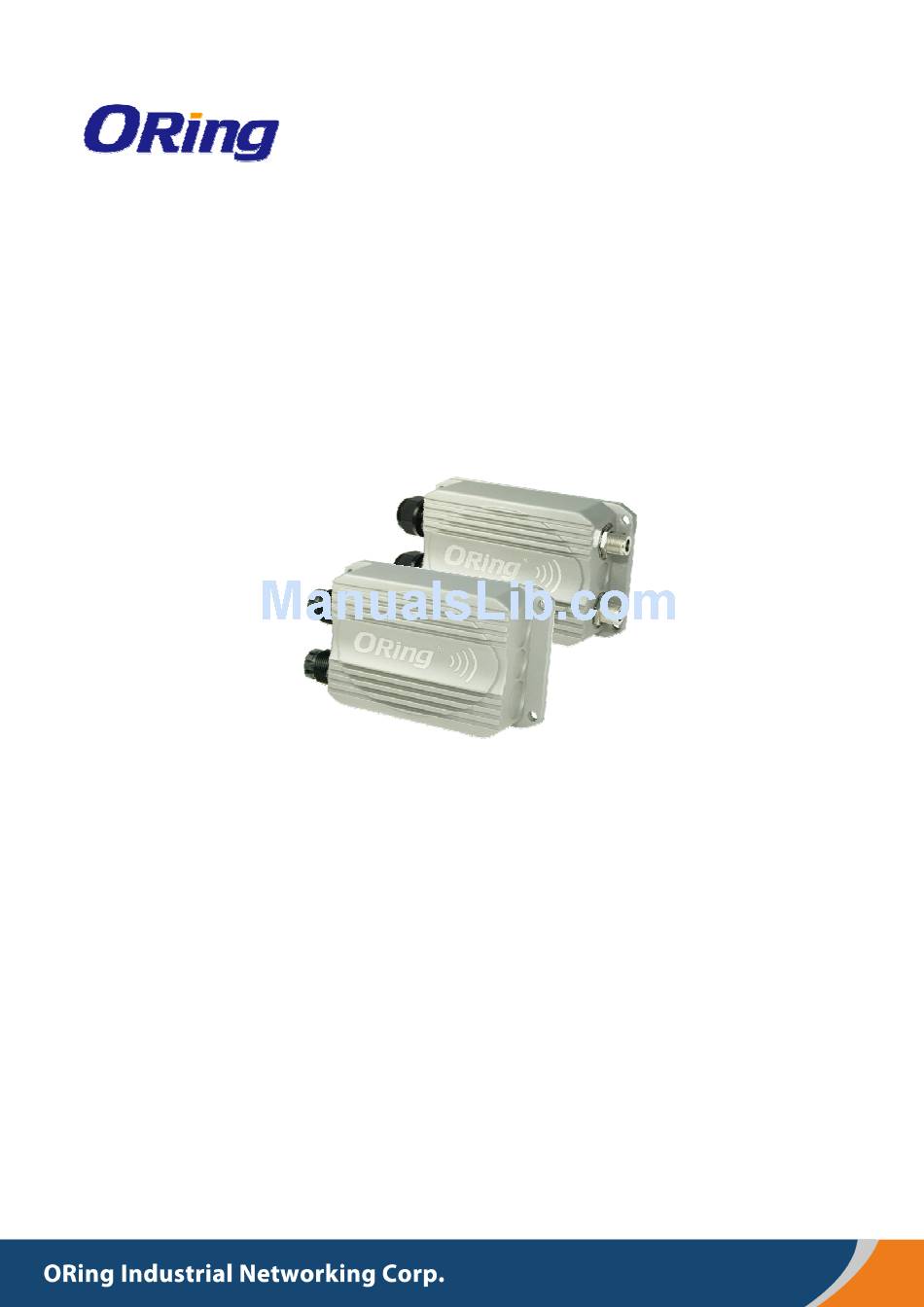

IAP-W42X/W420/W422
IEEE 802.11 b/g/n Access Point with

User Manual

Version 1.0
November, 2014
www.oring-networking.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAP-W42X and is the answer not in the manual?

Questions and answers

Related Manuals for ORiNG IAP-W42X

Summary of Contents for ORiNG IAP-W42X

  • Page 1: User Manual

    IAP-W42X/W420/W422 IEEE 802.11 b/g/n Access Point with User Manual Version 1.0 November, 2014 www.oring-networking.com...

  • Page 2: Contact Information

    ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor.

  • Page 3: Table Of Contents

    IAP-W420/W422 UserManual Table of Content Getting Started ....................4 About the IAP-W420/422 ....................4 Software Features ......................4 Hardware Features......................4 Hardware Overview..................6 Front Panel ..........................6 2.1.1 Ports and Connectors ......................6 2.1.2 Front Panel LEDs ......................6 Rear Panel ...........................7 Hardware Installation..................8 Wall Mounting........................9 Pole Mounting ........................10 Wiring..........................
  • Page 4 IAP-W420/W422 UserManual Logging ............................17 Time Synchronization ........................18 5.4.2 Administration ........................18 Router Password ...........................18 5.4.3 Time Synchronization.....................18 5.4.4 Backup/Flash Firmware....................19 Backup / Restore / Rest to default....................19 5.4.5 Reboot..........................20 Flash new Firmware........................20 Network ..........................20 5.5.1 Interfaces ........................21 LAN ..............................21 Interface – LAN ..........................22 5.5.2 Wifi ..........................26 Associated Stations List ........................34...

  • Page 5: Getting Started

    IAP-W420/W422 UserManual etting Started 1.1 About theIAP-W420/422 The IAP-W420 / W422 is a reliable IP-67 outdoor IEEE 802.11 b/g/n WLAN access point with two10/100Base T(X) Ethernet ports. It can support AP/AP-Client/Client Mode modes and is specifically designed for the toughest industrial environments. With the combination of an IP-67 design and superb management functionality, theseries provides a waterproof, dust-tight connection.
  • Page 6 IAP-W420/W422 UserManual Storage temperature: -40 to 85 Operating humidity: 5% to 95%, non-condensing Dimensions: 162(W)x 102(D)x 58(H) mm(6.38x 4.02x 2.28 inch.) (IAP-W420) / 162(W)x 102(D)x 48(H) mm(6.38x 4.02x 1.89 inch.)(IAP-W422) ORingIndustrial Networking Corp...

  • Page 7: Hardware Overview

    IAP-W420/W422 UserManual ardware Overview 2.1 Front Panel 2.1.1 Ports and Connectors The devices areequipped with the following ports and features on the bottom panel. Port Description 10/100Base-T(X)Ethernet 2 x 10/100Base-T(X)ports supporting auto-negotiation. One is PD port. port Reset button To restore the device configurations back to the factory defaults, press the Reset button for a few seconds.

  • Page 8: Rear Panel

    IAP-W420/W422 UserManual 2.2 Rear Panel IAP-422+ 1. N-type antenna connectors ORingIndustrial Networking Corp...

  • Page 9: Hardware Installation

    IAP-W420/W422 UserManual ardware Installation The device can be fixed to a pole or the wall using the supplied mounting kits. Beforeinstalling the device, make sure you have all of the package contents available and a PC with Microsoft Internet Explorer 6.0 or later, for using web-based system management tools.

  • Page 10: Wall Mounting

    IAP-W420/W422 UserManual 3.1 Wall Mounting IAP-W420 Wall-mounting Measurements (Unit = mm) IAP-W422 Wall-mounting Measurements (Unit = mm) To mount the device to the wall, simply insert a screw through the screw hole on the edge of ORingIndustrial Networking Corp...

  • Page 11: Pole Mounting

    IAP-W420/W422 UserManual the unit and tighten the screw for added stability. Instead of screwing the screws in all the way, it is advised to leave a space of about 2mm to allow room for sliding the device between the wall and the screws. 3.2 Pole Mounting You can mount the device to a pole using adjustable steel band straps included in the package.

  • Page 12: Wiring

    IAP-W420/W422 UserManual Wiring For pin assignments of the power connector, please refer to the following tables. 3.3.1 Power Supply The device is powered by an Ethernet cable via the PoE port, which is on the right hand side. Make sure the PoE port is connected with an RJ-45 cable and check if the power LED lights up after connection.

  • Page 13: Cables And Antenna

    IAP-W420/W422 UserManual ablesand ntenna 4.1 Ethernet Pin Definition The device provides two 10/100Base-T(X) Ethernet ports in RJ45 connector type. According to the link type, the AP uses CAT 3, 4, 5, 5e, UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs).

  • Page 14: Management

    IAP-W420/W422 UserManual anagement 5.1 Network Connection Before installing the device, you need to be able to access the devicevia a computer equipped with an Ethernet card or wireless LAN interface. To simplify the connection, it is recommended to use an Ethernet card to connect to a LAN. Follow the steps below to install and connect the deviceto PCs: Connect a computer to the device.Use either a straight-through Ethernet cable or cross-over cable to connect the LAN port of thedeviceto a computer.

  • Page 15: Status

    IAP-W420/W422 UserManual device) in the address box to access the webpage. A login window will popup where you can enter the default login name admin and password admin. For security reasons, we strongly recommend you to change the password. Click on Administrator> Passwordafter logging in to change the password.

  • Page 16: Realtime Graphs

    IAP-W420/W422 UserManual 5.3.3 Realtime Graphs Under the tab for Realtime Graphs, there are four tabs titled Load, Traffic, Wireless, and Connection. Load This tab will show the real-time CPU load of the device in chart which will be updated every few minutes.

  • Page 17: Wireless

    IAP-W420/W422 UserManual Wireless This tag will show the real-time status of wireless transmission in chart including wireless signal transmission and noises as well as the physical layer transmission rate. Connections This tag will show the real-time status of existing network connections of the device, including UDP, TCP, and other connections.

  • Page 18: System

    IAP-W420/W422 UserManual 5.4 System This section is about the System top-level tab. 5.4.1 System Properties General Setting This tab allows you to do general settings for the device including the host name and the time zone where the device is located in. You can use the local time of thebrowser time zone by clicking Sync with browser.

  • Page 19: Time Synchronization

    IAP-W420/W422 UserManual detailed messages, normal messages, warnings, and errors are logged. Normal: Common administrative messages of the server, warnings, and errors are logged. Warning: Problems that require attention and errors are logged. Time Synchronization The Network Time Protocol (NTP) synchronizes the clocks of computer systems across the Internet.

  • Page 20: Backup/Flash Firmware

    IAP-W420/W422 UserManual General Label Description Current system time Shows the current time of the device Update intervals (in Specify an interval for time synchronization. The seconds) synchronization protocol will adjust the clock according to the specified interval. Number of time measurements to perform before exiting. 0 Count of time measurements means to never stop.

  • Page 21: Reboot

    Flash new Firmware ORing launches new firmware constantly to enhance performance and functions.To upgrade firmware, download new firmware fromORing’s website to your PC and install it via Web upgrade. Make sure the firmware filematches the model of your device. It will take several minutes to upload and update the firmware.

  • Page 22: Interfaces

    IAP-W420/W422 UserManual Wifi settings. Interfaces tab shows an overview ofthe network interfaces. You can view and configure the interfaces of the local area network (LAN) zone as well as the wide area network (WAN) zone.Network address translation (NAT) occurs between these two network zones.

  • Page 23: Interface - Lan

    Choose which interfaces to be covered from (Ethernet Cover the following interface Adapter: eth0, eth1, Master ORing and Custom Interface). Clicking Edit will bring you to the following interface. Interface – LAN Common Configuration This section provides several configuration tags. This configuration file is responsible for defining switch VLANs, interface configurations and network routes.
  • Page 24 IAP-W420/W422 UserManual bytes and packets, and IPv4 address. This specifies the interface protocol.Static address is necessary if Protocol other devices obtain internet connection through this device. The interface protocol may be one of the following: Static address: static configuration with fixed address and netmask DHCP client: address and netmask are assigned by DHCP Unmanaged: unspecified protocol, PPP - PPP protocol - dialup...
  • Page 25 IAP-W420/W422 UserManual Label Description Check the box tomake sure that your new swap space is activated Bring up on boot while booting up computer Override MAC Allows you to specify a different MAC address other than the address router's original MAC address. This is useful if the ISP uses the MAC address of a router to identify a customer.

  • Page 26: Dhcp Server

    IAP-W420/W422 UserManual set as the Wireless Network. If no Interface is selected, all interfaces would be within the LAN zone. Firewall Setting Label Description Create/Assign This field chooses the firewall zone you want to assign to this firewall-zone interface. Select unspecified to remove the interface from the associated zone or fill out the create field to define a new zone and attach the interface to it.

  • Page 27: Wifi

    IAP-W420/W422 UserManual address, the default being 100. Sets the maximum number of leased addresses, the default being Limit 150. Leasetime States the expiry time of leased addresses, the default being 12h. Advanced Settings Label Description Dynamically allocates DHCP addresses for clients. If disabled, Dynamic DHCP only clients having static leases will be served.

  • Page 28: Wireless Mode

    IAP-W420/W422 UserManual Wireless Option This section contains the section tabs for General Setup, Wireless Security, MAC-Filter, and Advanced Settings. The options will vary with the wireless mode you use. Wireless Mode Access Point Mode This mode can be connected to Station mode and forwards all traffic to the network devices connected to the Ethernet devices of the Station.
  • Page 29 IAP-W420/W422 UserManual Label Description SSID – Station This will display the name of the wireless network that this station should be associated with. BSSID - Station This is the MAC address of the AP's radio. Encryption Chose an encryption method among the following options: Open, WEP Open System, WEP Shared Key, WPA-PSK, WPA2-PSK, and WPA-PSK/WPA2-PSK Mixed Mode.
  • Page 30 IAP-W420/W422 UserManual AP – Client Label Description Fill in the interface SSID. This will display the name of the wireless SSID – AP network that this access point (AP) is offering. Fill in the KEY value (Default is WPA2+AES. you can change to Pre-share Key - AP other option after interface is built) SSID –...

  • Page 31: Wireless Overview

    IAP-W420/W422 UserManual Wireless Overview This page shows the status of the available wireless networks. You can use the Scan button to scan for available wireless networks. This button is available if the device is operating as a Station. You can then select the network to connect to. You can also click on Enable to enable the wireless network or click on Edit to modify network settings.
  • Page 32 IAP-W420/W422 UserManual Label Description Mode Chooses the wireless standard used. 802.11g isan older standard while 802.11n is a newer standard that offers higherdata rates. The choice of 802.11g+n is a combination of 802.11g and 802.11n, and operates in the 2.4 GHz frequency band. HT Mode Allows the network to use both 20 MHz and 40 MHz bands.
  • Page 33 IAP-W420/W422 UserManual Little or no modification of the Fragmentation Threshold value is recommended as the default setting of 2346 is optimum for most wireless networks. RTS/CTS Threshold Determines the packet size of a transmission and, through the use of an access point, helps control traffic flow. The range is 0-2347bytes, or "off".
  • Page 34 IAP-W420/W422 UserManual Hide ESSID Hides the network name (ESSID) from being broadcast publicly. (This option is for a device operating as an AP.) WMM Mode Provides Quality of Service (QoS) features, checked by default. Wireless multimedia enables the classification of the network traffic into 4 main types, voice, video, best effort, and background, in decreasing order of priority.

  • Page 35: Associated Stations List

    IAP-W420/W422 UserManual Key: The pre-shared key (PSK) is the password for the wireless network. This may consist of 8 to 63 ASCII characters. This section tab is only available for a device operating as an AP. Label Description MAC-Address Filter Allows only devices with the listed MAC address to associate with this AP, or lets you block devices with the listed MAC address.
  • Page 36 IAP-W420/W422 UserManual A simple ping of the server checks to see if it’s responding.If there are serious server problems, a ping will either time out, or run very slowly. If you are able to find the server via DNS, but can’t get a ping response from it, this would point to an error with either the physical server, or a fault in the network that connects the client and server.
  • Page 37 IAP-W420/W422 UserManual ORingIndustrial Networking Corp...

  • Page 38: Technical Specifications

    IAP-W420/W422 UserManual echnical pecifications ORingWLAN Access Point IAP-W420 IAP-W422 Model Physical Ports 10/100 Base-T(X) Ports in RJ45 2(one port with PoE) Auto MDI/MDIX WLAN interface Operating Mode AP/Bridge/AP-Client/Client Antenna Connector Build-in 10dBi panel antenna 2 x External N-type antenna connector RadioFrequencyType OFDM IEEE802.11b: CCK, DQPSK, DBPSK...
  • Page 39 IAP-W420/W422 UserManual Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Safety EN60950-1 Warranty 3 years ORingIndustrial Networking Corp...

  • Page 40: Compliance

    IAP-W420/W422 UserManual Compliance FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning: The equipment complies with RF exposure limits set forth for an uncontrolled environment.
  • Page 41 IAP-W420/W422 UserManual and (2) this device must accept any interference, including interference that may cause undesiredoperation of the device. L'opération est soumise aux deux conditions suivantes: (1) cet appareil ne peut causer d'interférences,et (2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquerfonctionnement du dispositif.

This manual is also suitable for:

Iap-w420Iap-w422
